➤ For Sale: Euromac MTX INDEX Punching Machine

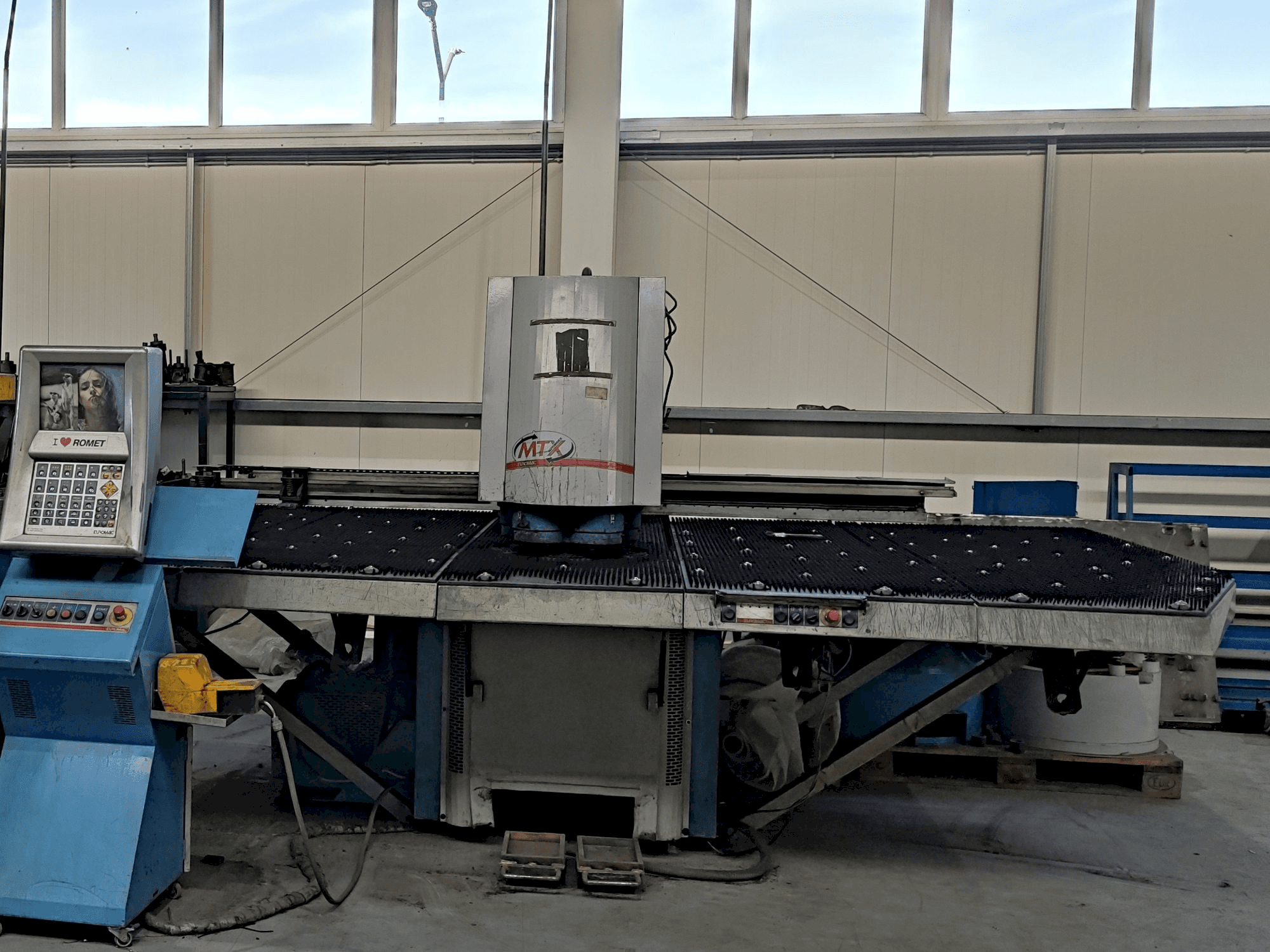

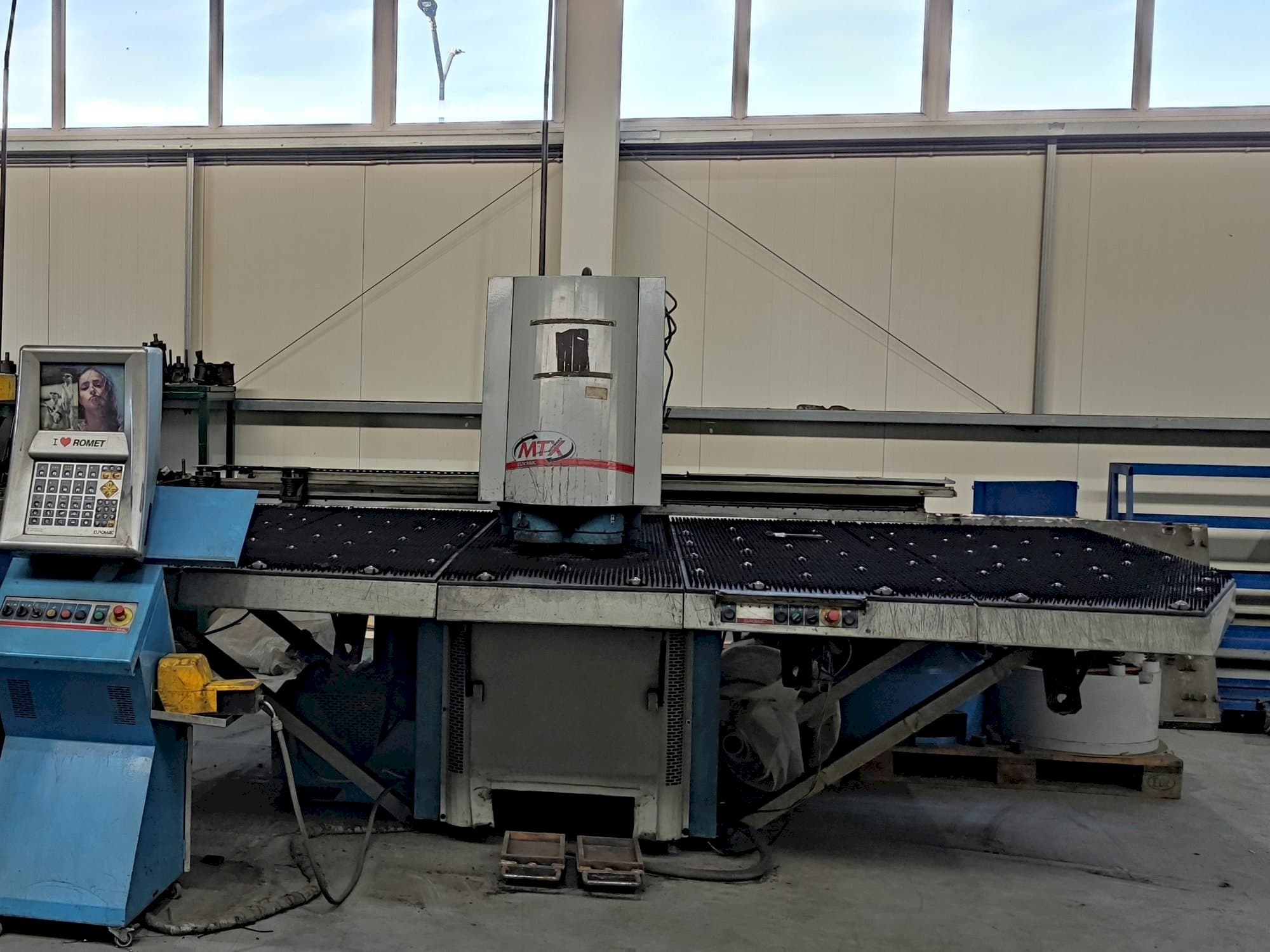

This EUROMAC MTX INDEX Punching machine was manufactured in the year 2005 in Italy. It is equipped with an Euromac TopPunch control unit. The machine has a punching force of 300 kN.

Overview

brand: Euromac
year: 2005
MODEL: MTX INDEX
application type: Punching
Location: Poland
machine type: Turret Punch Press
availability: Sold

Technical Information - Euromac MTX INDEX

General Data

Measurements width: 3970 mm
Measurements depth: 3430 mm
Machine weight: 8400 kg

Control Unit

Model: TopPunch

Main drive

Pressing force: 300 kN

Movement

X-AXIS Movement: 2250 mm
Y-AXIS Movement: 1250 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 7.5 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Automatic repositioning in x axis: up to 10000 mm
- - Number of d stations: 6 (including 3 index stations)
- - Max umber of tools in turret magazine: 6 pcs
- - Punching speed (nibbling mode): 780 1/min, punching speed (marking mode): 2000 1/min
- - Punching speed (20 mm stroke): 300 1/min
- - Maximum sheet thickness: 5 mm, minimum sheet thickness: 0. 5 mm
- - Maximum sheet weight: 150 kg
- - Brush table
- - Safety barriers
- - Usb port
Qualitative Machine Benefits:
- - Some tooling and accessories included, but we do not have any list yet.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
