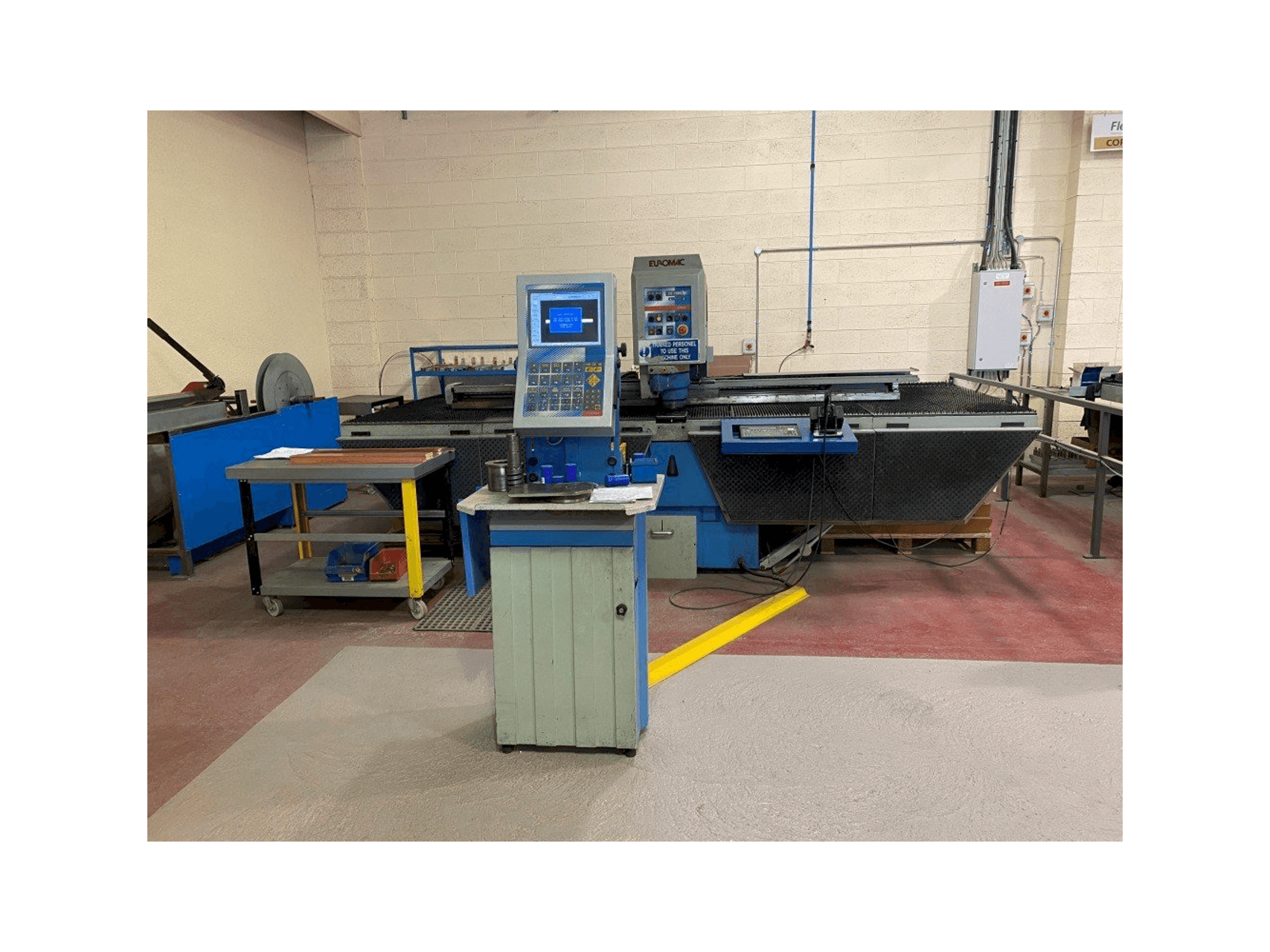

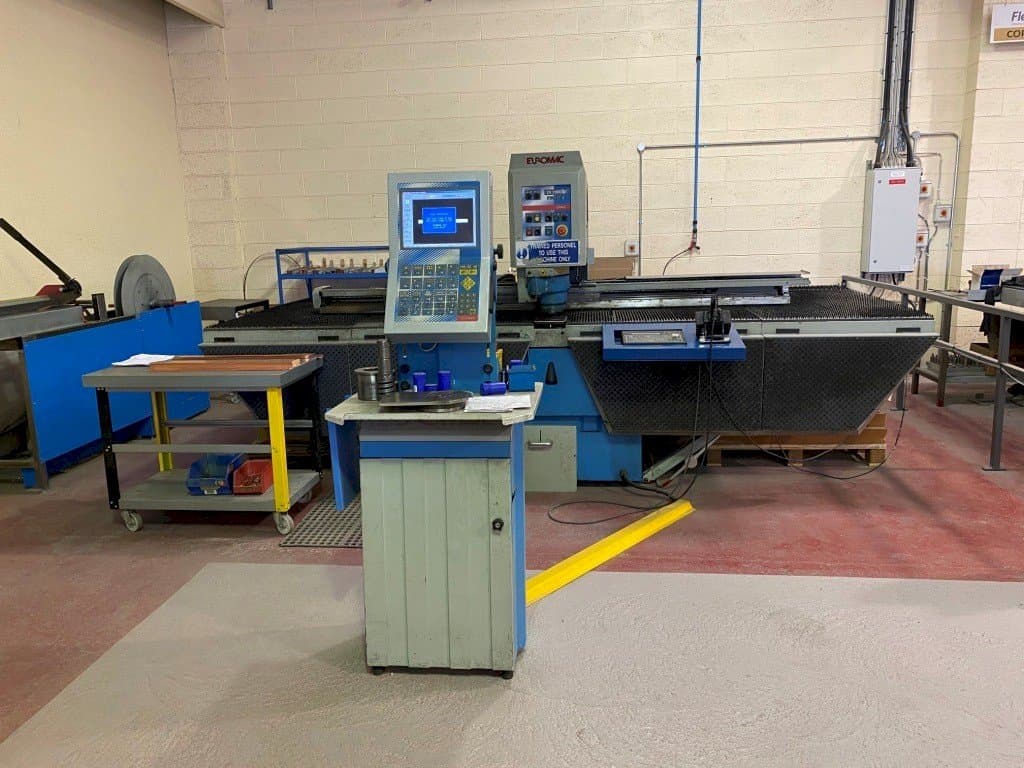

Euromac ZX 1250/30 Punching Machine

This Euromac ZX 1250/30 Punching Machine was built in Italy in 2001. This machine can work with a punching force of 300 kN with sheets up tp 6.4 mm of thickness. A 6 Station Multi-Tool is included.

Overview

brand: Euromac
year: 2001
MODEL: ZX 1250/30
application type: Punching
Location: Ireland
machine type: Turret Punch Press
availability: Sold

Technical Information - Euromac ZX 1250/30

General Data

Measurements width: 3250 mm
Measurements depth: 2260 mm
Measurements height: 1900 mm
Machine weight: 6050 kg

Control Unit

CNC main language: English

Main drive

Punching force: 300 kN
Maximum sheet thickness: 6.4 mm

Movement

X-AXIS Movement: 1250 mm
Y-AXIS Movement: 2000 mm

Workpiece

Workpiece x: 2260 mm
Workpiece y: 1400 mm
Workpiece weight: 80 kg

Tools

Number of index: 6
Number of stations: 1

Max Material thickness

Steel: 6.4 mm
Stainless steel: 4 mm
Aluminum: 5 mm

Additional Information

Machine history

Material type: Mildsteel/copper
material thickness: 2mm/6mm
End product: Electrical enclosures
Industries: Electrical panel building

Machine Benefits

Technical Machine Benefits:
- - Control software version 7. 01
- - Includes 1 x 6 station multi-tool
Qualitative Machine Benefits:
- - Well maintained machine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
