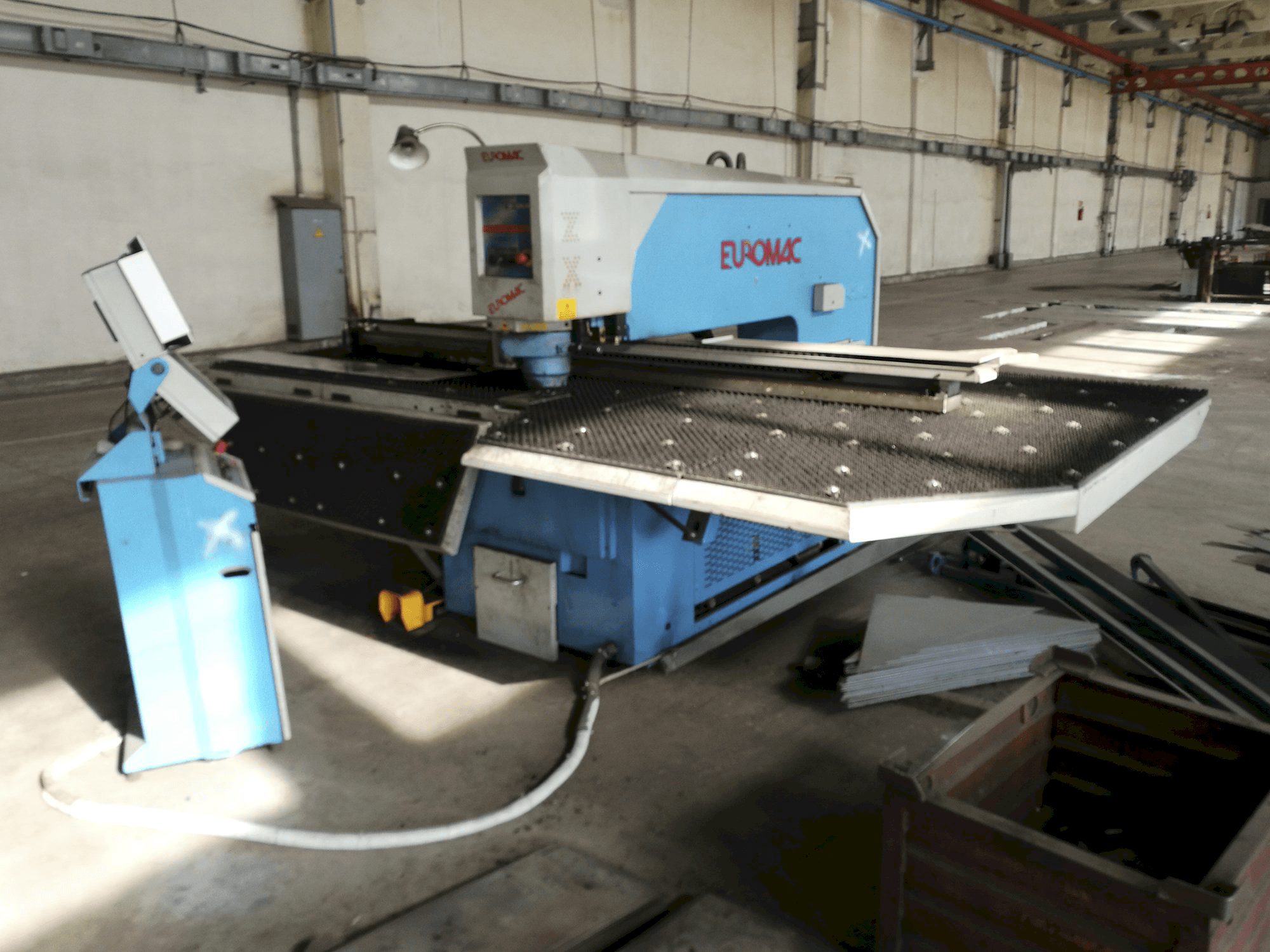

Euromac ZX 1250/30 Turret Punching Machine

This Euromac ZX 1250/30 Turret Punching Machine from 2002 was manufactured in Italy and has an overall working time of only 5500 production hours. Operated through an Elettronica PUNZONATR Celeron Control unit with 366 MHz, this machine has mainly worked with steel and aluminium sheets of up to 2.5 mm of thickness during the past.

Overview

brand: Euromac
year: 2002
MODEL: ZX 1250/30
production hours: 5500
application type: Punching
Location: Lithuania
machine type: CNC Punch Press
availability: Sold

Technical Information - Euromac ZX 1250/30

General Data

Measurements width: 4000 mm
Measurements depth: 3200 mm
Measurements height: 1900 mm
Machine weight: 6400 kg

Control Unit

Model: PUNZONATR Celeron
CNC main language: English
CNC language customizable: Yes

Movement

X-AXIS Movement: 2000 mm
Y-AXIS Movement: 1250 mm

Workpiece

Workpiece x: 2260 mm
Workpiece y: 1400 mm
Workpiece weight: 80 kg

Table

Outer length: 2220 mm
Outer width: 4000 mm

Max Material thickness

Steel: 6 mm
Stainless steel: 4 mm
Aluminum: 5 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
