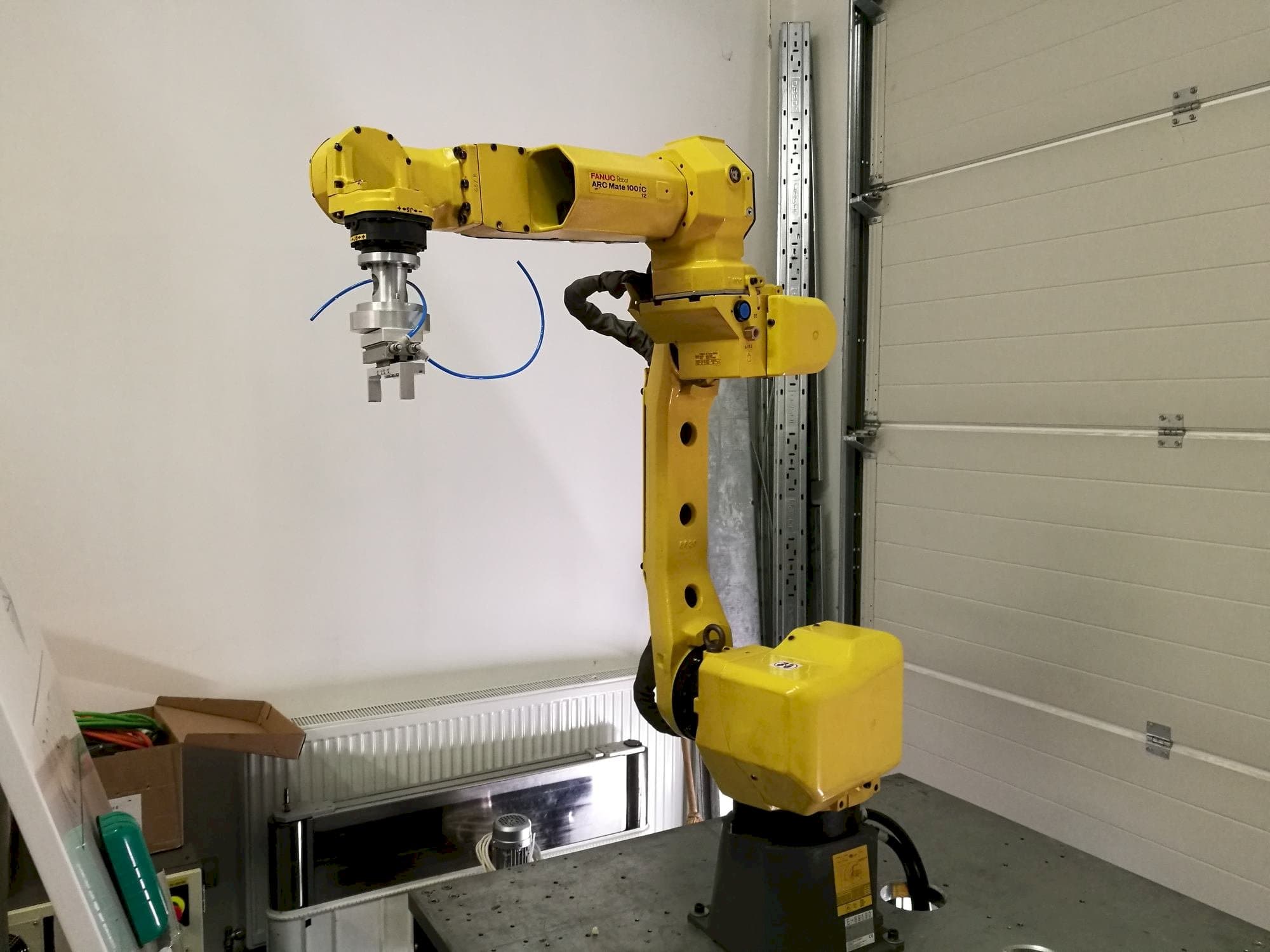

FANUC ARC Mate 100iC/12 Robot

This FANUC ARC Mate 100iC/12 Robot was manufactured in the year 2017 in Japan. It stands out for incorporating a hanging scaffolding suitable for rotating the mounted robot arm at 270° with a 7th axis expansion and drive system. The workpiece rotating machine includes: 2pcs L-shaped and 2-axis rotor with 1000 kg rotary load. It is equipped with a PLC control and a complete electrical cabinet. A welding robot cell is included. The robot arm is compatible with any welding equipment that communicates via Ethernet.

Overview

brand: FANUC
year: 2017
MODEL: ARC Mate 100iC/12
application type: Robotics
Location: Hungary
machine type: Robot Arm
availability: Sold
control unit brand: FANUC

Technical Information - FANUC ARC Mate 100iC/12

General Data

Machine weight: 130 kg

Control Unit

Model: System R30iB
CNC main language: English
Brand: FANUC

Main drive

Number of axis: 6
Max payload: 12 kg
Max reach: 1420 mm

Movement

AXIS 1 Movement: 340 °
AXIS 2 Movement: 250 °
AXIS 3 Movement: 447 °
AXIS 4 Movement: 380 °
AXIS 5 Movement: 280 °
AXIS 6 Movement: 540 °

Additional Equipment

- welding robot cell

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

HU-ROB-FAN-2017-00001.pdf
