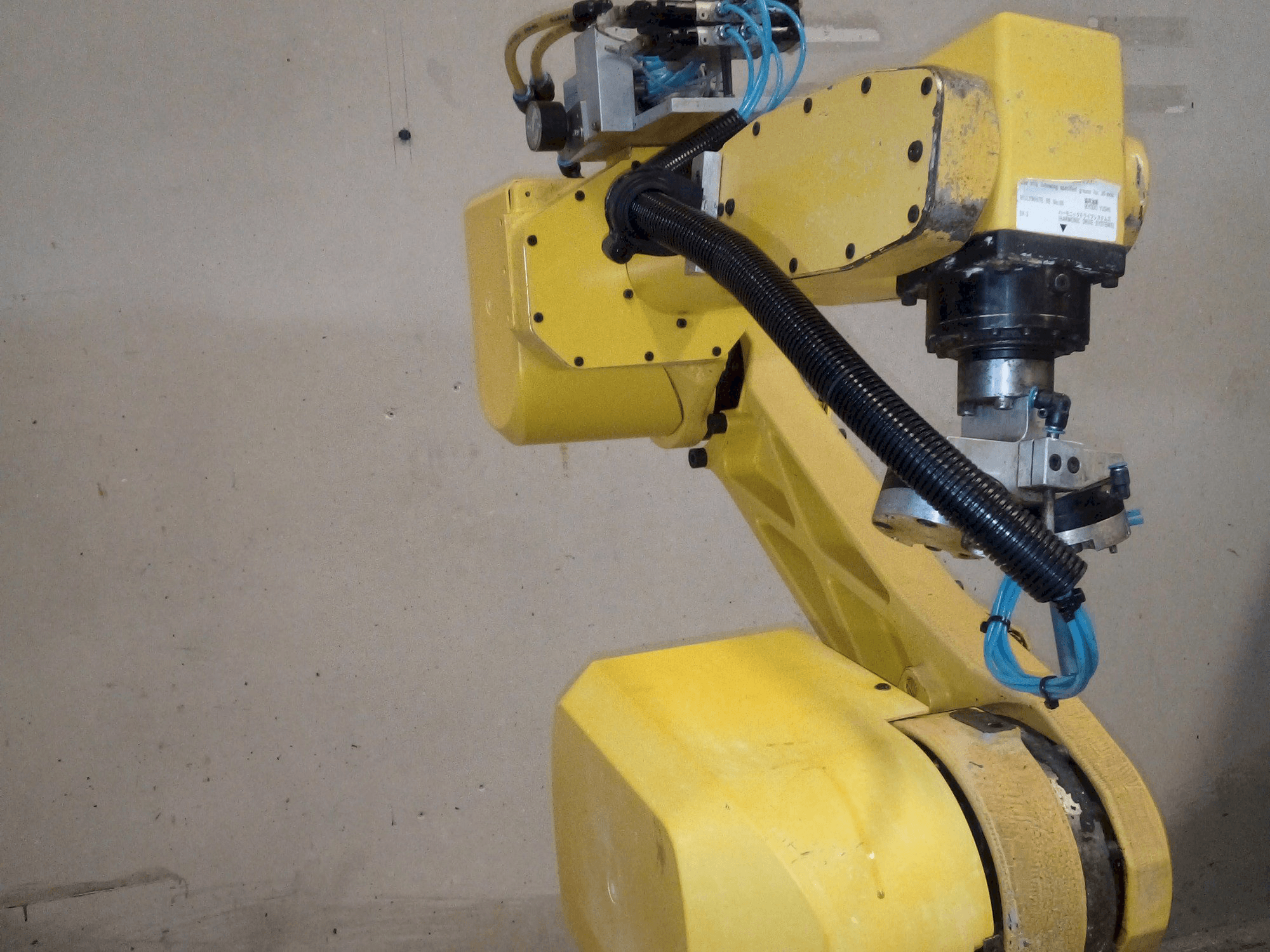

This FANUC M-6iB Robot was built in the year 2005. This 6 axis robot stands out for being able to operate on 4 mounting positions.

Overview

brand: FANUC
year: 2005
MODEL: M-6iB
application type: Robotics
Location: Spain
machine type: Robot Arm
availability: Sold

Technical Information - FANUC M-6iB

General Data

Machine weight: 139 kg

Main drive

Range payload: 12 kg
Max payload: 6 kg
Max reach: 1373 mm

Movement

AXIS 1 Movement: 340°
AXIS 2 Movement: 250°
AXIS 3 Movement: 315°
AXIS 4 Movement: 380°
AXIS 5 Movement: 280°
AXIS 6 Movement: 720°

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Mounting positions: floor, angle, wall inverted
- - Special application environments: ip67 forearm and wrist
- - Ip54 lower body

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
