- FANUC Robocut ALPHA -1iA Erosion Machine

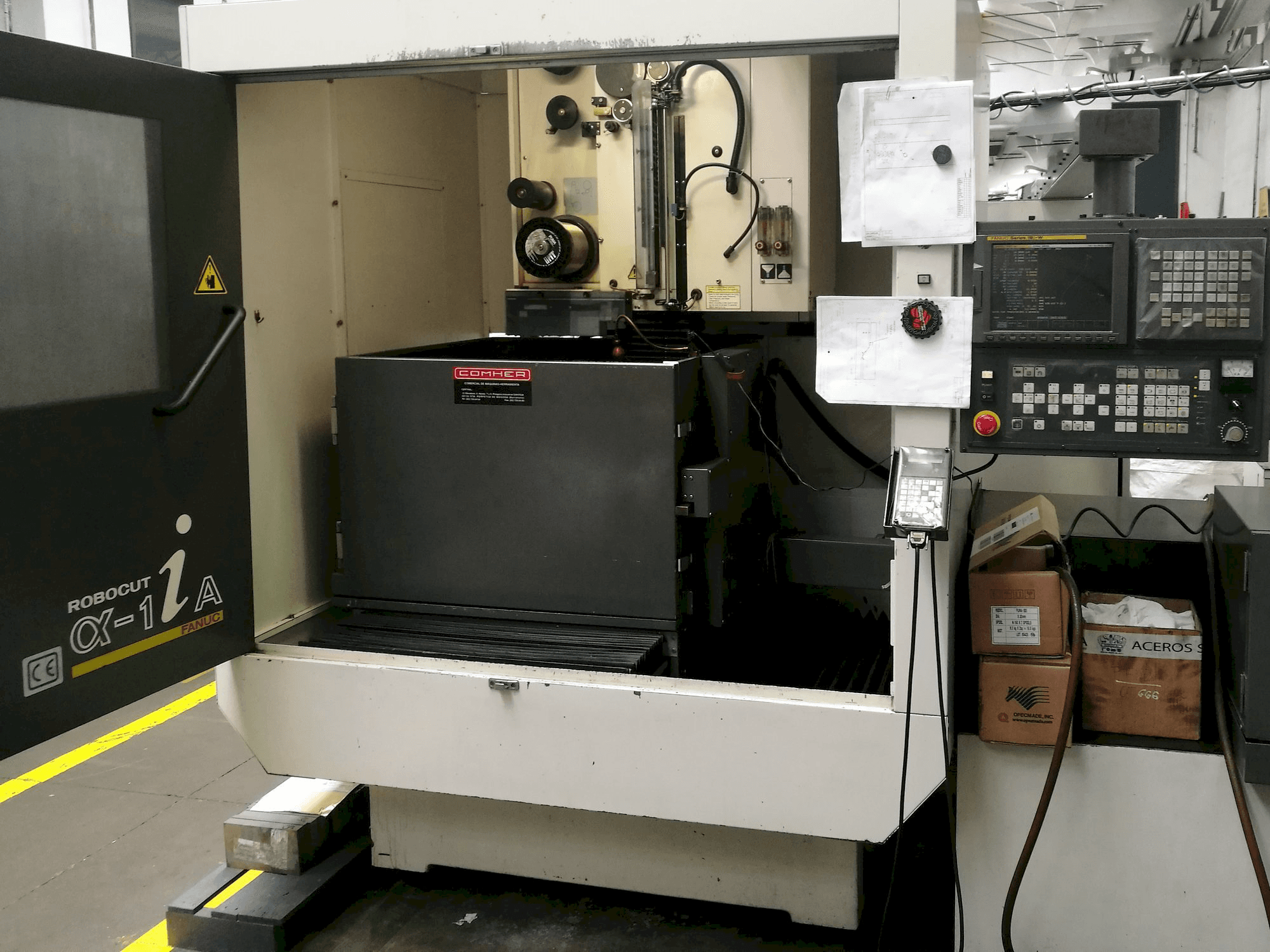

This FANUC Robocut ALPHA -1iA Erosion Machine was manufactured in 1999 in Spain and has been working for 10000 hours since then. Operated through a FANUC 18i-W Control unit, this machine presents a very good status.
Overview
- brand: FANUC
- year: 1999
- MODEL: Robocut ALPHA -1iA
- production hours: 10000
- application type: EDM
- Location: Spain
- machine type: Wire EDM Machine
- availability: Sold
- control unit brand: FANUC
Technical Information - FANUC Robocut ALPHA -1iA
General Data
- Measurements width: 1500 mm
- Measurements depth: 2170 mm
- Measurements height: 2060 mm
- Machine weight: 2700 kg
Control Unit
- Brand: FANUC
- Model: 18i-W
- CNC main language: English
- CNC language customizable: Yes
Main drive
- Wire diameter: 0.1 - 0.3
Movement
- X-AXIS Movement: 520 mm
- Y-AXIS Movement: 370 mm
- Z-AXIS Movement: 410 mm
Workpiece
- Workpiece x: 520 mm
- Workpiece y: 370 mm
- Workpiece z: 410 mm
- Workpiece weight: 1000 kg
Table
- Outer length: 520 mm
Media
- Main electronic connection: 200 V
- Power consumption: 13 kVA
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
