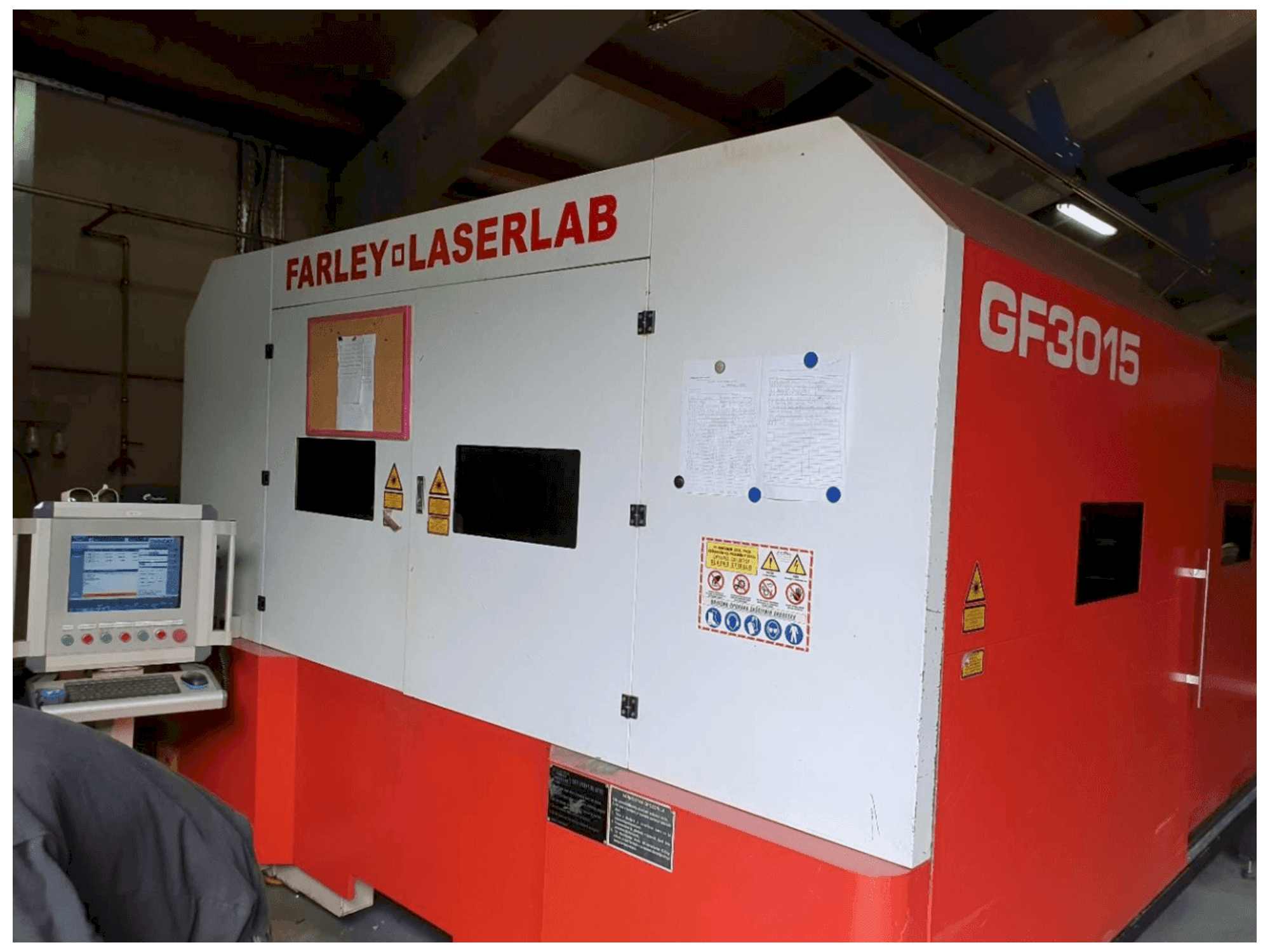

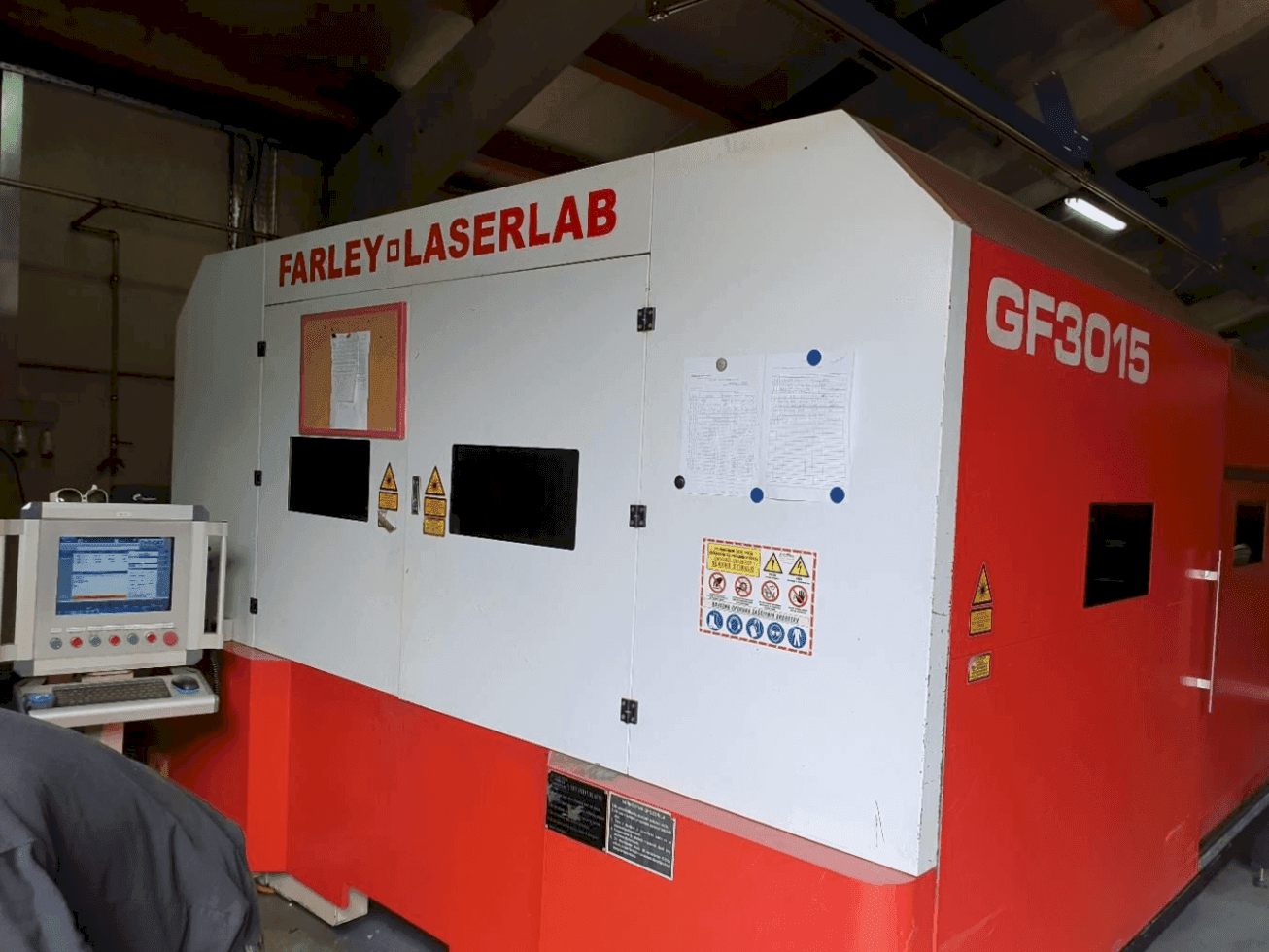

Farley Laserlab Ht Gf 3015 Fiber Laser Cutting

This Farley Laserlab Ht Gf 3015 Fiber Laser Cutting Machine was manufactured in 2015. This machine operates through Beckhoff Industrial Automation C6600 + etherCat Control unit. Its output cutting power reaches 1000 W. The machine includes consumables such as protective lens for cutting head, ceramic protective rings and cutting head nozzels, single and double type. It has been regularly cleaned and consumable parts have been replaced. This machine has EU - German components, IPG source and Precitec cutting head.

Overview

brand: Farley Laserlab Ht
year: 2015
MODEL: Gf 3015 Fiber
application type: Cutting
Location: Slovenia
machine type: Fiber Laser Cutting Machine
availability: Sold
control unit brand: BECKHOFF

Technical Information - Farley Laserlab Ht Gf 3015 Fiber

General Data

Measurements width: 2300 mm
Measurements depth: 4500 mm
Measurements height: 1500 mm
Machine weight: 4000 kg

Control Unit

Model: Industrial Automation C6600 + etherCAT
Brand: BECKHOFF

Main drive

Laserpower: 1000 W KW

Table

Outer length: 3000 mm
Outer width: 1500 mm

Max Material thickness

Steel: 12 mm
Stainless steel: 5 mm
Aluminum: 2 mm

Media

Power consumption: 1000 W

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Chiller
- - Industrial pc (beckhoff): o usb, ethernet (rj45), 15'' lcd monitor, keyboard, mouse
- - Wired remote control unit for cutting head position
- - Head equipped with position-locating laser to display current position on working area
- - Protective lens for cutting head
- - Ceramic protective rings for cutting head
- - Cutting head nozzles, single and double type
- - Maintenance log kept since machine delivery
- - Regular cleaning and replacement of spent consumable parts
- - Crucial machine components serviced in 2019 with oem: cutting head – precitec germany and source- ipg germany
Qualitative Machine Benefits:
- - Fiber laser machine
- - Laser source + chiller
- - Electrical cabinet
- - Documentation (usage instructions, layout drawing)
- - Stock consumables

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
