FERROMATIK - Maxima 350-2290DE-INJ-FER-2007-00003

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used FERROMATIK Maxima 350-2290 For Sale | gindumac.com

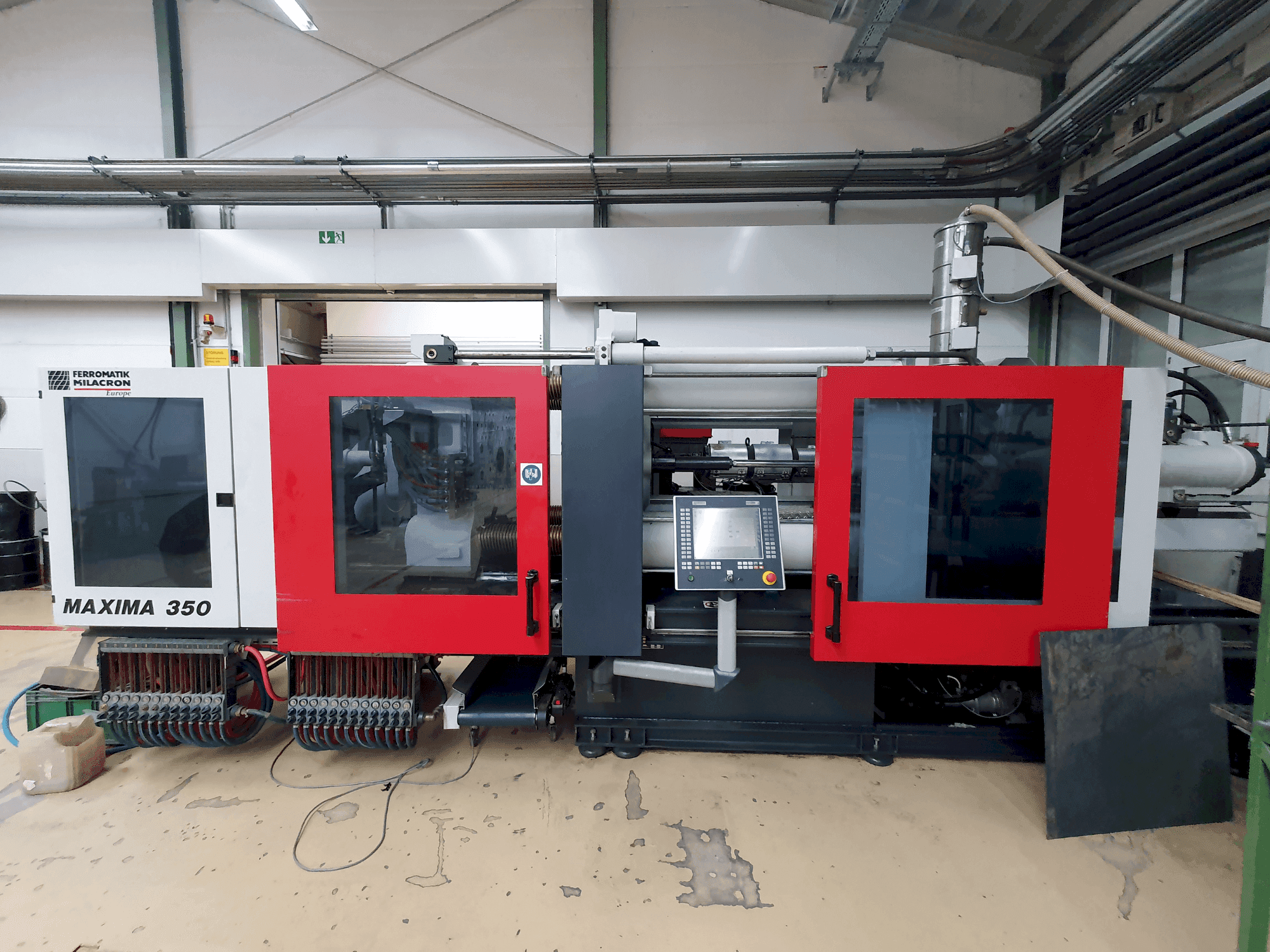

This FERROMATIK Maxima 350-2290 was manufactured in 2007. A robust hydraulic injection moulding machine featuring a clamping force of 3500 kN and a screw diameter of 70mm. It includes a hydraulic core pull, cooling water battery with 12 control circuits, and an energy chain for up to 15 circuits. Ideal for precision molding, the FERROMATIK Maxima 350-2290 machine we have for sale is a significant asset for any production line. Contact us for further details regarding this hydraulic injection moulding machine.

Overview

brand: FERROMATIK
year: 2007
MODEL: Maxima 350-2290
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - FERROMATIK Maxima 350-2290

Control Unit

Model: MOSAIC

Main drive

Distance between bars: 710 x 710 mm

Injection Unit

Screw diameter: 70 mm

Clamping unit

Clamping force: 3500 kN

Additional Equipment

- Special centring with centring ring diameter 175mm H8 / WAB // Special centring with centring ring diameter 110mm H8 / WAF
- Nozzle radius / bore R 15 / B 4.0
- Hydraulic core pull Nominal size NG 10
- Cooling water battery with 12 control circuits Wittmann type 301 (30 l/min per circuit)
- MS thread G3/8’ Nozzles: 13mm nozzles screwed in
- Energy chain for a maximum of 15 circuits (=30 hoses with outer diameter 20mm) on opposite operating side // Energy chain for max. 9 circuits (=18 hoses with outer diameter 20mm) on operating side
- Hopper swivelling and emptying device
- Bypass filter (3my)
- Oil cooler up to water flow temperature <= 32°
- Centring in both clamping plates diameter 160mm

Additional Information

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
