Finn-Power - A 5 FHU-PUN-FIN-2002-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

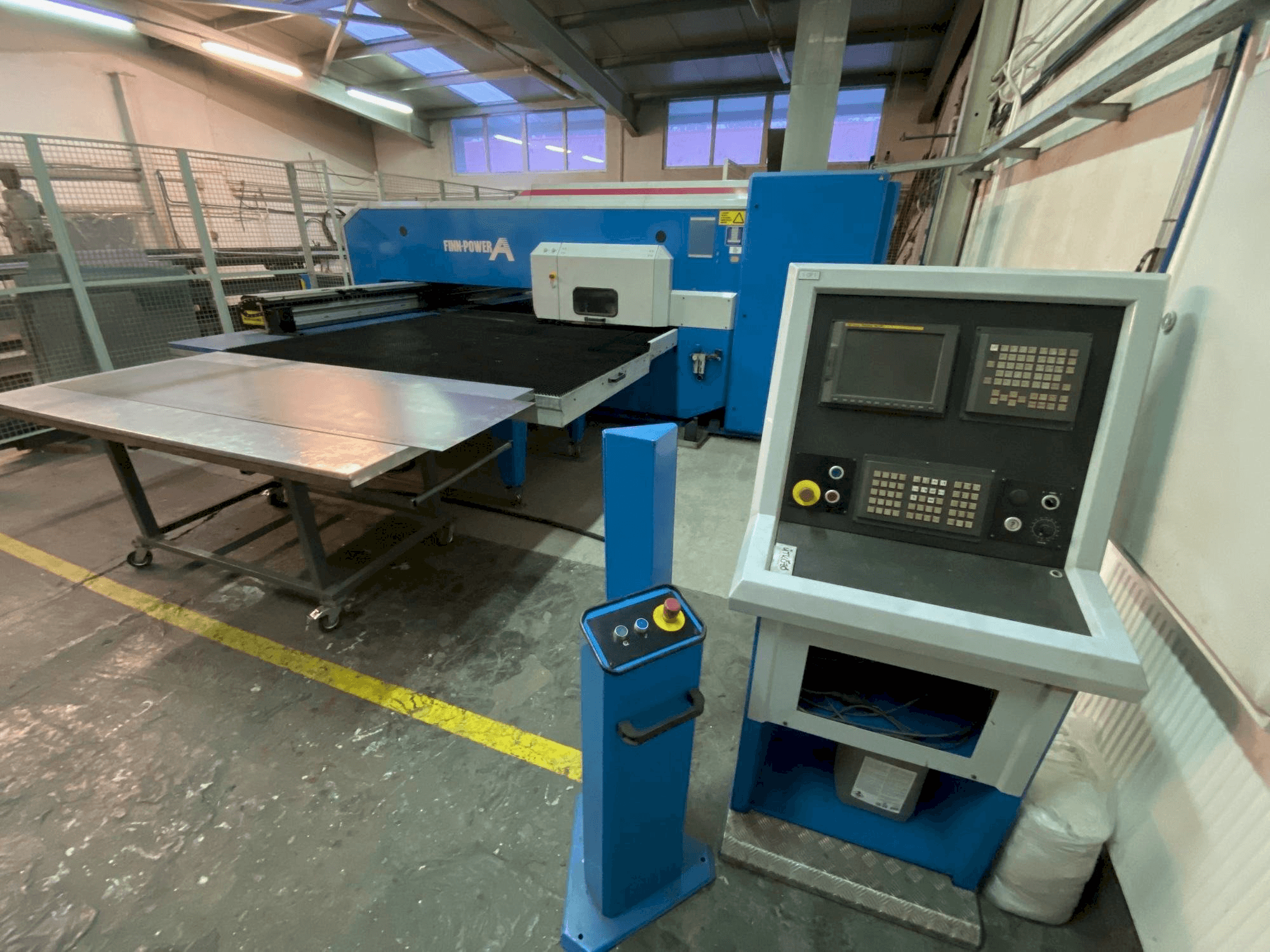

This Finn-Power A 5 F Punching Machine was built in the year 2002 in Finland. It has a record of approximately 8000 working hours. This punching machine can work with a punching force 230 kN and a punching diameter 89 mm. It has continuous yearly maintenance by Finnpower/Primapower.

Overview

brand: Finn-Power
year: 2002
MODEL: A 5 F
production hours: 8000
application type: Punching
Location: Hungary
machine type: CNC Punch Press
availability: Sold

Technical Information - Finn-Power A 5 F

General Data

Measurements width: 5600 mm
Measurements depth: 5400 mm
Measurements height: 2500 mm
Machine weight: 13500 kg

Main drive

Pressing force: 3 kN
Punching force: 230 kN
Maximum sheet thickness: 8 mm
Max Sheet length: (X - Y) 2530 MM X 1270 MM

Movement

X-AXIS Rapid traverse: 2584 MM
Y-AXIS Rapid traverse: 1317 MM

Table

Max punching diameter: 89 mm

Turret

Number of tool slots: 20 pcs
Rotating tools: Yes

Tools

Number of stations: std. 2 pcs (max. 10 pcs)
Number of clamps: PNEUMATIC 2 PCS (OPTIONAL 3 PCS)

Media

Main electronic connection: 3 X 400 V
Power consumption: 24 kW
Air pressure: 6 BAR
Oil tank: 330 l

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 100 - 200 pcs tools for 1 - 2mm aluminum and stainless steel
Qualitative Machine Benefits:
- - Continuous yearly maintenance by finnpower/primapower

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
