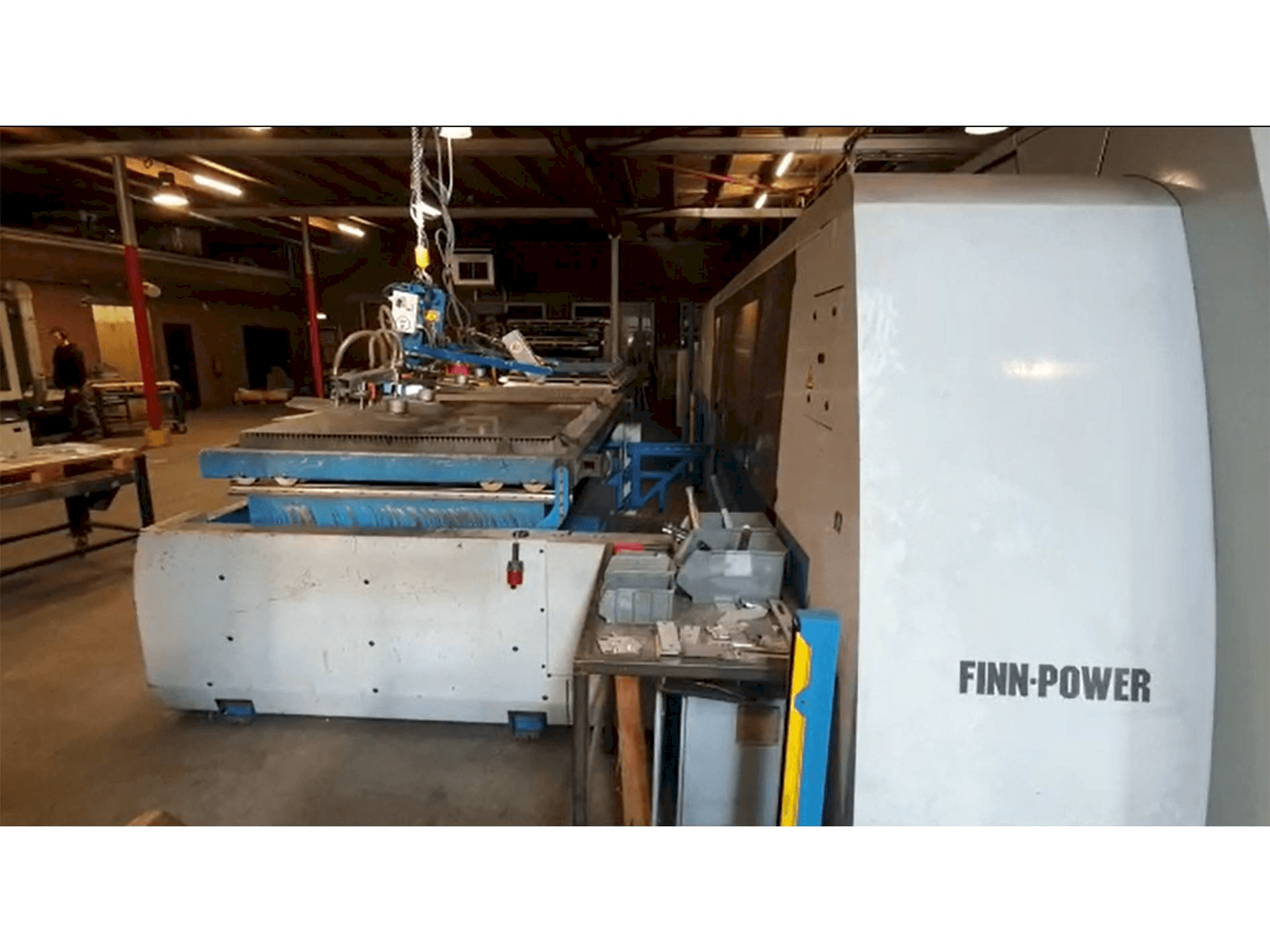

Finn-Power L6 4kW CO2 Laser Cutting Machine

This Finn-Power L6 4kW CO2 Laser Cutting Machine was manufactured in the year 2006 in Finland. It has been working for 42000 hours. This machine is equipped with a Siemens sinumerik 840D control unit and it can work with a laser power of 4 KW.

Overview

brand: Finn-Power
year: 2006
MODEL: L6 4kW CO2
production hours: 42000
application type: Cutting
Location: Netherlands
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - Finn-Power L6 4kW CO2

General Data

Measurements width: 2560 mm
Measurements depth: 9503 mm
Measurements height: 2672 mm
Machine weight: 24500 kg

Control Unit

Model: sinumerik 840D
Brand: SIEMENS

Main drive

Laserpower: 4 kW

Movement

X-AXIS Movement: 3330 mm
Y-AXIS Movement: 1565 mm
Z-AXIS Movement: 126 mm

Table

Outer length: 9505 mm
Outer width: 6315 mm

Max Material thickness

Steel: 20 mm
Stainless steel: 12 mm
Aluminum: 8 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Sheet size: 3074 x 1565mm
- - Max. Cutting area: 3048 x 1524mm
- - Max. Sheet weight: 800kg
- - Min. Material thickness: 0,5mm
- - Max. Positioning speed, simultaneously: 300 m/min
- - Max. Cutting speed: 60m/min
- - Acceleration: > 2 g, each axis

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
