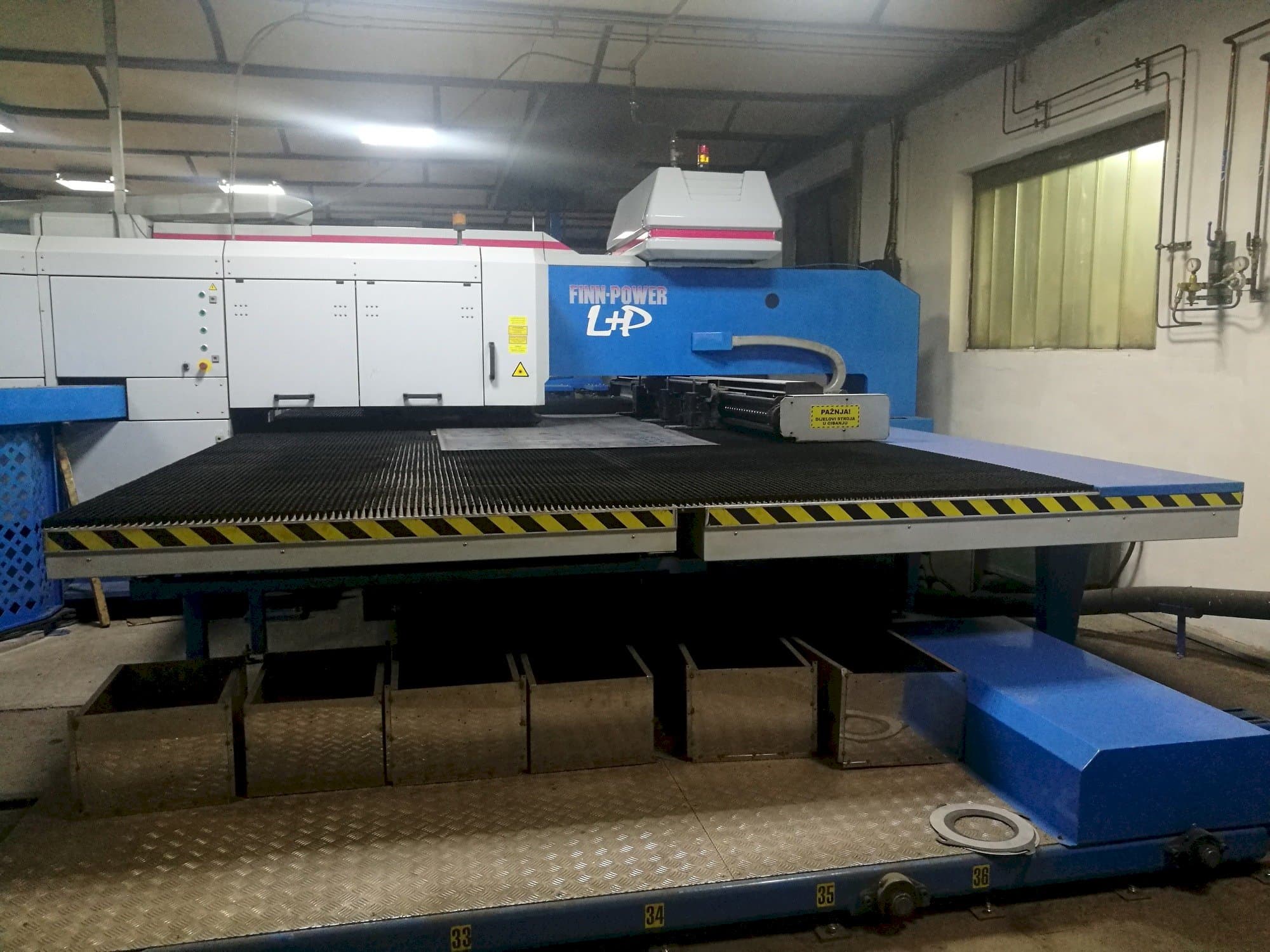

Front view of Finn-Power LP6 SBTV  machine

Finn-Power - LP6 SBTVHR-LAS-FIN-2000-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Finn-Power LP6 SBTV Laser Punch Combination Machine was manufactured in Finland in 2000 and has been working for 9161 punching hours and 8600 laser hours respectively. Operated through a SIEMENS 840D Control unit, this machine has mainly been working with steel up to 2mm of thickness during the past. It is in a very good state due to a retrofit in 2012. Several additional equipment such as a chiller and filter unit, along with a sheet loader are included.

Overview

  • brand: Finn-Power
  • year: 2000
  • MODEL: LP6 SBTV
  • application type: Cutting
  • Location: Croatia
  • machine type: CO2 Laser Cutting Machine
  • availability: Sold
  • control unit brand: SIEMENS

Technical Information - Finn-Power LP6 SBTV

General Data

  • Measurements width: 13500 mm
  • Measurements depth: 9000 mm
  • Measurements height: 3500 mm
  • Machine weight: 17000 kg

Control Unit

  • Model: 840D
  • CNC main language: English
  • CNC language customizable: Yes
  • Brand: SIEMENS

Main drive

  • Laserpower: 2.5 kW
  • Laser type: CO2
  • Punching force: 300 kN
  • Maximum sheet thickness: 8 mm
  • Laser brand: Rofin Triagon

Movement

  • X-AXIS Movement: 2584 mm
  • Y-AXIS Movement: 1560 mm

Workpiece

  • Workpiece x: 3061 mm
  • Workpiece y: 1528 mm
  • Workpiece weight: 200 kg

Tools

  • Number of index: 5
  • Number of stations: 20
  • Slots in storage: 20

Max Material thickness

  • Steel: 8 mm

Media

  • Main electronic connection: 400 V
  • Power consumption: 30 kVA
  • Chip conveyor: Yes
  • Internal cooling: Yes

    Additional Equipment

    • - Sheet loader Lift master (3000x1500)
    • - Automatic sorting units (6 pcs)
    • - 1 Multitool MT6A
    • - Chiller unit
    • - Filter unit

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
