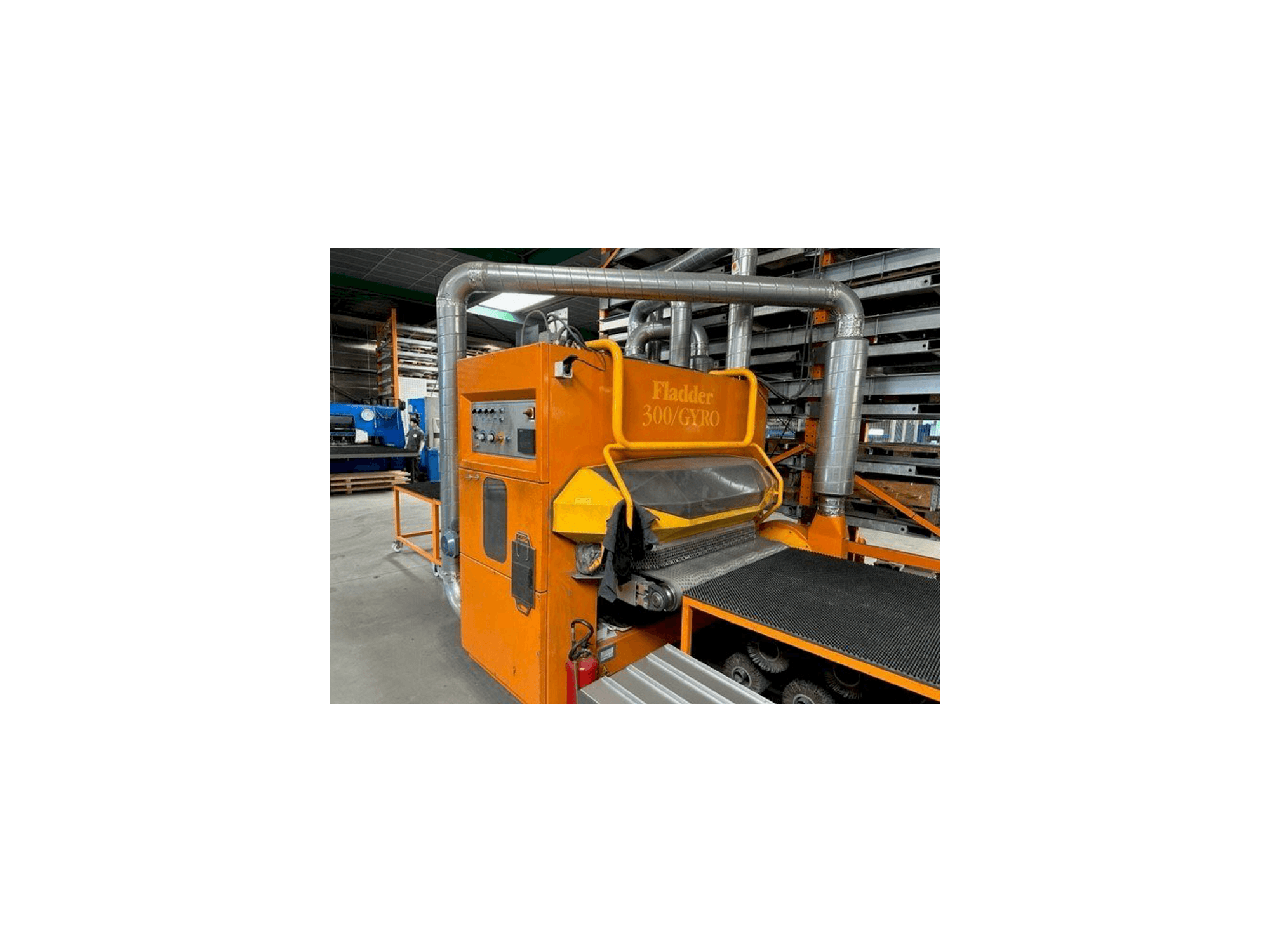

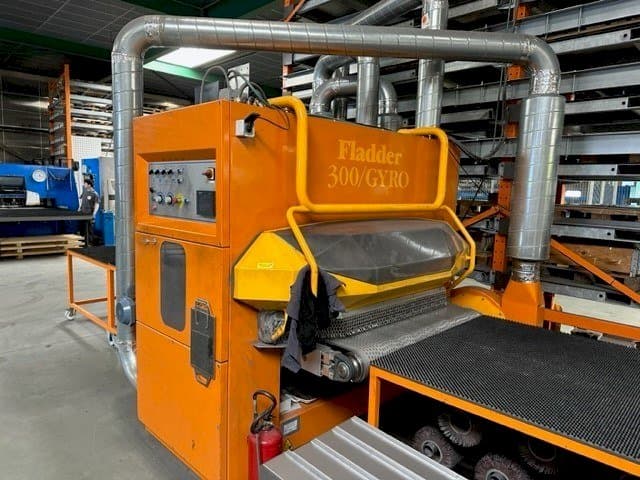

Fladder 300/GYRO-1300 VAC Deburring machine

This Fladder 300/GYRO-1300 VAC Deburring machine was manufactured in the year 2014 in Denmark and has 3217 hours. The machine has a Vacuum belt of 1300 mm.

Overview

brand: Fladder
year: 2014
MODEL: 300/GYRO-1300 VAC
production hours: 3217
application type: Other Sheet Metal Machinery
Location: Netherlands
machine type: Deburring Machine
availability: Sold

Technical Information - Fladder 300/GYRO-1300 VAC

General Data

Measurements width: 2300 mm
Measurements depth: 2070 mm
Measurements height: 2210 mm
Machine weight: 2300 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Diameter of 400 mm
- - Grit size: p100, p150, p180, p220 or p320.
- - Density of abrasives:standard: 7, 9 or 11 mm.
- - Working height: 850 mm
- - Working width, max. : 1300- 1600 mm
- - Vacuum belt: 1300 mm
- - Max. Work piece height: 100 mm
- - Infeed speed: 0. 3 - 10. 0 m/min
- - Spindles lock-ittm: 6 x Ø100x350 mm 6 x Ø200x250 mm
- - Dust collecting: 5000 m3/h, 500 pa
Qualitative Machine Benefits:
- - Conveyor belt
- - Vacuum system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
