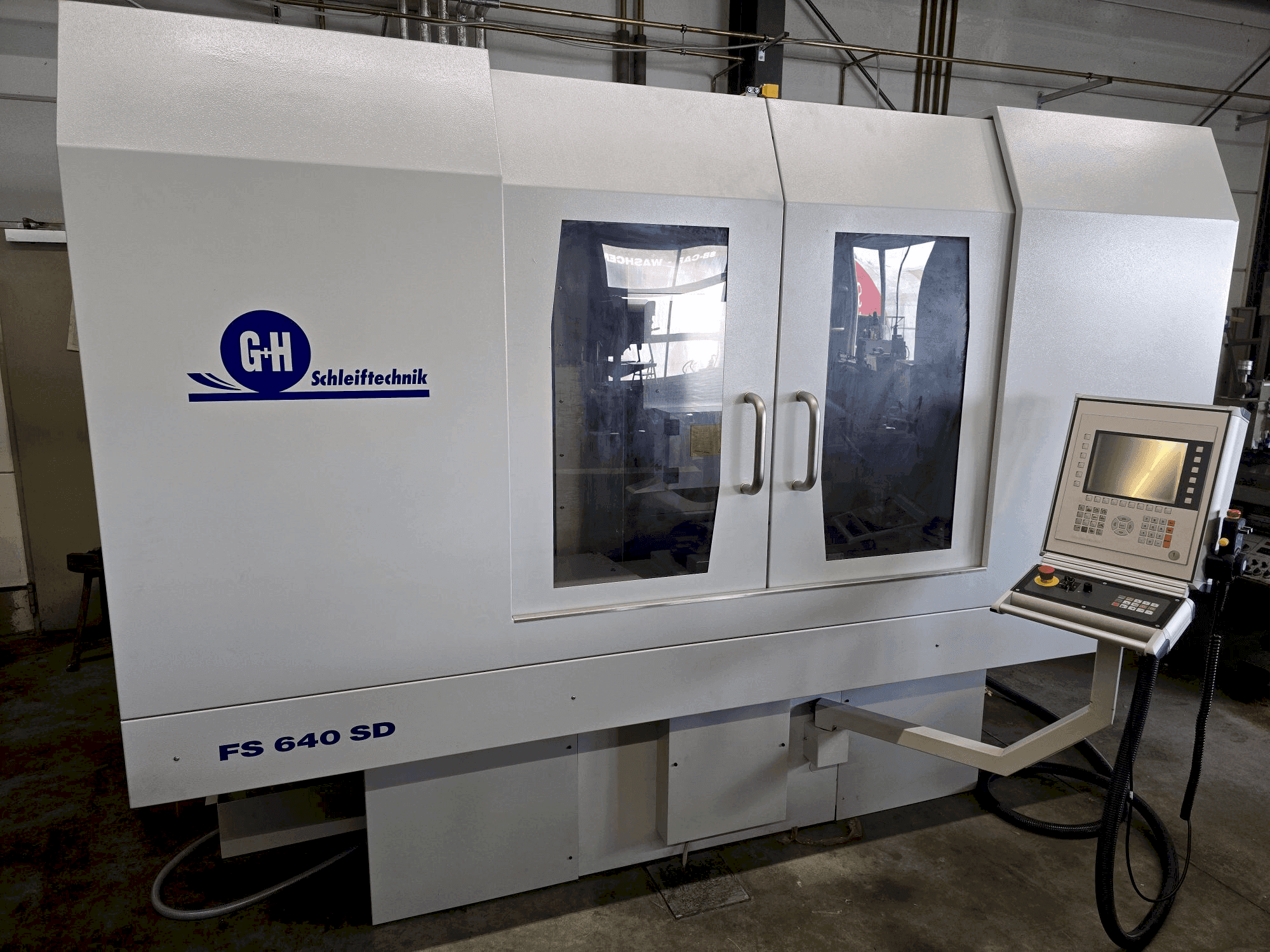

GEIBEL & HOTZ - FS 640 SDDE-GRI-GEI-2024-00001

Additional Equipment

• - Integrated folding dresser with 3 variants, including diamond dressing tools
• - Software for various grinding wheel contours and lateral dressing of the wheel
• - Universal Paper Band Filter System: Tank capacity: approx. 140 l / Tank capacity: approx. 140 l / Dimensions: 1220 x 730 mm / Dimensions: 1220 x 730 mm / Pump: 20 l/min at 2 bar / Includes sludge tank and one roll of filter paper (width: 510 mm)
• - Compact Air Cleaning Unit for coolant mist extraction
• - LED Machine Light: 48 LEDs, 16 W, 24 V, luminous flux 1140 lm, daylight white (5600 K)
• - Mobile Balancing Device with optical operator guidance
• - Grinding Wheels: 1x (300 x 50 x 76.2 mm): Mixed corundum, grain 46/ 2x (300 x 30 x 76.2 mm)

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Grinding area: 600 x 450 mm
  • - Application: precision grinding of surfaces and form parts
  • - Functions: automatic infeed, programmable grinding cycles, variable grinding speed
  • - Machine structure: robust and low-vibration cast body for maximum precision
  • - Special features: high grinding accuracy and surface quality, ergonomic operation via modern control system, easy integration of additional options such as automatic balancing and oil separation
  • - Special features: high grinding accuracy and surface quality, ergonomic operation via modern control system, easy integration of additional options such as automatic balancing and oil separation
  • - Grinding wheel holders: 3 holders with bore 76. 2 mm, clamping width 20–30 mm, max wheel diameter 300 mm
• Qualitative Machine Benefits:
  • - Especially suited for demanding grinding tasks where precision and surface quality are essential
  • - Warranty: valid until approximately october 2025
  • - Enhanced guideway accuracy: scraped guideways
  • - Pneumatic folding unit: folding range 90°, mounted on machine table, includes prism arm and single-point diamond (0. 75 ct, mk0), requires compressed air (6 bar)

Payment Terms

• Payment in advance

• Asset Financing
