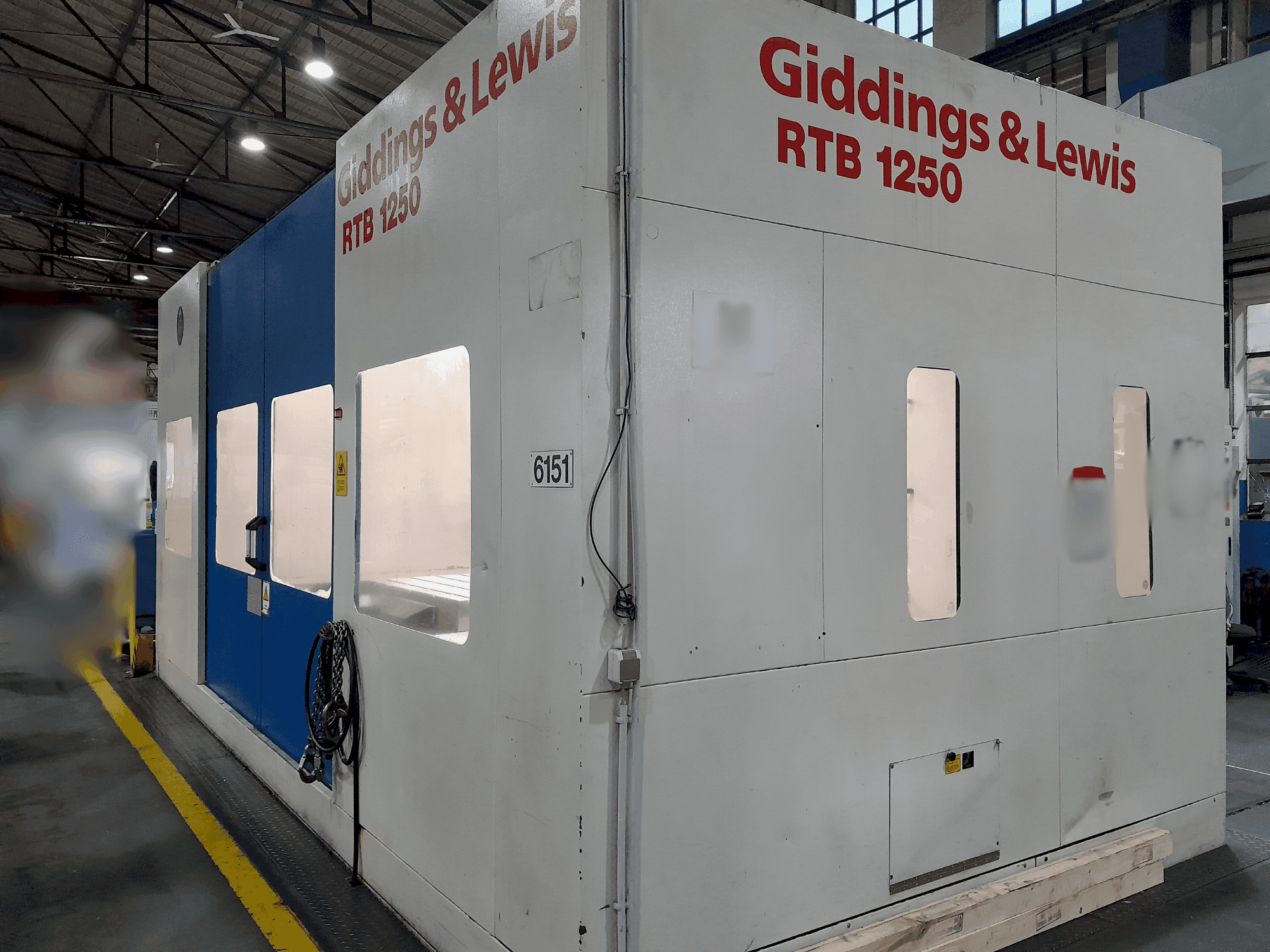

This 4-axis Giddings & Lewis HMC 410 RTB 1250 was manufactured in 2004. It features a robust horizontal machining center with a clamping surface of 1600 x 1250mm and a maximum load capacity of 7000kg. The machine offers a spindle travel on the W-axis of 800mm and supports a tool weight of up to 40kg. If you are looking to get high-quality machining capabilities, consider the Giddings & Lewis HMC 410 RTB 1250 machine we have for sale. Contact us for more information.
Overview
- brand: GIDDINGS & LEWIS
- year: 2004
- MODEL: HMC 410 RTB 1250
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
- availability: Immediately
Technical Information - GIDDINGS & LEWIS HMC 410 RTB 1250
General Data
- Measurements width: 13100 MM
- Measurements depth: 11100 MM
- Measurements height: 4750 MM
- Machine weight: 47600 KG
Main drive
- Spindle speed range: 25-10000 1/MIN
- Spindle motor power: Torque 1128 Nm (6K & 10K spindle)
- Number of axis: 4
Movement
- X-AXIS Movement: 3300 mm
- Y-AXIS Movement: 2100 mm
- Z-AXIS Movement: 2000 mm
Additional Equipment
- - Coolant system tank 2000 l
Additional Information
- Technical Machine Benefits:
- - Number of tools: 100
- - Ikz: yes (coolant supply through spindle 20 bar)
- - Max. Workpiece swing circle 3000 mm
- - Max. Workpiece height 2000 mm
- - Distance between spindle nose and pallet centre line 300 mmdistance between spindle nose and pallet centre line 300 mm
- - Clamping surface 1600 x 1250 mm
- - Permissible load capacity 7000 kg
- - Number of positions 360,000
- - Pallet change time 85 s
- - Spindle travelling - w axis 800 mm
- Qualitative Machine Benefits:
- - Tool holding force 23 kn, feed 32 m/min
- - Tool diameter/length 125/550 mm
- - Tool weight 40 kg
- - Bearing diameter 6k & 10k: 150 mm
- - Bearing diameter 4k, rotating spindle: 260 mm
- - Diameter spindle: 1330 mm
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
