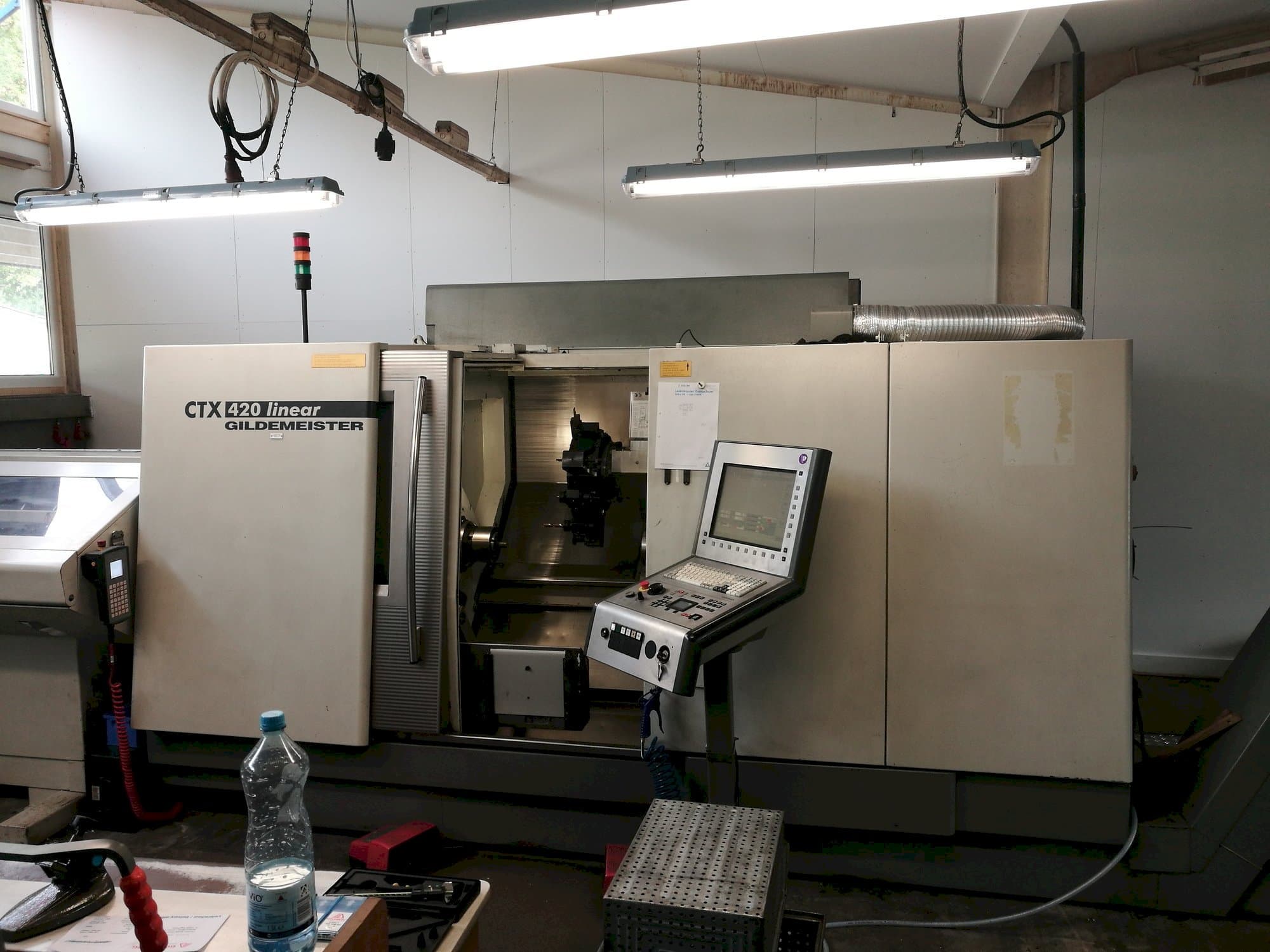

Gildemeister CTX 420 linear

This Gildemeister CTX 420 linear Lathe was built in 2004 in Germany. It has been working for only 14875 hours. It is equipped with a Heidenhain IT Turn plus control unit. This machine incorporates 2 spindles and can operate with a spindle speed up to 7000 rpm. it is full equipment with Y- Axis, counter- spindle and rod loader.

Overview

brand: Gildemeister
year: 2004
MODEL: CTX 420 linear
production hours: 14875
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Gildemeister CTX 420 linear

General Data

Measurements width: 4890 mm
Measurements depth: 2440 mm
Measurements height: 2080 mm
Machine weight: 6500 kg

Control Unit

Model: IT Turn plus
CNC main language: German
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 2
Spindle speed range: 7000 rpm 1/MIN

Movement

X-AXIS Movement: 185 mm
Y-AXIS Movement: 40 mm
Z-AXIS Movement: 635 mm
C-AXIS Movement: 360 mm

Workpiece

Workpiece drm: 324 mm
Workpiece x: 324 mm

Turret

Number of turrets: 12

Media

Main electronic connection: 400 V
Power consumption: 50 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Second counter spindel as 4. Axis
- - Rod loader, breuning ils-rbk 1 (1000mm)
- - Some spare parts for machine and loader
- - 2 x 3jaw chucks / 15 collets / toos
- - Y-axis as the 5. Axis
- - Full equipment with y- axis, counter- spindle and rod loader

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
