Gildemeister CTX 420 Turning

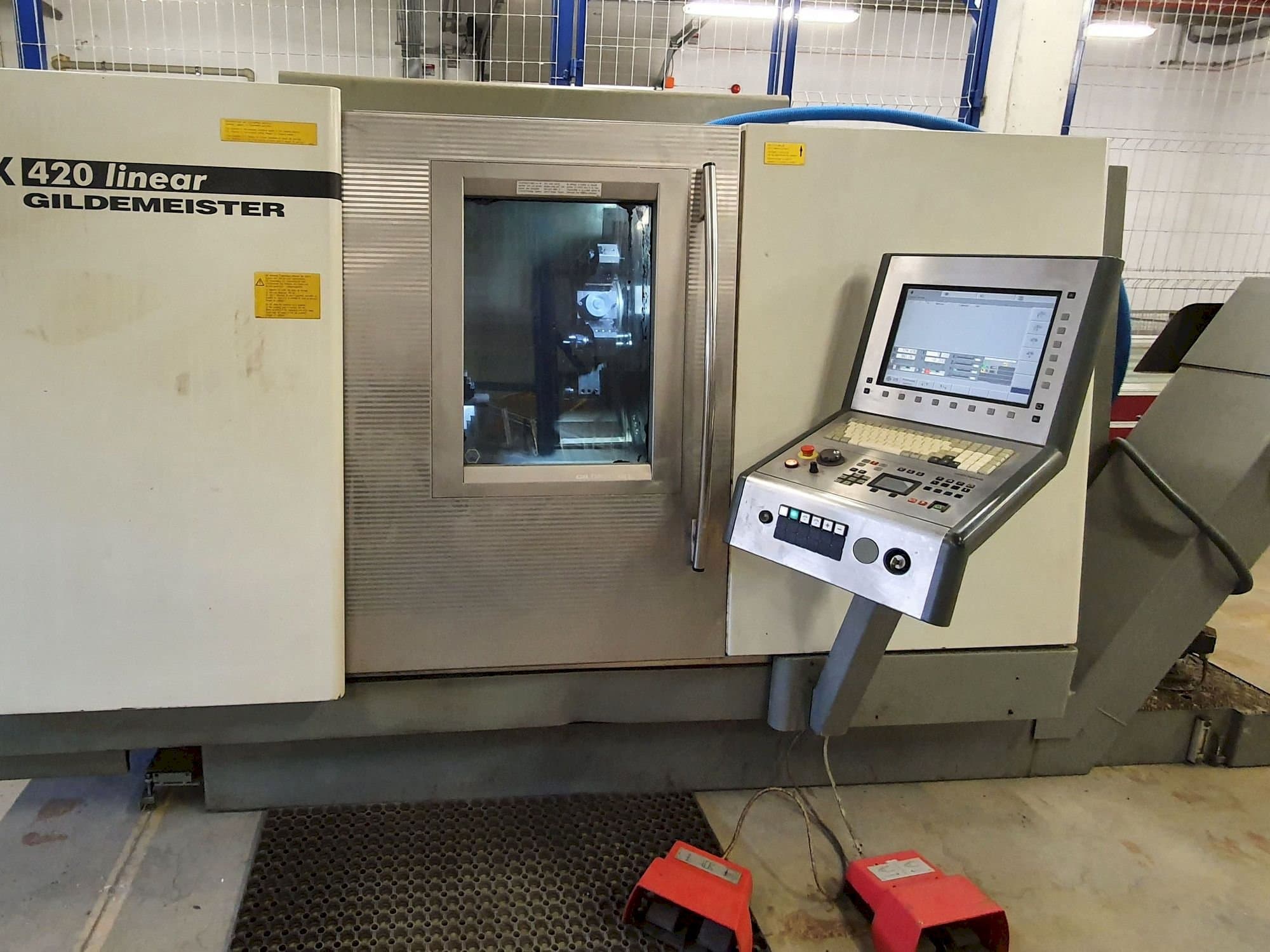

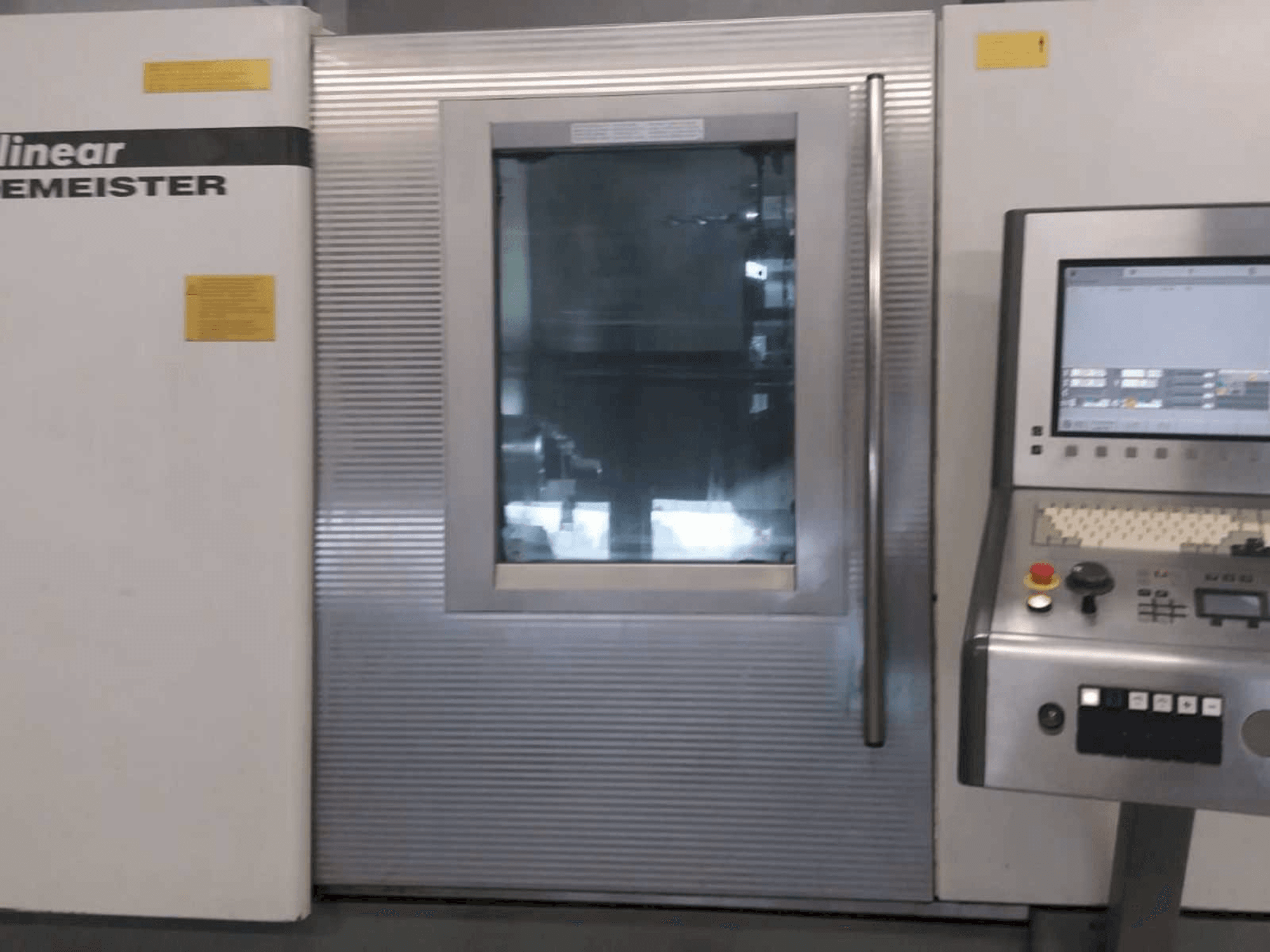

This Gildemeister CTX 420 linear Lathe was manufactured in 2003. This 4 axis machine has been working for 81891 hours, of which 22974 are spindle working hours. It operates through a Heidenhain DataPilot 4290V7 turnplus control unit. This machine can perform with a spindle speed up to 5000 rpm.

Overview

brand: Gildemeister
year: 2003
MODEL: CTX 420 linear
production hours: 81891
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Gildemeister CTX 420 linear

General Data

Measurements width: 4350 mm
Measurements depth: 2460 mm
Measurements height: 2080 mm
Machine weight: 6000 kg

Control Unit

Model: DataPilot 4290V7 turnplus
Brand: HEIDENHAIN

Controller

Brand: SINUMERIK
Model: 840D

Main drive

Spindle speed range: 25-5000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 260 mm
Y-AXIS Movement: 40 mm
Z-AXIS Movement: 635 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turret head 12 pos. / vdi 40 din 69880 (all driven)
- - Turning diameter: 324 mm
- - Turning length: 600 mm
- - Bar diameter: 65 mm
- - Swing diameter: 680 mm
- - Driven tools 12 pos. 4. 500 u/mi
- - Taper in tailstock-quill mk 5
- - Tailstock travel: 580 mm
- - 205 mm hydraulic chuck
- - Automatic programmable tailstock, rapid traverse 6 m / min
Qualitative Machine Benefits:
- - Tool measurement sensor
- - X hydraulic counterweight
- - Scraper chip feeder
- - Air conditioning of electrical cabinets
- - Spindle air conditioning
- - Tool head air conditioning
- - Original documentation in english
- - German, and programmer's manual
- - Electricity: 400v/50hz
- - Total power requirement: 50kva

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
