➤ Used Gildemeister CTX 600 For Sale | gindumac.com

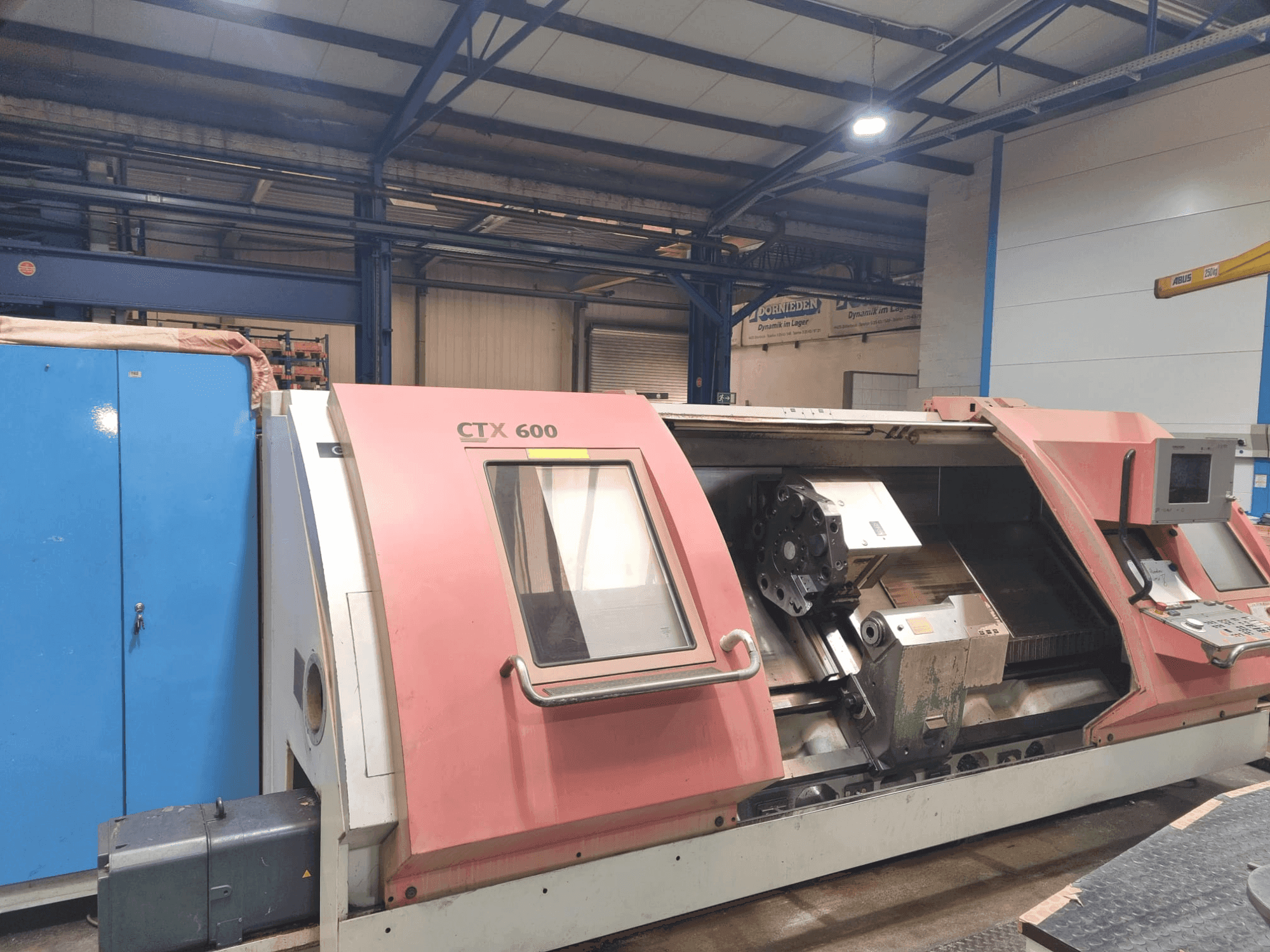

This 3-axis Gildemeister CTX 600 horizontal turning machine was manufactured in 1996. It offers robust construction and reliable performance for precision turning operations. Consider the opportunity to buy this Gildemeister CTX 600 horizontal turning machine. Contact us for more information about this machine.

Overview

brand: Gildemeister
year: 1996
MODEL: CTX 600
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Immediately

Technical Information - Gildemeister CTX 600

General Data

Measurements width: 3437mm
Measurements depth: 6388mm
Measurements height: 3437mm
Machine weight: 9150 kg

Main drive

Spindle speed range: 4-3050 rpm 1/MIN
Number of axis: 3

Additional Equipment

- Number of tool stations: 12

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Drive power at 100% duty cycle: 27 kw
- - Maximum torque: gear stage 1: 1680 nm / gear stage 2: 420 nm
- - Orbital diameter over bed cover: 650 mm / orbital diameter over guide cover: 480 mm
- - Planar travel: 320 mm / longitudinal travel: 2097 mm
- - Spindle head (flat flange): 220 h5 mm/ spindle head diameter at front bearing: 140 mm/ spindle bore: 107 mm/chuck diameter: 315 (400) mm
- - X-feed force at 100% duty cycle: 800 n / z-feed force at 100% duty cycle: 1500 n / x-axis rapid traverse: 10 m/min / z-axis rapid traverse: 15 m/min / measuring system: incremental rotary encoder
- - Universal disc turret, automatic switching with direction logic / tool shank (din 69880): 50 mm / turret indexing time per station (180°): 1. 0 (3. 0) sec / maximum indexing per hour: 400
- - Quill diameter: 120 mm / quill stroke: 120 mm / quill pressure: 1400 n
- - Steady rest / self-centering hydraulic steady rest: 22 - 150 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
