Used Lathe GILDEMEISTER TWIN 65 - 2004 - for sale | gindumac.com

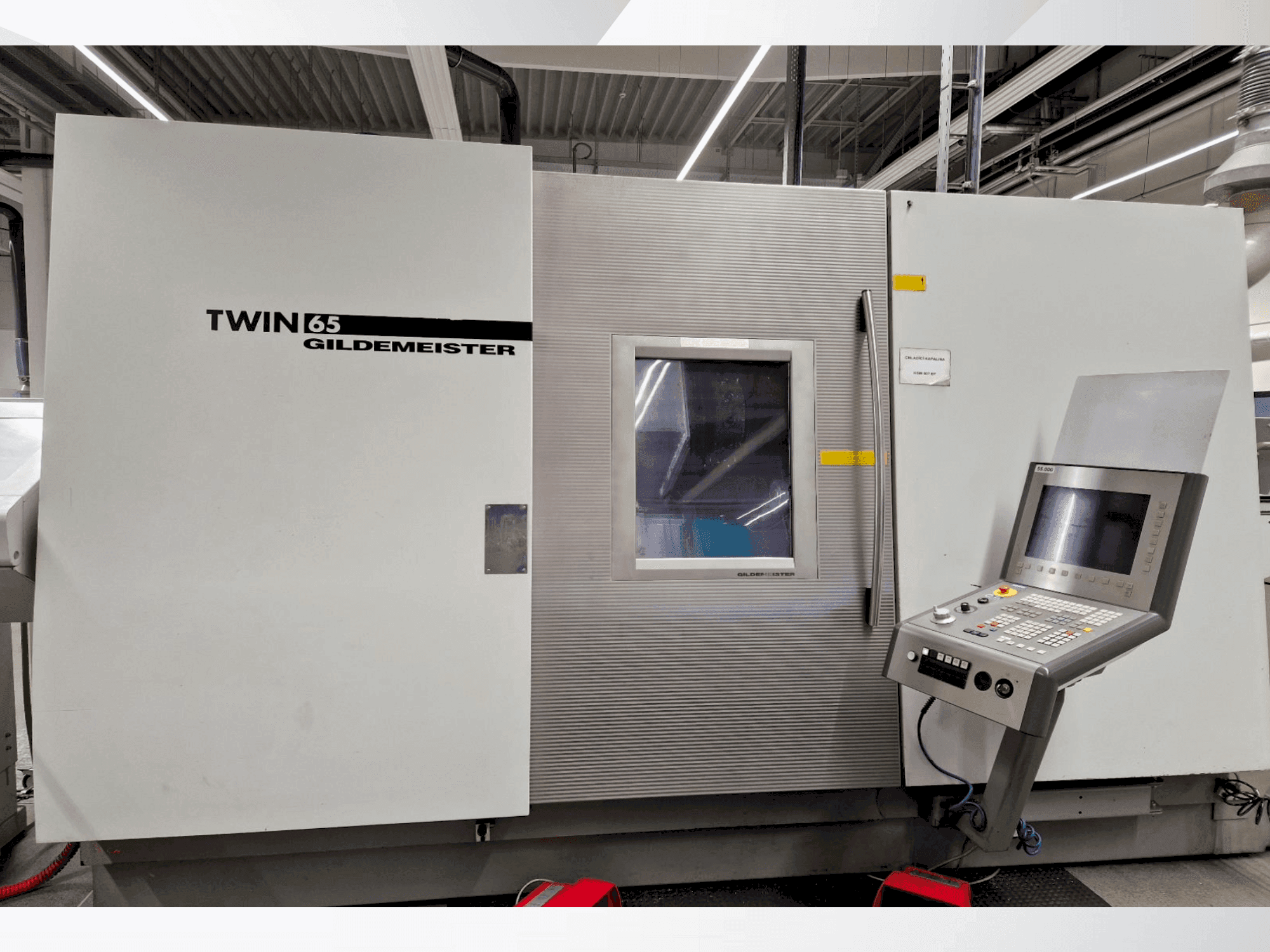

This 7-axis Gildemeister TWIN 65 lathe was manufactured in 2004. It is equipped with a Sinumerik 840D control system and features both a main and counter spindle with speeds up to 5000 rpm. The primary spindle drive offers a robust 35 kW of power, while the counter spindle delivers 26 kW, accommodating a rotation working range of Ø 250 mm for the main and Ø 120 mm for the counter spindle. Additionally, this lathe includes a bar feeder with a maximum diameter capacity of 62 mm. The Gildemeister TWIN 65 machine we have for sale is ideal for efficient, high-precision manufacturing. Reach out for more information about this lathe.

Overview

brand: Gildemeister
year: 2004
MODEL: TWIN 65
production hours: 72950
application type: Turning
Location: Austria
machine type: Turn-Mill Centre
availability: Immediately

Technical Information - Gildemeister TWIN 65

Controller

Brand: Sinumerik
Model: 840D

Main drive

Spindle speed range: 5000 1/MIN
Spindle motor power: 35 kW
Spindle bore: 65 mm

Additional Equipment

- Bar feeder Breuning ILS RBK10016
- Coolant system

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum workpiece diameter: main spindle: 250 mm, counter spindle: 120 mm
- - Counter spindle: 49,823 hours
- - Spindle speed driven tools: max. 4000 rpm
- - Spindle power counter spindle: 26 kw
- - Number of tools: 2 x 12
- - Tapper size: shank according to din 69880: 30/40mm
- - Spindle distance: 900mm
- - High spindle speeds for efficient machining
- - Driven tools for increased versatility
- - Counter spindle for additional machining operations

Extra information

- Bar feeder for continuous operation - Coolant system for temperature control and chip evacuation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
