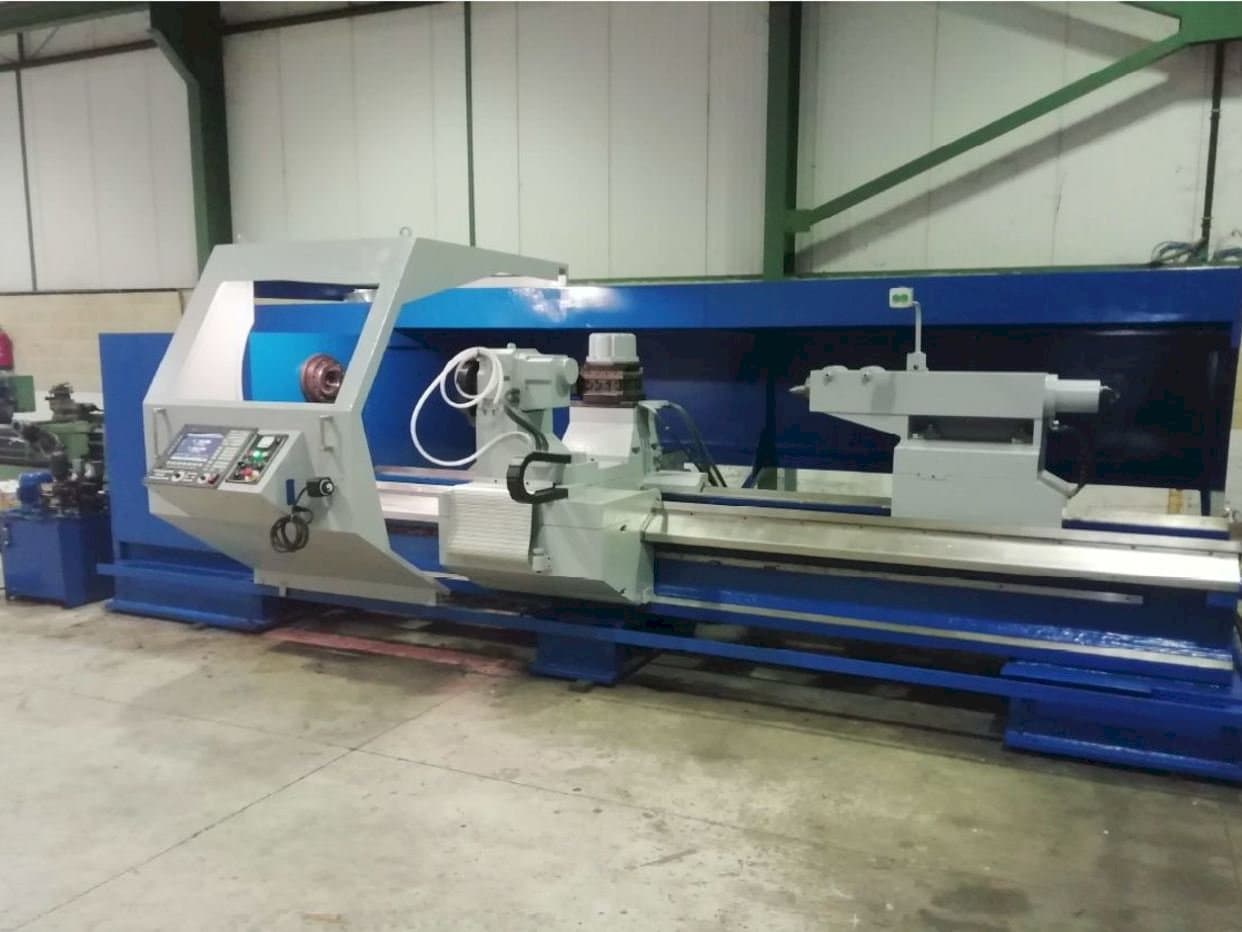

Gurutzpe A-1000 Lathe

This Gurutzpe A-1000 Lathe was manufactured in 1988. This machine, equipped with a Fagor 8055 control unit. It can works with a spindle speed range up to 10000 rpm. It stands out through its wide working range (up to 3000 mm on the Z-Axis). This Gurutzpe, was reconstructed in 2019.

Overview

brand: Gurutzpe
year: 1988
MODEL: A-1000
application type: Turning
Location: Spain
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FAGOR

Technical Information - Gurutzpe A-1000

General Data

Measurements width: 7655 mm
Measurements depth: 3000 mm
Machine weight: 18000 kg

Control Unit

Model: 8055
CNC main language: English
CNC language customizable: Yes
Brand: FAGOR

Main drive

Number of spindles: 1
Spindle speed range: 4-10000 1/MIN

Movement

X-AXIS Movement: 650 mm
Z-AXIS Movement: 3000 mm

Workpiece

Workpiece z: 3000 mm
Workpiece weight: 7000 kg

Turret

Number of turrets: 12

Tools

Max tool diameter: 105 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Number of vertical turret 4
- - Number of horizontal turret 8
Qualitative Machine Benefits:
- - Reconstruction in 2019

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
