- HAAS DT-1 Vertical Machining center with Universal Robot UR10E Automation Cell

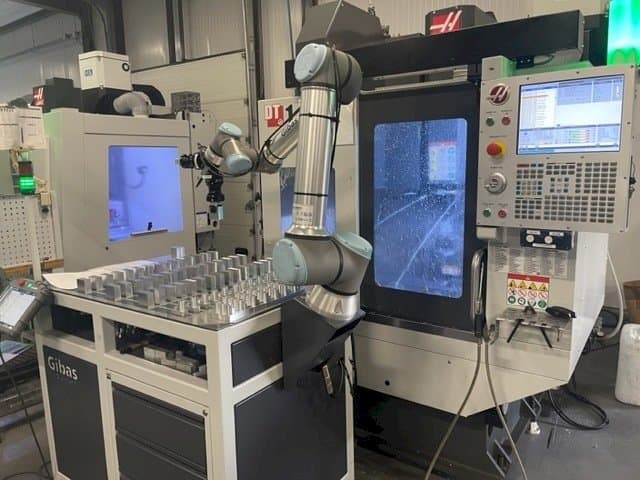

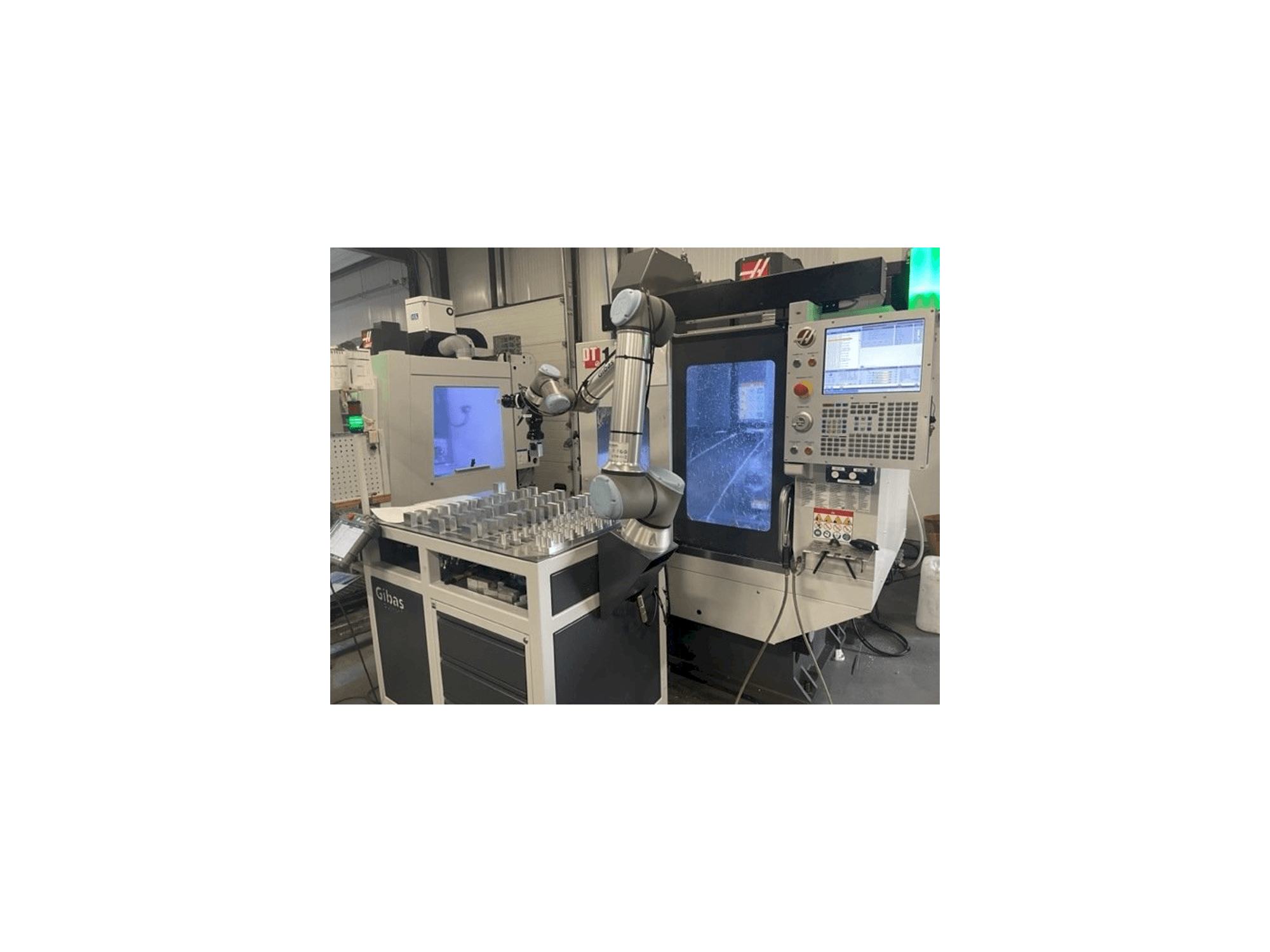

This HAAS DT-1 Vertical Machining center with Universal Robot UR10E Automation Cell was manufactured in the year 2018 in Germany and has 3179 production hours. It is equipped with a HAAS control unit and has 5 axis. The machine has a spindle speed of 15000 rpm. It comes with a universal robot UR10E automation cell included in the scope of delivery.
Overview
- brand: HAAS
- year: 2018
- MODEL: DT-1 with Universal Robot UR10E Automation Cell
- production hours: 3179
- application type: Milling
- Location: Netherlands
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: HAAS
Technical Information - HAAS DT-1 with Universal Robot UR10E Automation Cell
Control Unit
- Brand: HAAS
Main drive
- Spindle speed range: 150000 1/MIN
- Tool taper: BT-30
- Number of axis: 5
Additional Information
- Technical Machine Benefits:
- - 21 tool warehouse
- - 20 bar cooling through the spindle / through-spindle coolant ready + through spindle coolant (tsc)
- - Air through the spindle (through tool airblast (tab)
- - 4th and 5th axis drive
- - Wireless intiuitive probe system
- - Programmable coolant nozzle
- - Chip auger / chip conveyor
- - Haas connect
- - Dwo/tcpc (dynamic work offsets and tool center point control)
- - High speed machining option
- Qualitative Machine Benefits:
- - Visual programming system
- - Automatic door (delivered by gibas)
- - INCLUDING UNIVERSAL ROBOT UR10E AUTOMATION CELL: 10 KG, 1300mm reach Repeat accuracy of the robot +/- 0.05mm 6 axles. Clamping installation including various jaws and grippers for different shapes, such as round products Various grid plates Grid table on wheels. Robot, controller, touchscreen control unit and the cables between them • Software (GUI) • Table with storage space for the controller and a mounting point for the touchscreen • Positioning system for products (incl. warehouse for product carriers) • 1 double pneumatic gripper • Tool nose camera from Robotiq, for 2D product recognition and random picking • Blow-off unit (incl. valve) • Compressed air treatment unit • Signal tower • Position triangle products, with product presence sensorVision system - • Interfacing and automating existing door: Complete clamp centering clamping system SMW car block with various jaws.
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
