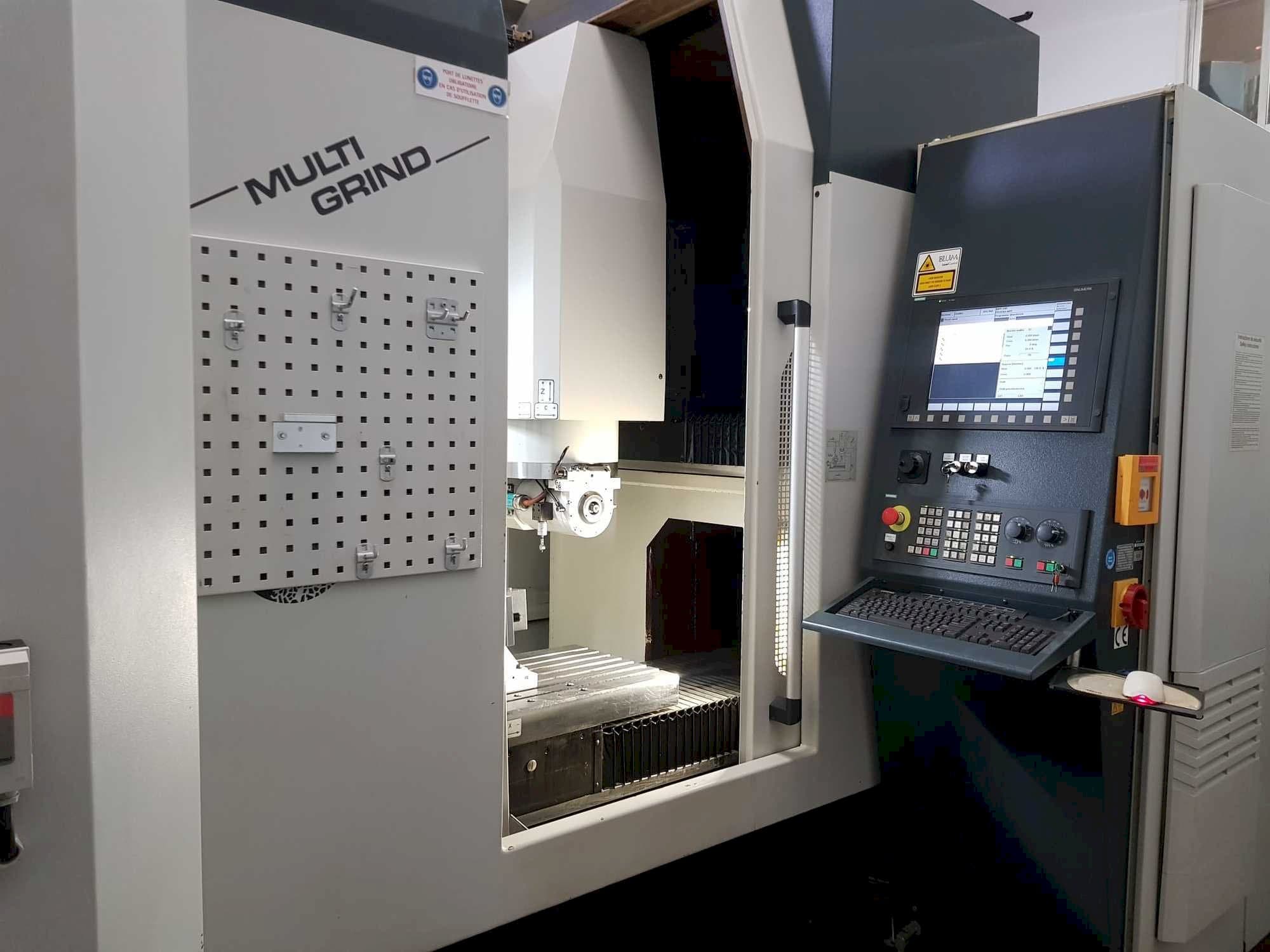

HAAS Multigrind - HT Grinding Machine

This HAAS Multigrind - HT Grinding Machine was manufactured in the year 2006. The machine has approximately 44520 working hours. It is equipped with a Siemens 840D control unit and works with a spindle speed up to 10000 rpm.

Overview

brand: HAAS
year: 2006
MODEL: Multigrind - HT
production hours: 44520
application type: Grinding
Location: Spain
machine type: Grinding Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - HAAS Multigrind - HT

General Data

Machine weight: 9000 kg

Control Unit

Model: 840D
Brand: SIEMENS

Main drive

Spindle speed range: 10000 1/MIN

Movement

X-AXIS Movement: 900 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 270 mm
A-AXIS Movement: 360º MM
B-AXIS Movement: -200º + 100º MM

Additional Equipment

- Loader for 10 grinding wheels of max. Diameter 250
- Tool clamping device hermle
- High capacity and large size parts feeder module
- Renishaw workpiece stylus
- Blum laser tool measuring bridge
- Hyfra coolant unit
- Diamond dressing and profiling device for grinding wheels
- Co2 fire extinguishing device

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Equipment for centrifugation and cooling of rectified oil
- - High pressure pump 30 bar and capacity 800l

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
