➤ Used HAAS Multigrind AF/SL For Sale | gindumac.com

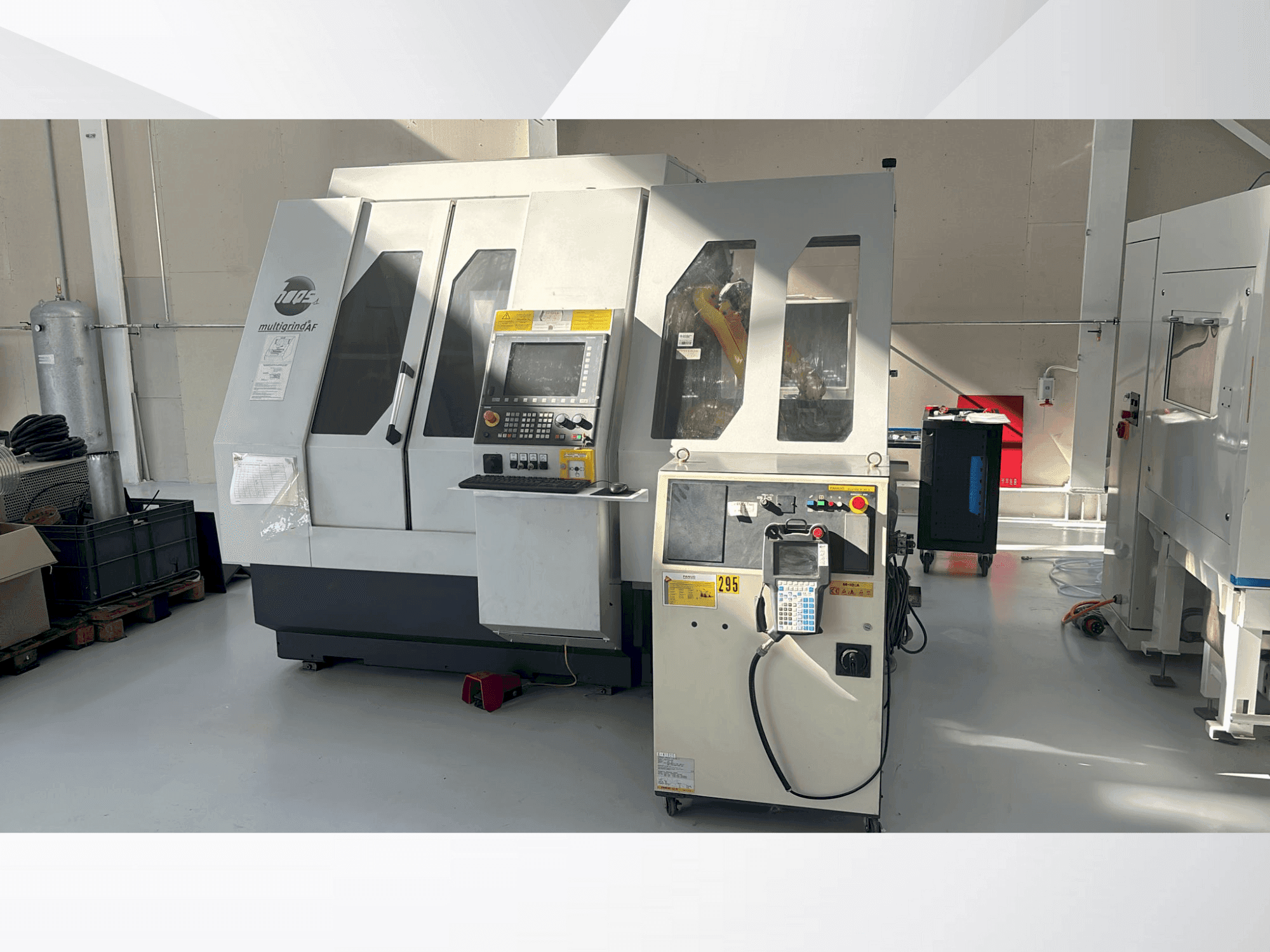

This 5-axis HAAS Multigrind AF/SL grinding machine was manufactured in 2010. It features a robust Siemens Sinumerik 840D CNC control, a grinding spindle speed range of 2,000 to 8,000 rpm, and a spindle power of 12 kW. The machine includes a Fanuc Model M-10iA Robotic Loader for enhanced automation and efficiency. Ideal for complex grinding tasks, the HAAS Multigrind AF/SL machine we have for sale is a significant asset for precision machining. Contact us for further details regarding this grinding machine.

Overview

brand: HAAS
year: 2010
MODEL: Multigrind AF/SL
application type: Grinding
Location: Switzerland
machine type: Grinding Machine
availability: Immediately
control unit brand: SIEMENS

Technical Information - HAAS Multigrind AF/SL

General Data

Measurements width: 3000 MM
Measurements depth: 4000 MM
Measurements height: 3000 MM
Machine weight: 9000 KG

Control Unit

Model: Sinumerik 840D
Brand: SIEMENS

Main drive

Spindle speed range: 2000 - 8000 1/MIN
Spindle motor power: 12 kw

Movement

X-AXIS Movement: 400 mm
Y-AXIS Movement: 270 mm
Z-AXIS Movement: 250 mm
A-AXIS Movement: 360 º MM
C-AXIS Movement: -230°/ +70° MM

Table

Outer length: 1000 mm
Outer width: 270 mm

Additional Equipment

- Fanuc Model M-10iA Robotic Loader
- Robotic control: SYSTEMR-30/A Control
- Disc guard change
- Pneumatic cylinder tension/compression clamping force up to 17000 N

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Grinding spindle diameter: 90 mm
- - Grinding disc diameter: 225 mm
- - Grinding disc width: 50 mm
- - Center distance: 300 mm
- - Includes two grinding spindle ends, high-resolution measuring systems, infinite rotation angle for dividing head
- - Workpiece holder: iso 50 / centre 70h5

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
