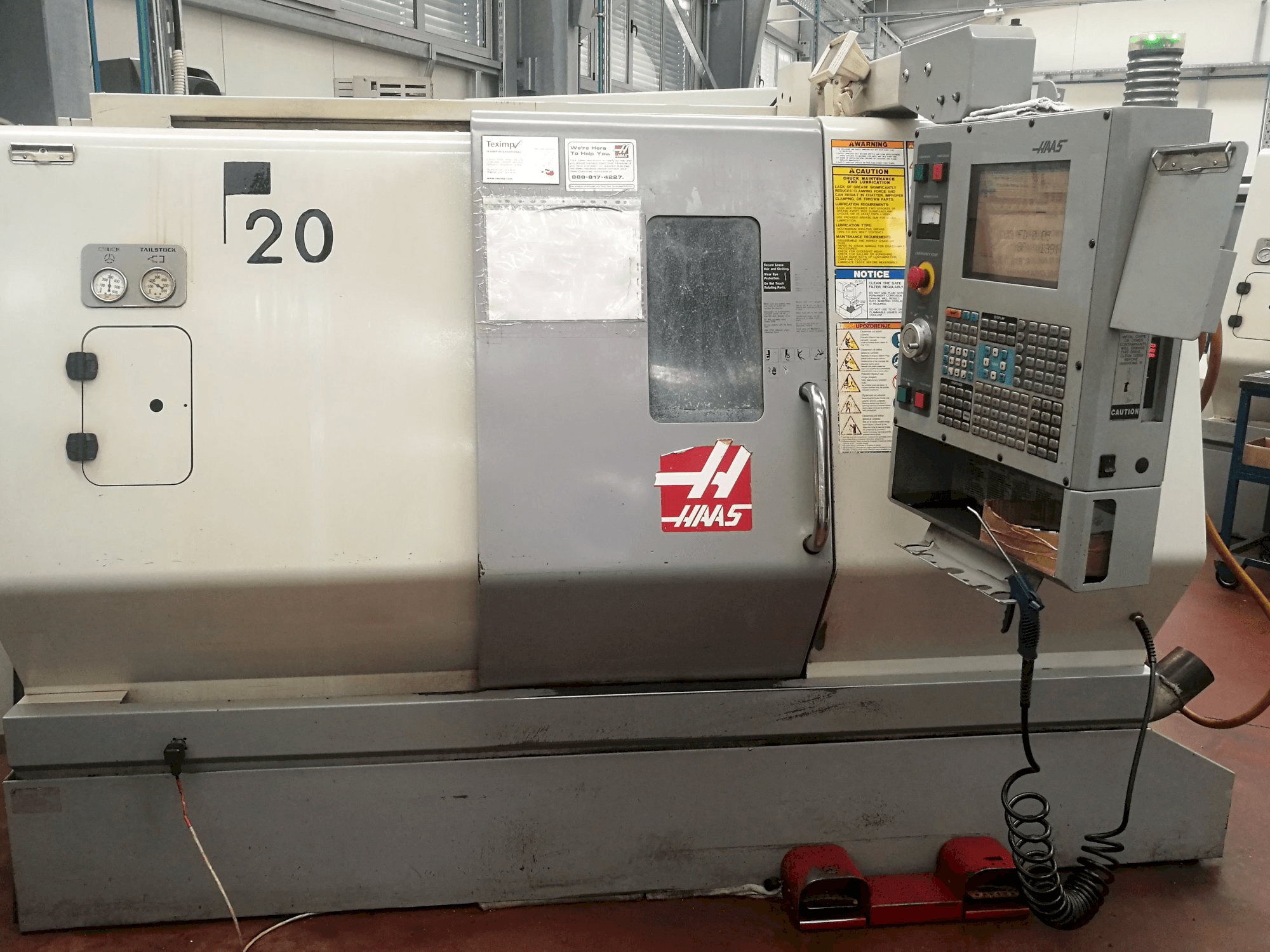

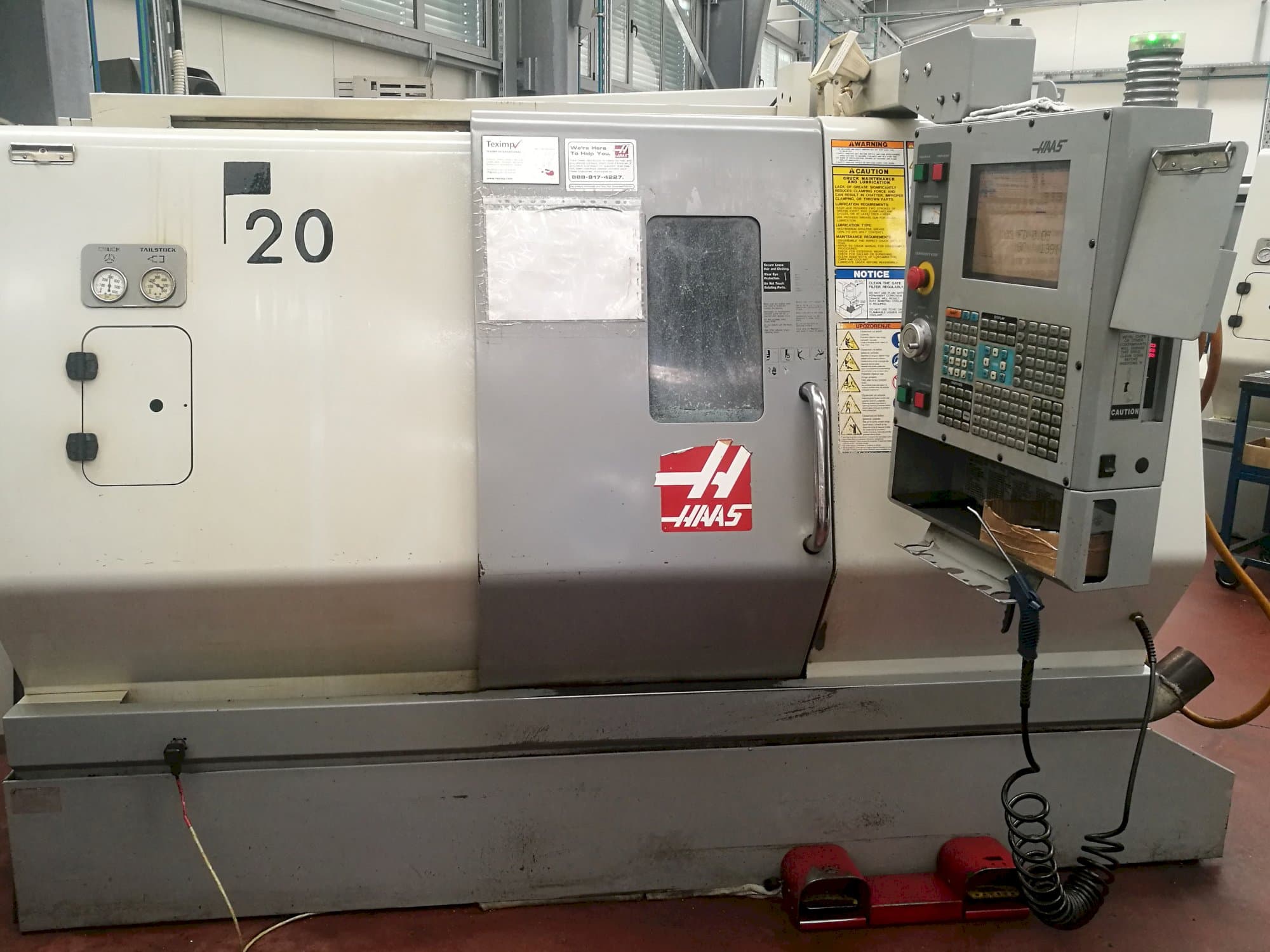

HAAS SL-20THE Lathe

This HAAS SL-20THE Lathe from 2004 was manufactured in the United States and has a working record of 28000 production hours. Controlled through a HAAS Control unit and with a bar capacity of 52 mm, this very precise machine can work in 1 and 2 shifts. During the past, this machine mostly processed steel and stainless steel. It presents good conditions as it was regularly maintained.

Overview

brand: HAAS
year: 2004
MODEL: SL-20THE
production hours: 28000
application type: Turning
Location: Croatia
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: HAAS

Technical Information - HAAS SL-20THE

General Data

Measurements width: 2750 mm
Measurements depth: 2200 mm
Measurements height: 1850 mm
Machine weight: 4500 kg

Control Unit

CNC main language: English
Brand: HAAS

Main drive

Number of spindles: 1
Spindle speed range: 40000 rpm 1/MIN
Spindle motor power: 15 kW

Movement

X-AXIS Movement: 400 mm
Z-AXIS Movement: 508 mm

Workpiece

Workpiece drm: 262 mm
Workpiece x: 508 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 10
Type of tool holder: VDI40

Media

Main electronic connection: 360V / 50Hz
Power consumption: 15 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Hydraulic chuck 210/3
- Tool presetter
- Tailstock

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
