HAAS - SL30IT-TUR-HAA-2013-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

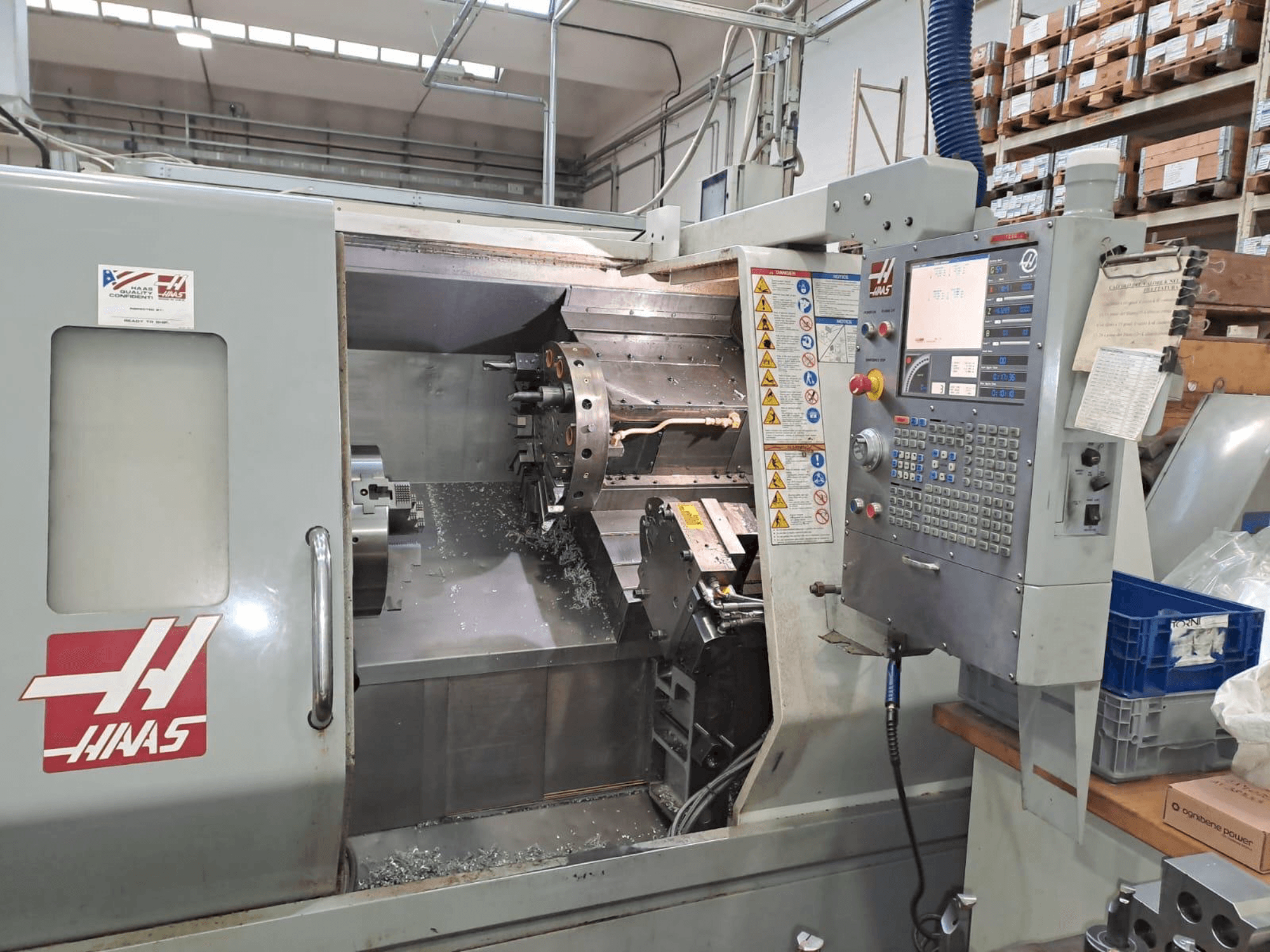

This HAAS SL30 lathe was manufactured in 2013. It is equipped with a Haas control unit and has 2 axes. The machine has a spindle speed of 3400 rpm.

Overview

brand: HAAS
year: 2013
MODEL: SL30
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: HAAS

Technical Information - HAAS SL30

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 3400 1/MIN
Spindle motor power: 22.4 kw
Number of axis: 2

Movement

X-AXIS Movement: 287 mm
Z-AXIS Movement: 863,6 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max turning length 863. 3 mm
- - Max turning diameter 431. 8 mm
- - Distance between points 990. 6 mm
- - Chuck attachment a2-6
- - Bar passage 88. 9 mm
- - Turret 12 positions
- - Turret mount vdi 40

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
