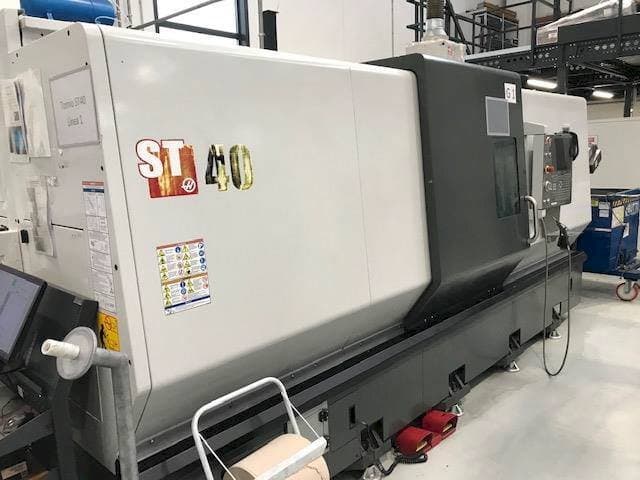

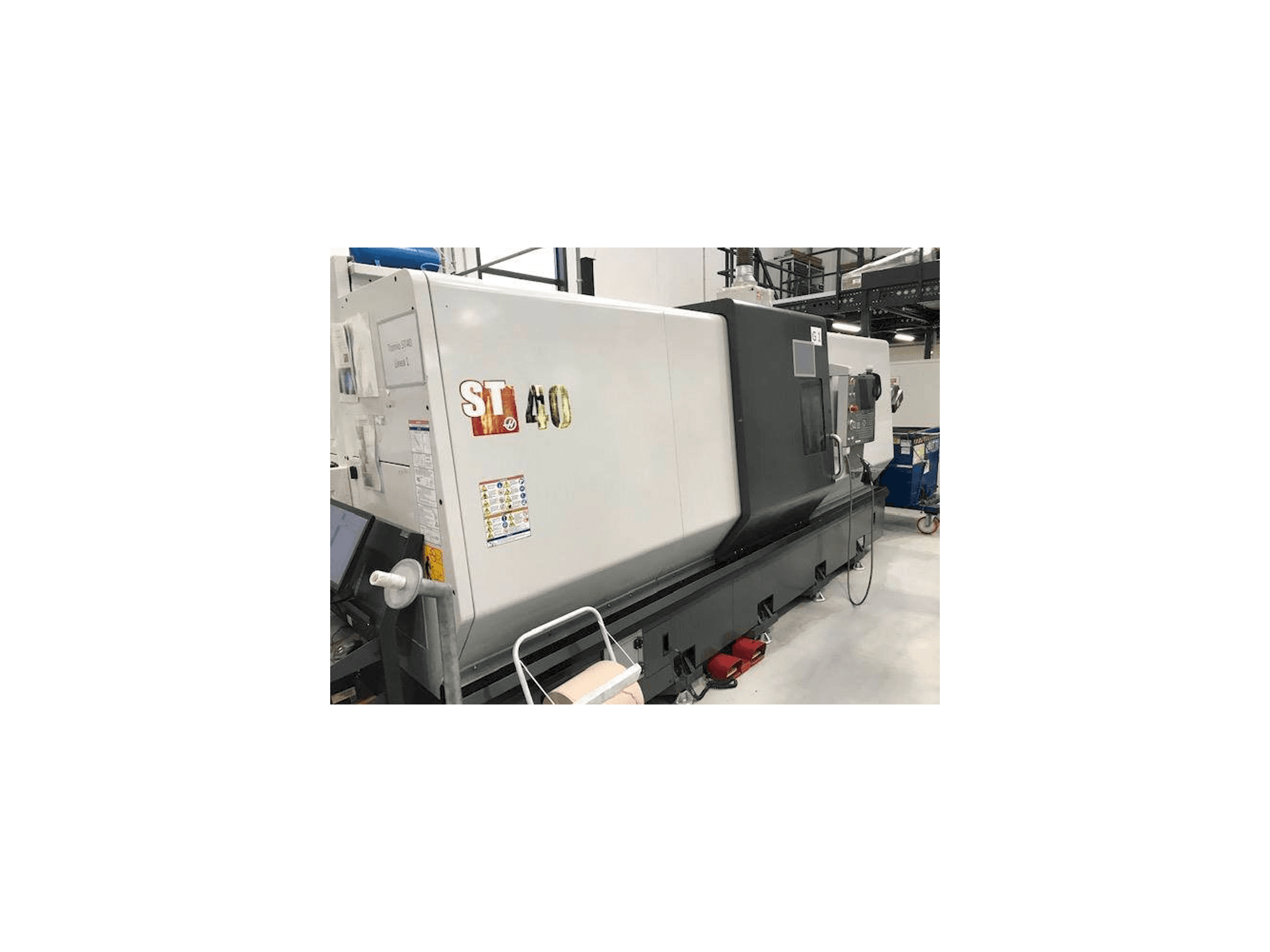

This HAAS ST-40 Lathe was made in 2016. It is equipped with a HAAS control unit and has 6778 production hours. The machine has a spindle speed of 2400 rpm.

Overview

brand: HAAS
year: 2016
MODEL: ST-40
production hours: 6778
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: HAAS

Technical Information - HAAS ST-40

General Data

Machine weight: 11749 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 2400 1/MIN
Spindle motor power: 29.8 kW.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 15” cnc monitor
- - A2-8 spindle head
- - 2-speed range gearbox
- - Spindle hole: 117. 3 mm
- - Through hole: 102 mm
- - Chuck diameter: 381 mm
- - Vault : 876 mm
- - Diameter to be machined: 648 mm
- - 12-position tool turret
- - Stroke x 432mm z stroke 1. 118 mm
Qualitative Machine Benefits:
- - Rapid feed on x - z 18. 0 m/min
- - Options present :usb port , rigid tapping ,conveyor belt ,chip conveyor ,automatic presetting ,high pressure refrigeration ,21 bar ,mt 5 programmable servo-controlled tailstock std, tool holder kit
- - Machine maintained perfectly working

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
