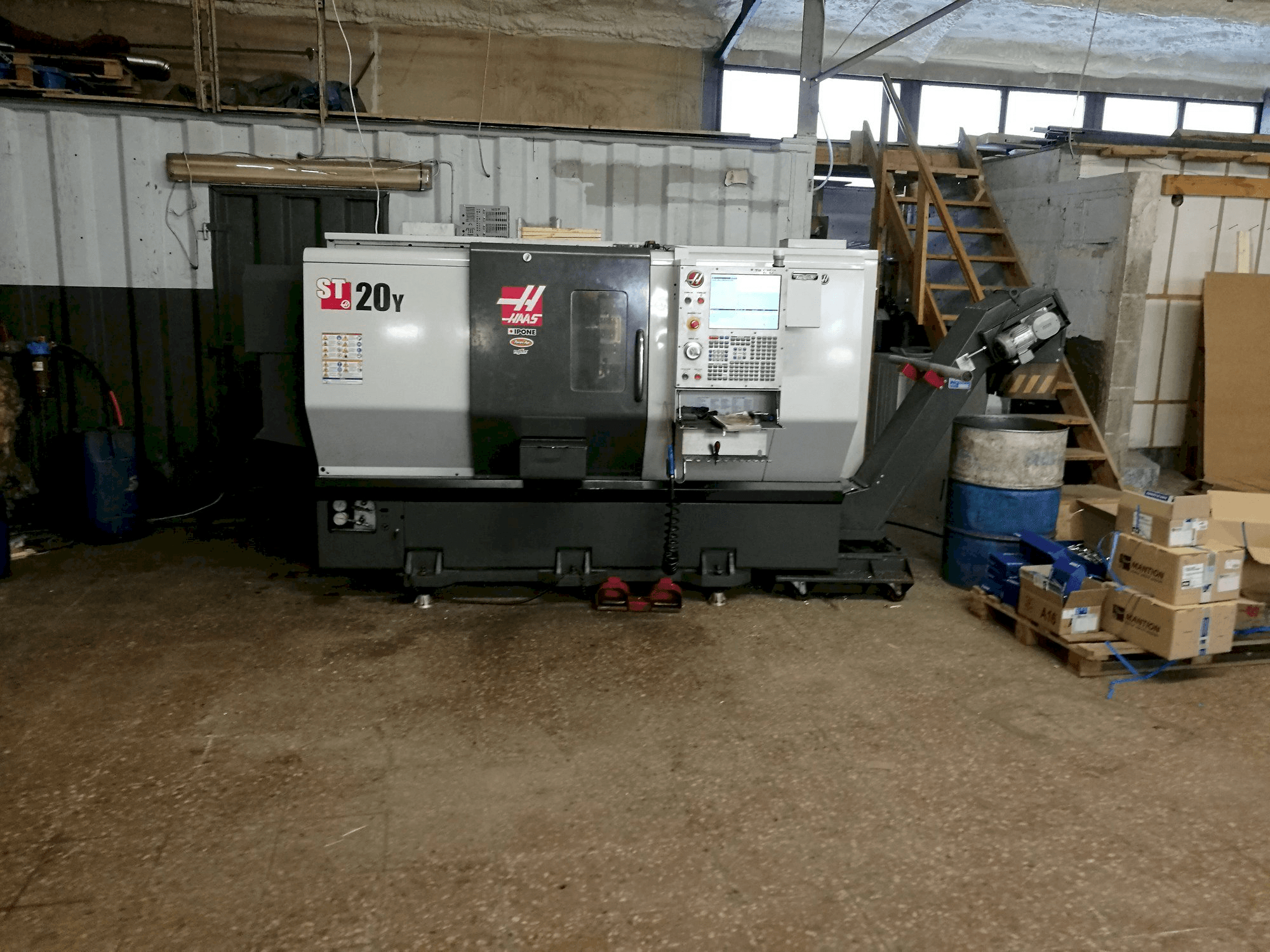

This HAAS ST20Y Lathe from 2014 was made in the United States and has been operative for 6476 hours. Equipped with a HAAS M130 Control unit, this machine can work with a spindle speed up to 4000 rpm. During the past, it has worked with materials such as stainless steel, black steel and aluminum.

Overview

brand: HAAS
year: 2014
MODEL: ST20Y
production hours: 6476
application type: Turning
Location: Estonia
machine type: Turn-Mill Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS ST20Y

General Data

Measurements width: 4191 mm
Measurements depth: 1800 mm
Measurements height: 2600 mm
Machine weight: 6150 kg

Control Unit

Brand: HAAS
Model: M130
CNC main language: English
CNC language customizable: Yes

Main drive

Number of spindles: 1
Spindle speed range: 4000 rpm 1/MIN

Movement

X-AXIS Movement: 236 mm
Y-AXIS Movement: 51 mm
Z-AXIS Movement: 533 mm

Workpiece

Workpiece drm: 305 mm
Workpiece x: 533 mm

Turret

Number of turrets: 1

Media

Main electronic connection: 360-480 V / 50-60 Hz
Power consumption: 20 A
Chip conveyor: Yes

Additional Information

Machine history

Material type: Stainless steel, black steel, aluminium

Machine Benefits

Technical Machine Benefits:
- - 12station vdi turret
- - Renishaw measure system atp
- - 750mb expanded memory
- - Active tooling
- - Programmable hydraulic tailstock
- - Part catcher system
- - Intuitive programming system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
