HAGEN&GOEBEL E 1 S – 160 NC

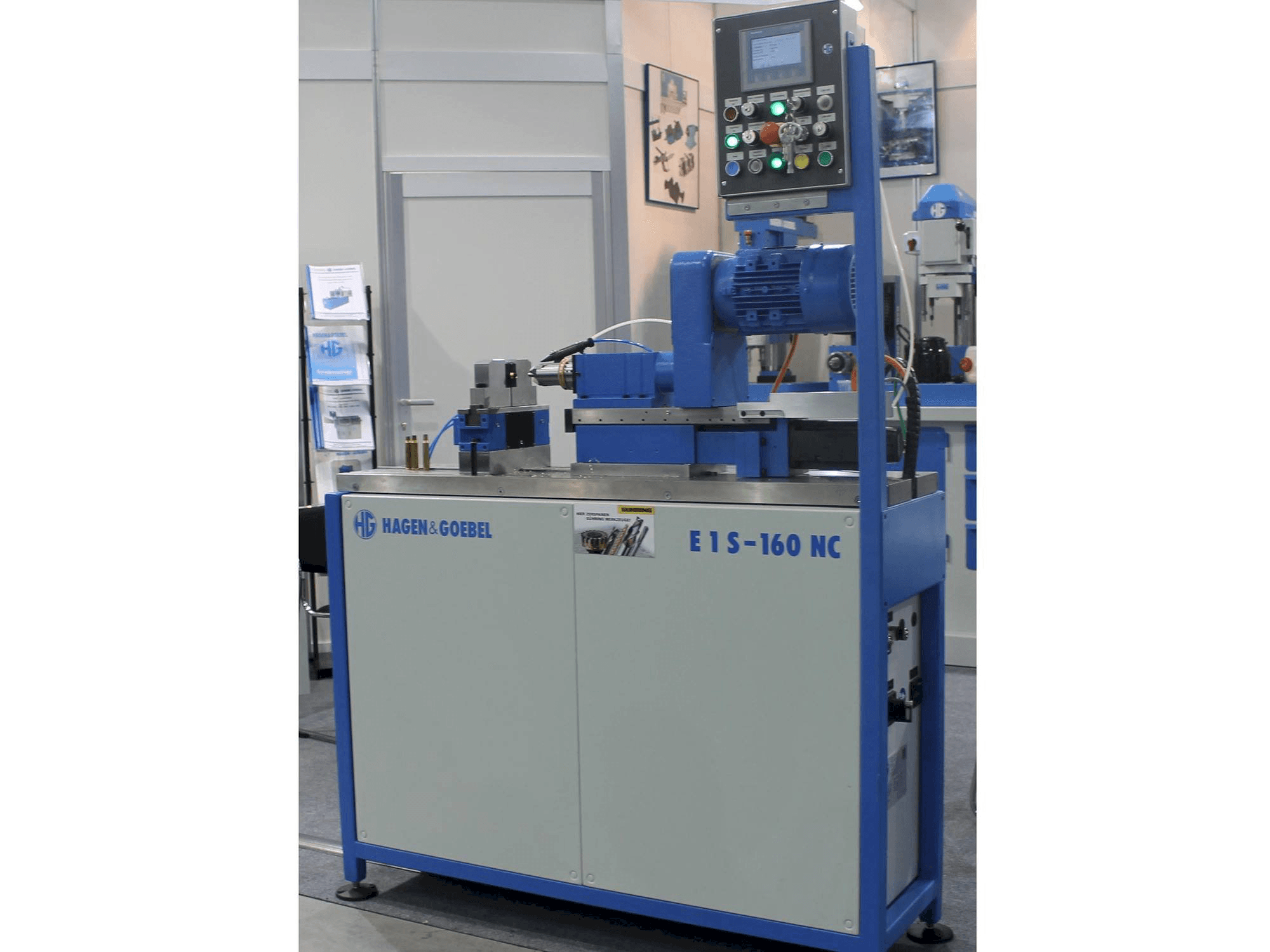

This HAGEN&GOEBEL E 1 S – 160 NC Drilling Machine was manufactured in the year 2016. It is equipped with a SIEMENS SIMATIC HMI control unit. This machine works with a spindle speed range 25-3000 rpm and through a front clamping system HSK-C size 50.

Overview

brand: HAGEN&GOEBEL
year: 2016
MODEL: E 1 S – 160 NC
application type: Other Machine Tools
Location: Germany
machine type: Drilling Machine (Metal)
availability: Sold
control unit brand: SIEMENS

Technical Information - HAGEN&GOEBEL E 1 S – 160 NC

General Data

Machine weight: 1200 kg

Control Unit

Model: SIMATIC HMI
Brand: SIEMENS

Main drive

Spindle speed range: 25-3000 1/MIN

Movement

Z-AXIS Feed Force: 8000 N
Z-AXIS Rapid traverse: 15 m/min

Media

Main electronic connection: 400 v 50 hz
Power consumption: 6 kva
Cooling pressure: 100 l/min

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Workspace z axis: 150 mm
- - Path measurement z axis: indirect displacement measurement via pulse generator
- - Feed range in the z axis over program 1-15000 mm/min, smallest programmable increment 0. 01 mm
- - Front clamping system hsk-c size 50
- - H&g type designation pz100/pz130
- - Possible clamping range (with jaw change) 5-100 mm or 6-130 mm
- - Centring accuracy +- 0. 05 mm
- - Max. Diameter 102 mm
- - Capacity approx. 120 l.
- - Pressure max. 1. 3 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
