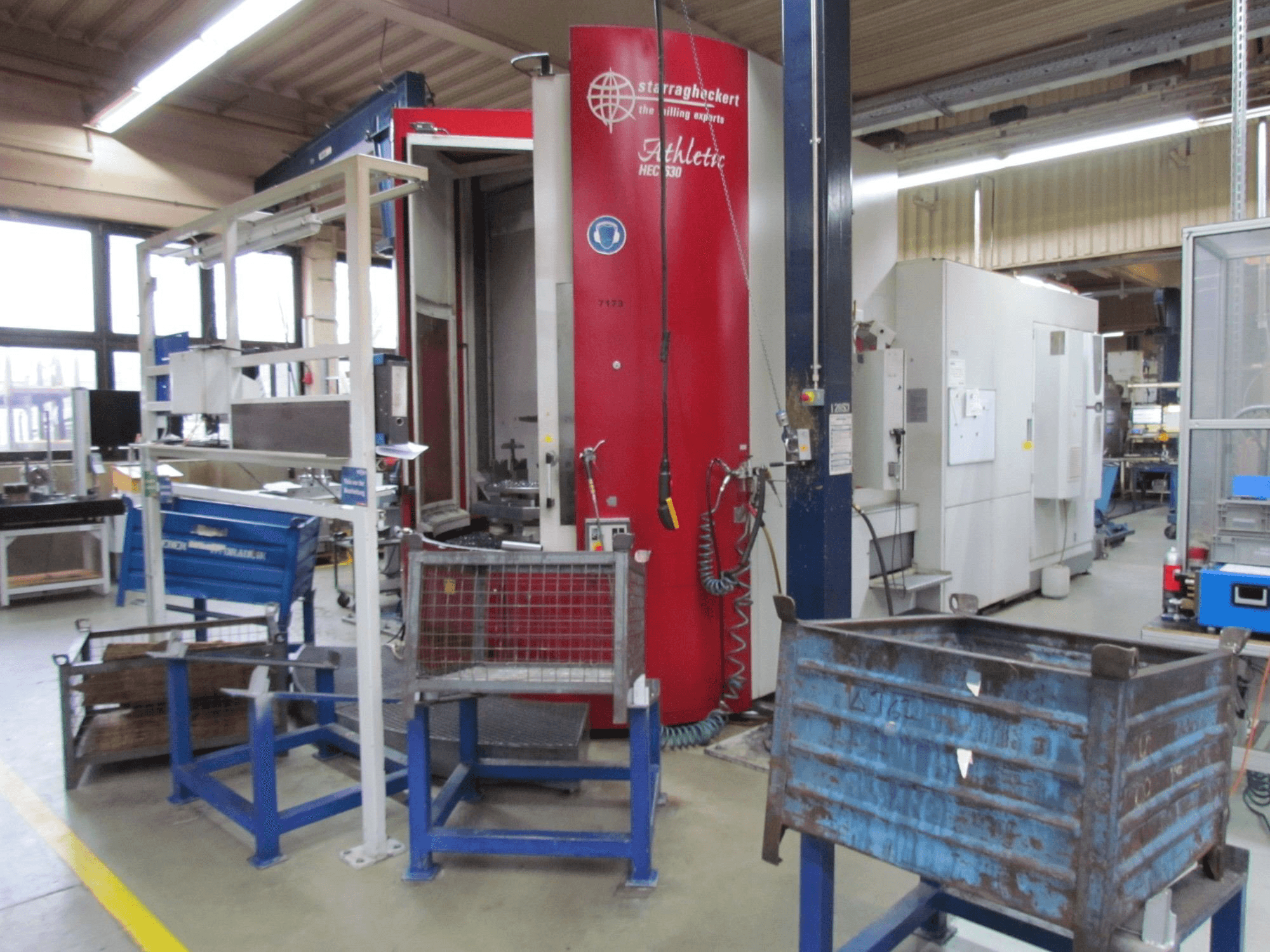

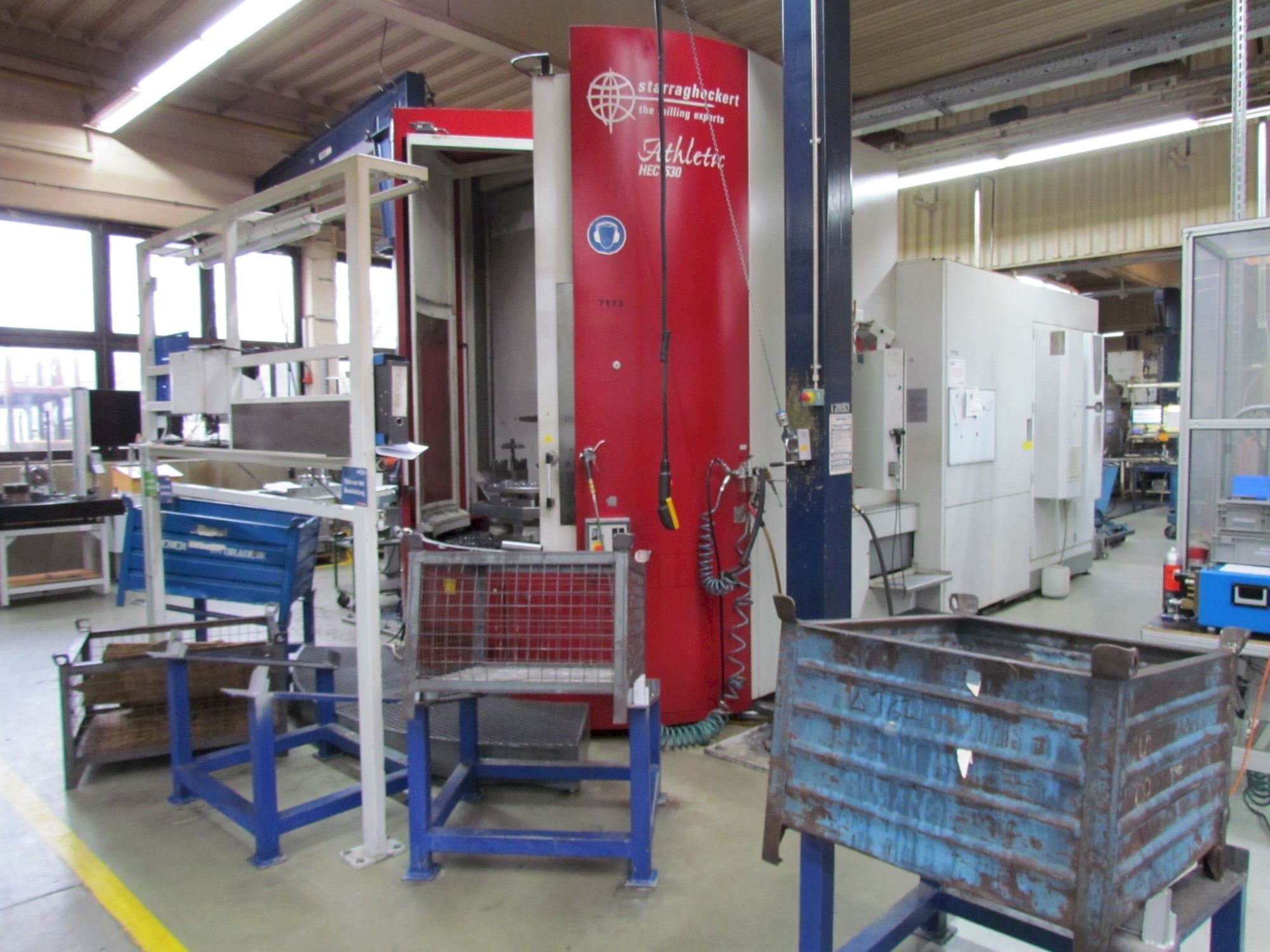

- This Heckert HEC 630 Horizontal Machining center
This Heckert HEC 630 Horizontal Machining center designed for complex drilling and milling of housing-shaped workpieces for 4-side machining in one clamping was made in 2007 in Germany. It is equipped with a SIEMENS Sinumerik 840 D control unit. The machine has a spindle speed of 6000 rpm.
Overview
- brand: Heckert
- year: 2007
- MODEL: HEC 630
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
- availability: Sold
- control unit brand: SIEMENS
Technical Information - Heckert HEC 630
General Data
- Machine weight: 27200 kg
Control Unit
- Brand: SIEMENS
- Model: Sinumerik 840 D
Main drive
- Spindle speed range: 6000 1/MIN
Table
- Outer length: 630 mm
- Outer width: 630 mm
- Table load: 1500 kg
Media
- Main electronic connection: 400V / 50Hz
Additional Equipment
- - no tools/ tool holders included
Additional Information
- Technical Machine Benefits:
- - Machining torque: 1700 kn
- - Max. Stall torque without table clamping: 1150 nm
- - Infinitely adjustable work feed range: 60000 mm/min
- - There are 4x machine tables available
- - The machine has 4x axes: x+y+z+b
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
