HEYLIGENSTAEDT - Heynumat 21UIE-TUR-HEY-1982-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

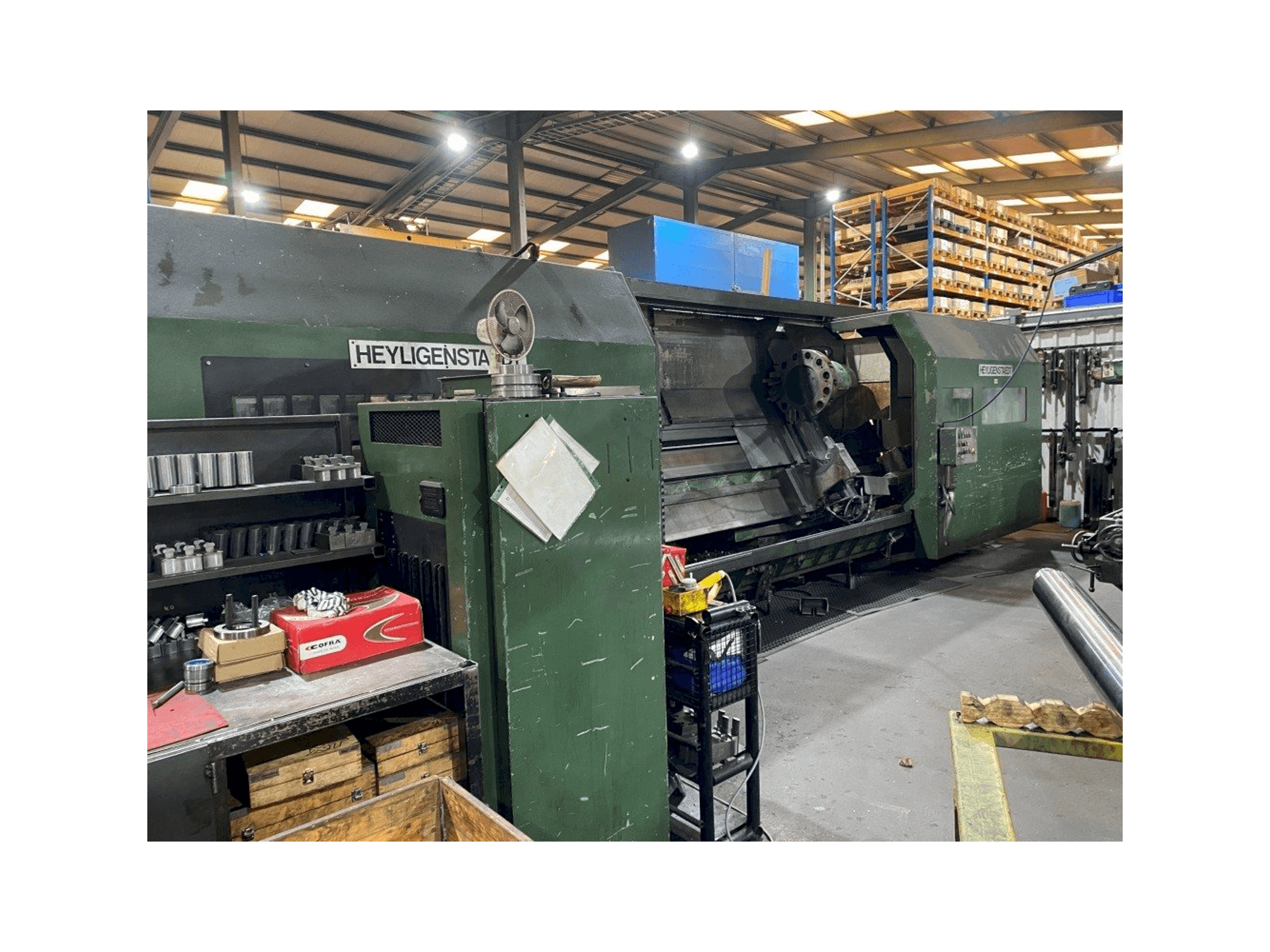

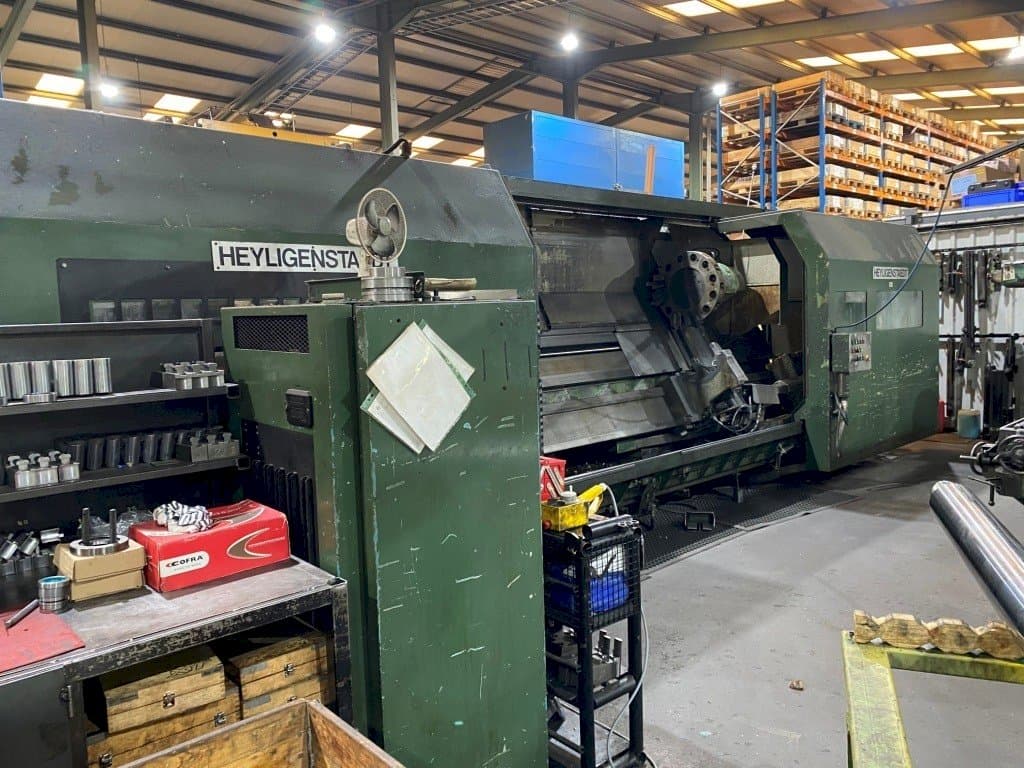

HEYLIGENSTAEDT Heynumat 21U Lathe

This HEYLIGENSTAEDT Heynumat 21U Lathe was built in Germany in the year 1982. It is operated with a Fanuc Series O-T control unit. This 2 axis machine can operate with a spindle speed up to 2000 rpm. It includes a 500 mm SMW hydraulic chuck, and a tool holders. Machine working well and still in production.

Overview

brand: HEYLIGENSTAEDT
year: 1982
MODEL: Heynumat 21U
application type: Turning
Location: Ireland
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - HEYLIGENSTAEDT Heynumat 21U

General Data

Measurements width: 9000 mm
Measurements depth: 2800 mm
Measurements height: 2600 mm
Machine weight: 20000 kg

Control Unit

Model: Series O-T
CNC main language: English
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 2000 1/MIN
Number of axis: 2

Workpiece

Workpiece x: 720 mm
Workpiece z: 4000 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12
Type of tool holder: VDI 60

Media

Main electronic connection: 400 V

Additional Equipment

- 500 mm SMW Hydraulic Chuck
- 2 x Hydraulic Steadies
- Tailstock
- Tool Holders

Additional Information

Machine history

Material type: Mildsteel
End product: Hydraulic cylinders

Machine Benefits

Technical Machine Benefits:
- - 4 meters between centres
- - Big robust machine
- - Machine working well and still in production

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
