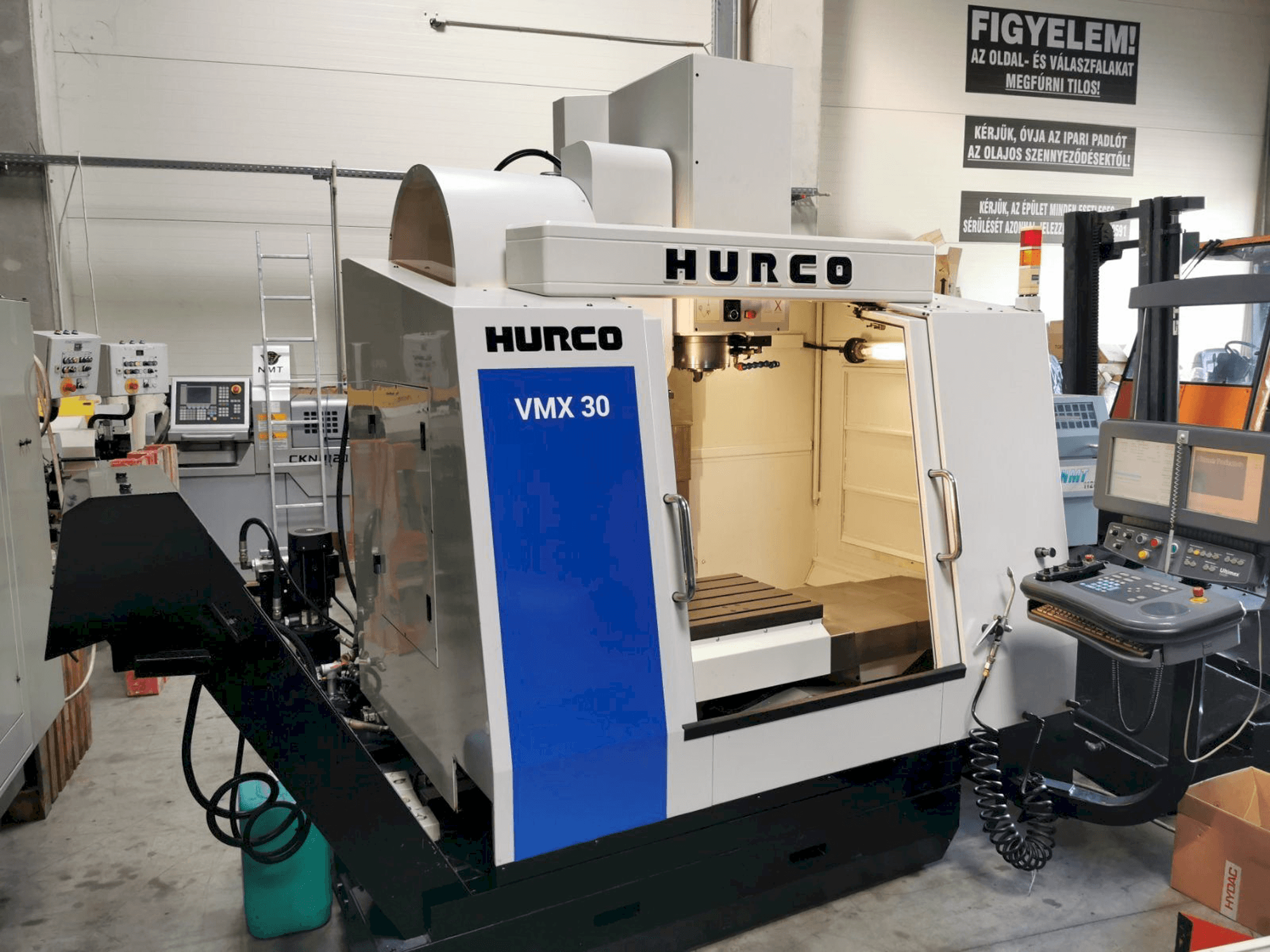

Hurco VMX30 Vertical Machining Center

This Hurco VMX30 Vertical Machining Center was manufactured in Taiwan in 2008. It has been working for 23335 hours of which 3109 are spindle hours. This 3 axis machine is operated through an Hurco ULTIMAX control unit. It works with a spindle speed up to 12000 rpm and includes tools magazine with 24-position lever derailleur.

Overview

brand: Hurco
year: 2008
MODEL: VMX30
production hours: 23335
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HURCO

Technical Information - Hurco VMX30

General Data

Measurements width: 2300 mm
Measurements depth: 2400 mm
Measurements height: 2700 mm
Machine weight: 4900 KG

Control Unit

Model: ULTIMAX
Brand: HURCO

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 11 kW
Tool taper: SK40
Number of axis: 3

Movement

X-AXIS Movement: 762 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 610 mm

Table

Outer length: 1020 mm
Outer width: 510 mm
Table load: 1350 KG

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 25 kVa
Internal cooling: Yes

Additional Equipment

- Tool magazine with 24-position lever derailleur
- ISNC, Rigid Tapping, Herical-Rampe Milling, Tool Material Library, SSFQ, AVG, Pocket / Islands Options
- Slippers

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Control unit with winmax software
- - Spindle cooling 20 bar
- - Spindle air conditioner
- - Cooling water system
- - Hinged chip carrier
Qualitative Machine Benefits:
- - Excellent condition, tested

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
