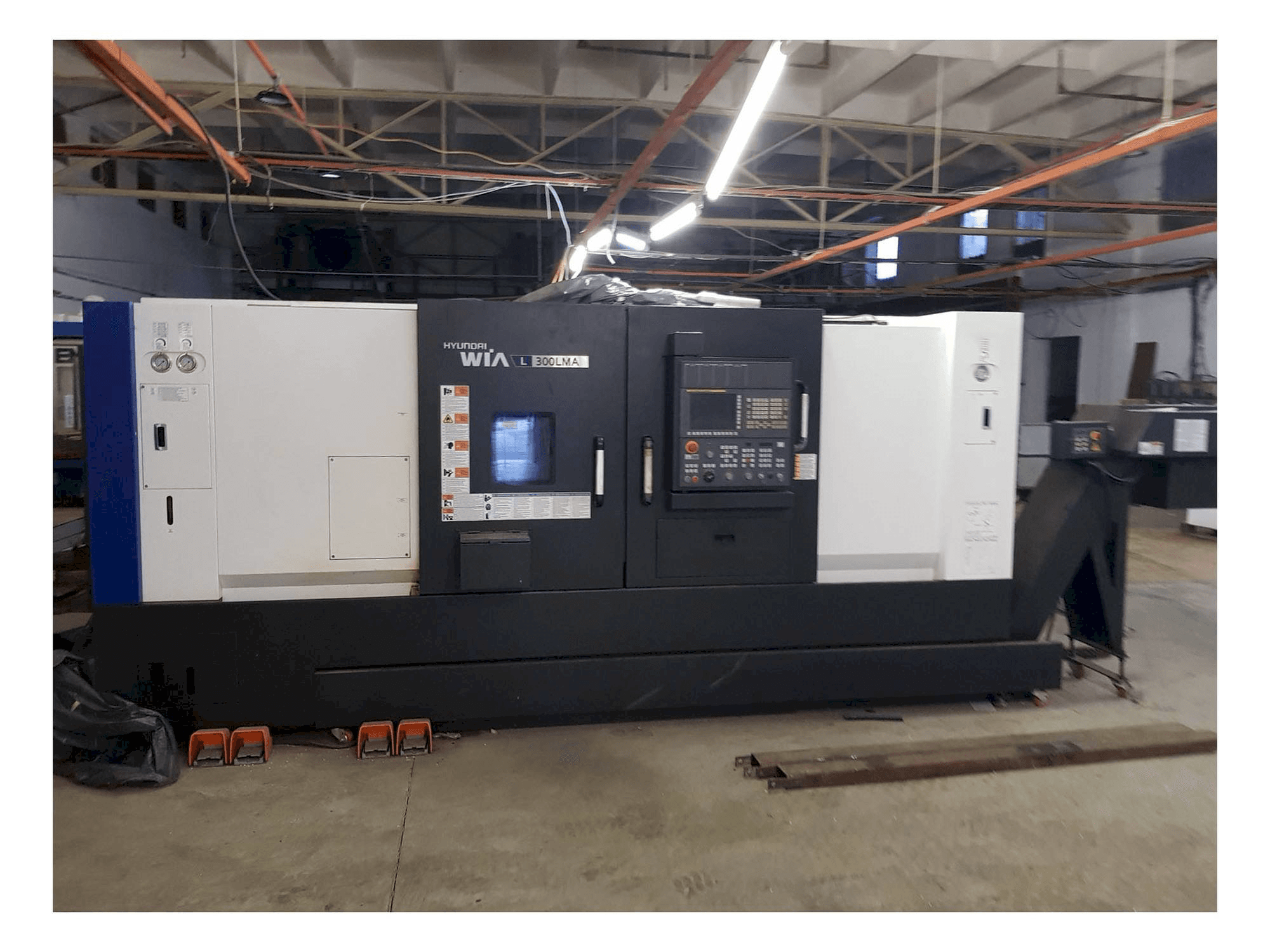

Hyundai Wia L300LMA Horizontal Lathe

This Hyundai Wia L300LMA Horizontal Lathe was made in 2017 in Korea and has only 421 production hours. It is equipped with a Fanuc Series 32i-B control unit. The machine has a spindle speed of 3500 rpm.

Overview

brand: Hyundai Wia
year: 2017
MODEL: L300LMA
production hours: 421
application type: Turning
Location: Hungary
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Hyundai Wia L300LMA

General Data

Measurements width: 2002 mm
Measurements depth: 4171 mm
Measurements height: 1997 mm
Machine weight: 7700 kg

Control Unit

Model: Series 32i-B
Brand: FANUC

Main drive

Spindle speed range: 3500 1/MIN
Spindle motor power: 22/18.5 kW

Tools

Slots in storage: 12

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Diameter over machine bed: 750 mm
- - Diameter over cross slide: 480 mm
- - Max. Machinable diameter: 410 mm
- - Max. Machinable length: 1280 mm
- - Chuck size main spindle: 10
- - Torque (max/running) {nm} 493,2/414,7
- - Max. Tool size (square tool clamp/circular tool clamp): 25/50 mm
- - Speed (x/z/b): 20/24 m/min
- - Range of motion (x/z/b) : 290/1350 mm
- - Range of movement of clamping of segment: 1350 mm
Qualitative Machine Benefits:
- - Lubricant tank volume: 1,8 l
- - Coolant tank volume: 270 l

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
