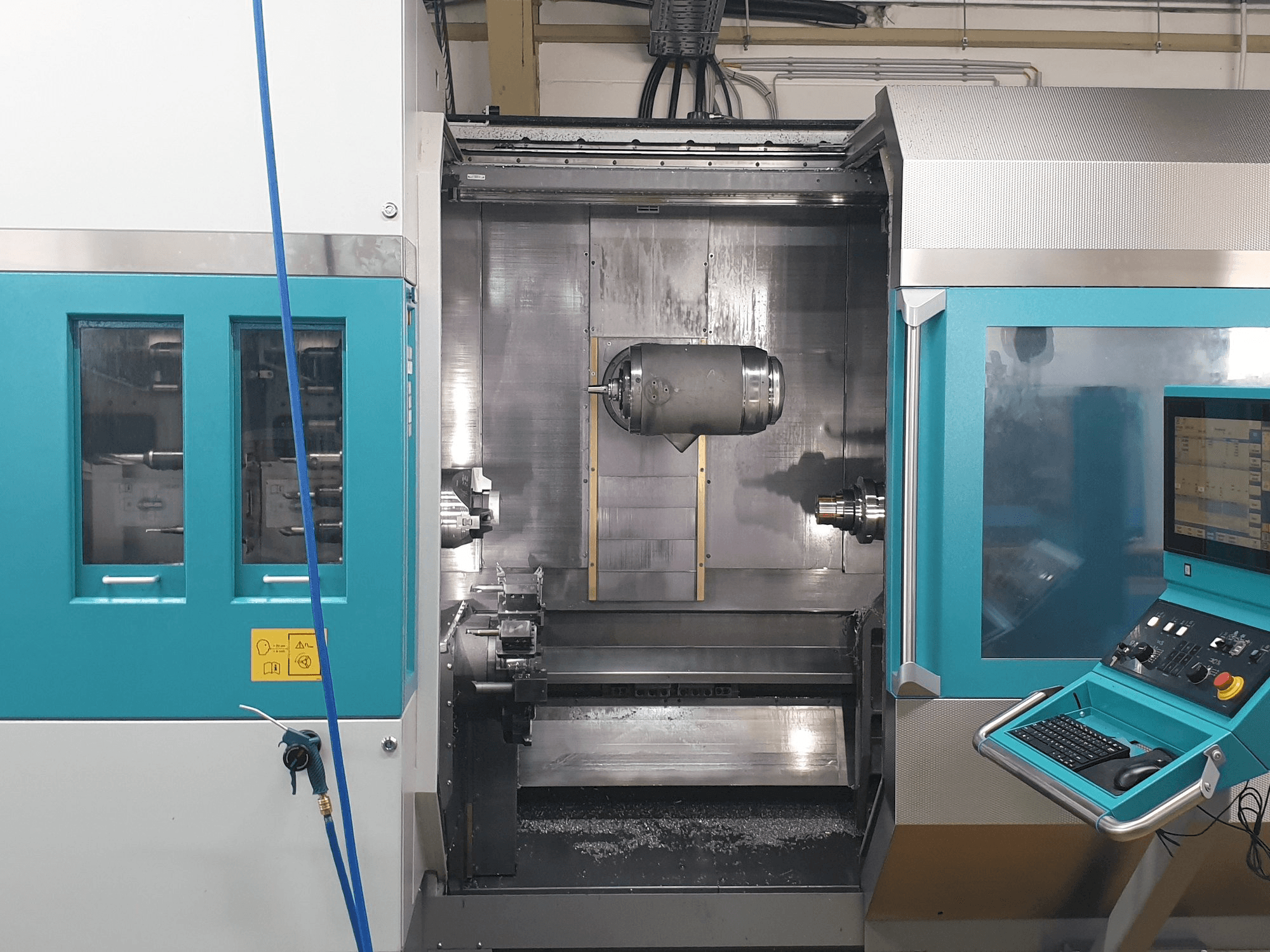

➤ Used Index G220 - 2017 - Lathe For Sale

This Index G220 Lathe was manufactured in Germany in 2017 and has been working for 11666 hours. This machine is equipped with a SIEMENS SINUMERIK 840D Control unit. It can perform with a spindle speed up to 3500 rpm.

Overview

brand: Index
year: 2017
MODEL: G220
production hours: 11666
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - Index G220

General Data

Measurements width: 4325 mm
Measurements depth: 2340 mm
Measurements height: 2550 mm
Machine weight: 16000 kg

Control Unit

Model: SINUMERIK 840D
CNC main language: Deutsch
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Number of spindles: 3 + 1 Revolver
Spindle speed range: 3500 1/MIN

Movement

X-AXIS Movement: +355 / 185 MM
Y-AXIS Movement: +80 / +-50 MM
Z-AXIS Movement: +1.040 / 1.000 MM
B-AXIS Movement: -50° / +230° MM
C-AXIS Movement: 1040 mm

Turret

Number of turrets: 12

Tools

Max weight: 3 kg
Type of tool holder: HSK-T63

Media

Main electronic connection: 400 V
Power consumption: 73 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- 100 Tool magazine
- 12 driven tools, VDI 30
- Gantry removal device with conveyor belt
- Against spindle (C2)Bar feeder

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turning length 1000 mm
Qualitative Machine Benefits:
- - Automatic door closing - opening

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
