➤ Used Index GS65 Horizontal Lathe For Sale | gindumac.com

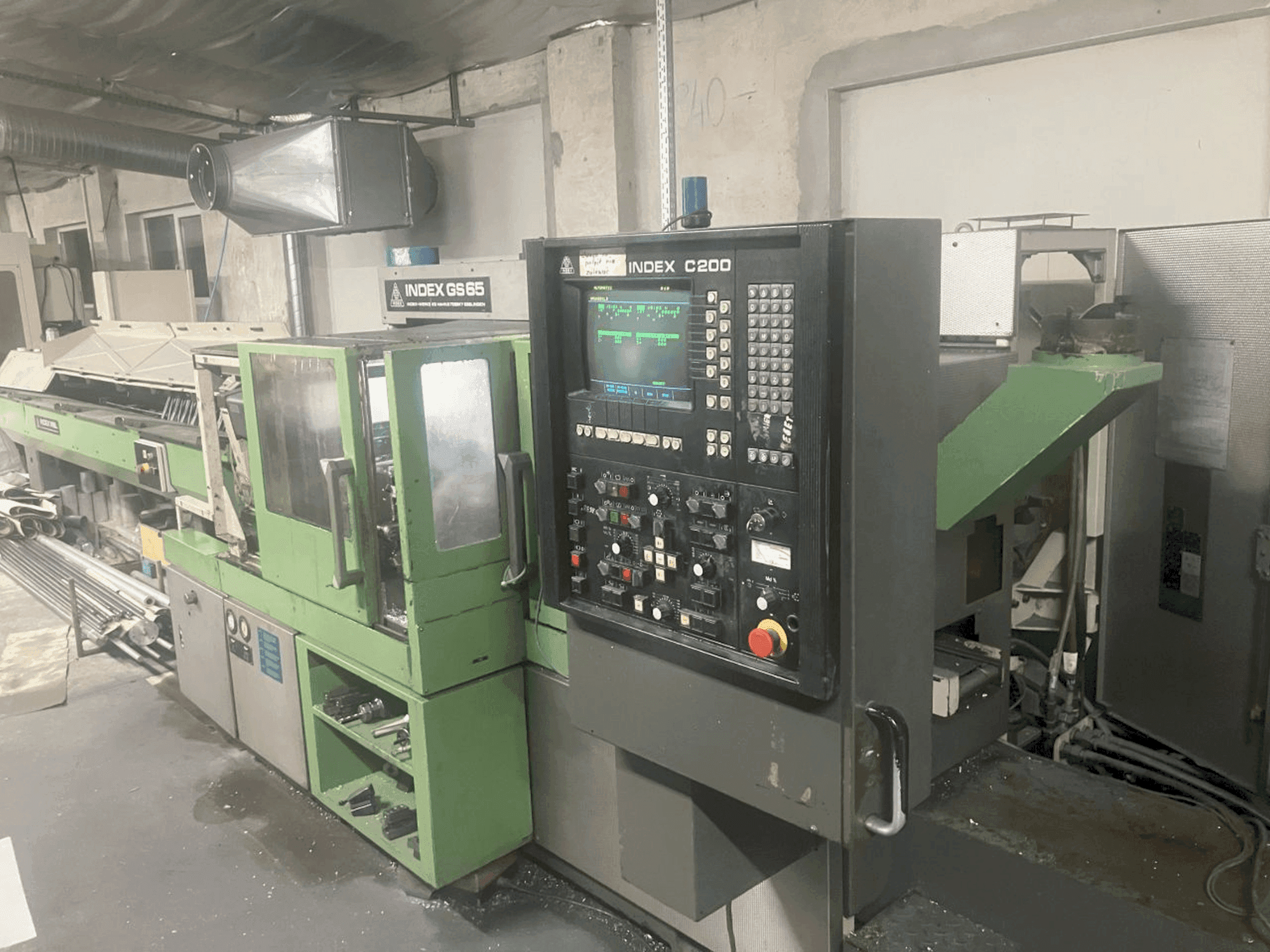

This 2-axis Index GS65 was manufactured in 1992. A robust horizontal turning machine, it offers precision and reliability for complex machining tasks. Consider the opportunity to buy this Index GS65 horizontal turning machine. Contact us for more information about this machine.

Overview

brand: Index
year: 1992
MODEL: GS65
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: INDEX

Technical Information - Index GS65

Control Unit

Brand: INDEX
Model: C200

Main drive

Spindle speed range: 5000 1/MIN
Number of axis: 2

Additional Equipment

- Bar feeder
- Slide travel Z-axis (longitudinal): Revolver 1: 550 mm / Revolver 2: 250 mm
- Slide travel X-axis (transverse): Revolver 1: 163 mm / Revolver 2: 140 mm
- Turning diameter: Revolver 1: 200 mm / Revolver 2: 280 mm
- Turning length: Revolver 1: 500 mm / Revolver 2: 250 mm
- Spindle bore: 65 mm / Clamping diameter: 200 mm / Spindle front diameter: 110 mm / Spindle nose (according to DIN 6353): 140 mm
- Power at 100% duty cycle (60% ED): 36 kW (43 kW) / Drive type: Direct drive / Speed range I: 25 to 2500 rpm / Torque at spindle (range I): 265 Nm (315 Nm) / Speed range II: 50 to 5000 rpm/ Torque at spindle (range II): 132 Nm (155 Nm)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle bore diameter: 65 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
