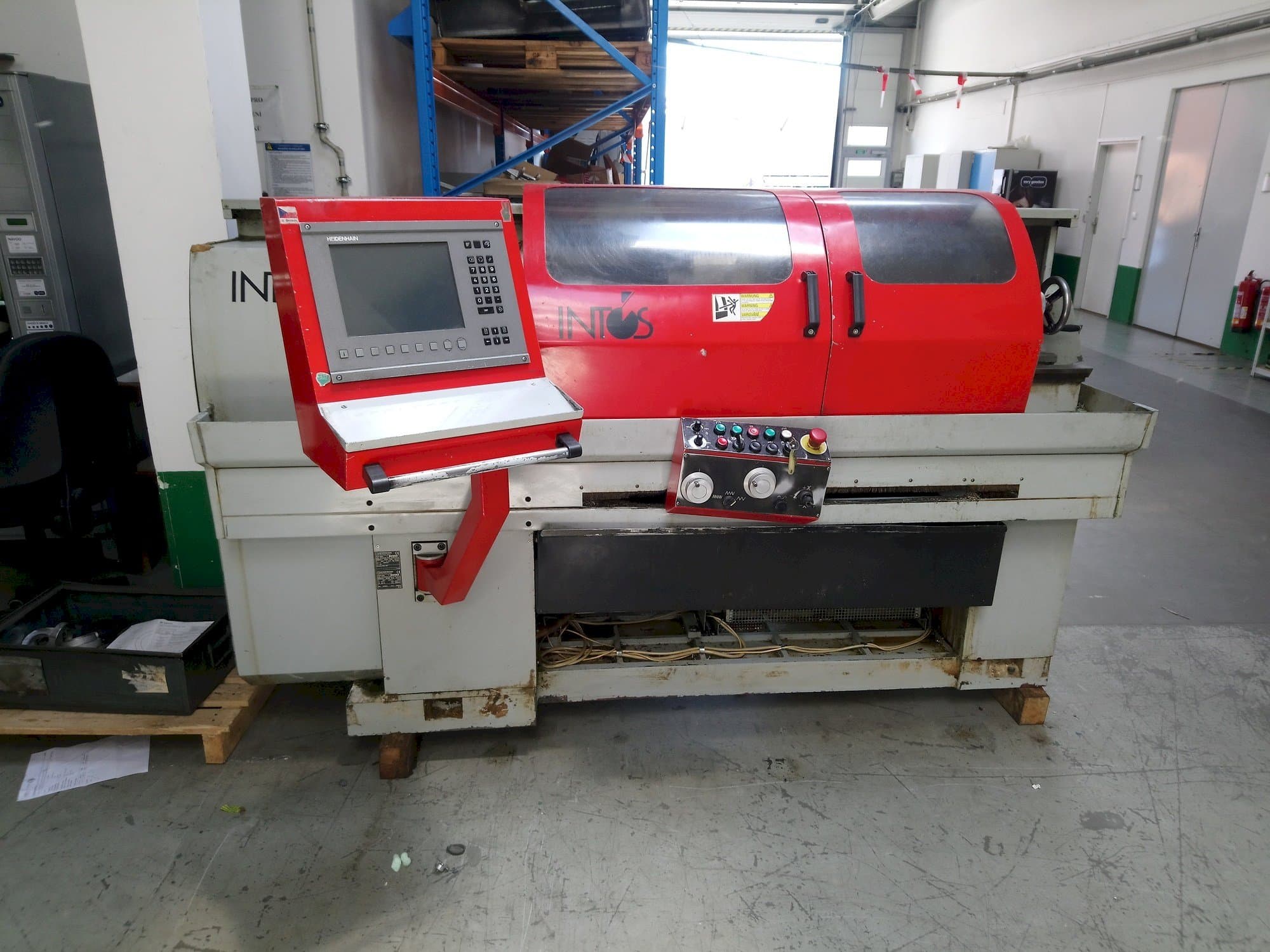

INTOS E-160 Lathe

This INTOS E-160 Lathe was manufactured in the Czech Republic in 2006 and has been working for 25000 hours, from which 9550 are spindle hours. Operated through HEIDENHAIN Plus 4110 Control unit, this machine can work with a spindle speed up to 4000 rpm.

Overview

brand: INTOS
year: 2006
MODEL: E-160
production hours: 9550
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - INTOS E-160

General Data

Measurements width: 2317 mm
Measurements depth: 1565 mm
Measurements height: 1415 mm
Machine weight: 1500 kg

Control Unit

Model: Plus 4110
CNC main language: Czech
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 4000 1/MIN
Spindle motor power: 7.5 kW

Movement

X-AXIS Movement: 165 mm
Z-AXIS Movement: 920 mm

Workpiece

Workpiece weight: 80 kg

Turret

Number of turrets: 1

Additional Equipment

- Tool holders

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Sauter turret with 8 tool positions
- - Swing over saddle 155 mm
- - Swing over bed 320/200 (sauter head) mm
- - Turning length 1000 mm
- - Spindle bore 40 mm
- - Tailstock quill diameter 50 mm (morse 3)
Qualitative Machine Benefits:
- - Good condition and accuracies

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
