IXION - IA 3 TLFSI-DRI-IXI-2002-00001

Name: IXION IA 3 TLF
Brand: IXION
SKU: SI-DRI-IXI-2002-00001
Price: 35000 EUR
Availability: InStock

35,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used IXION IA 3 TLF - Drill For Sale | gindumac.com

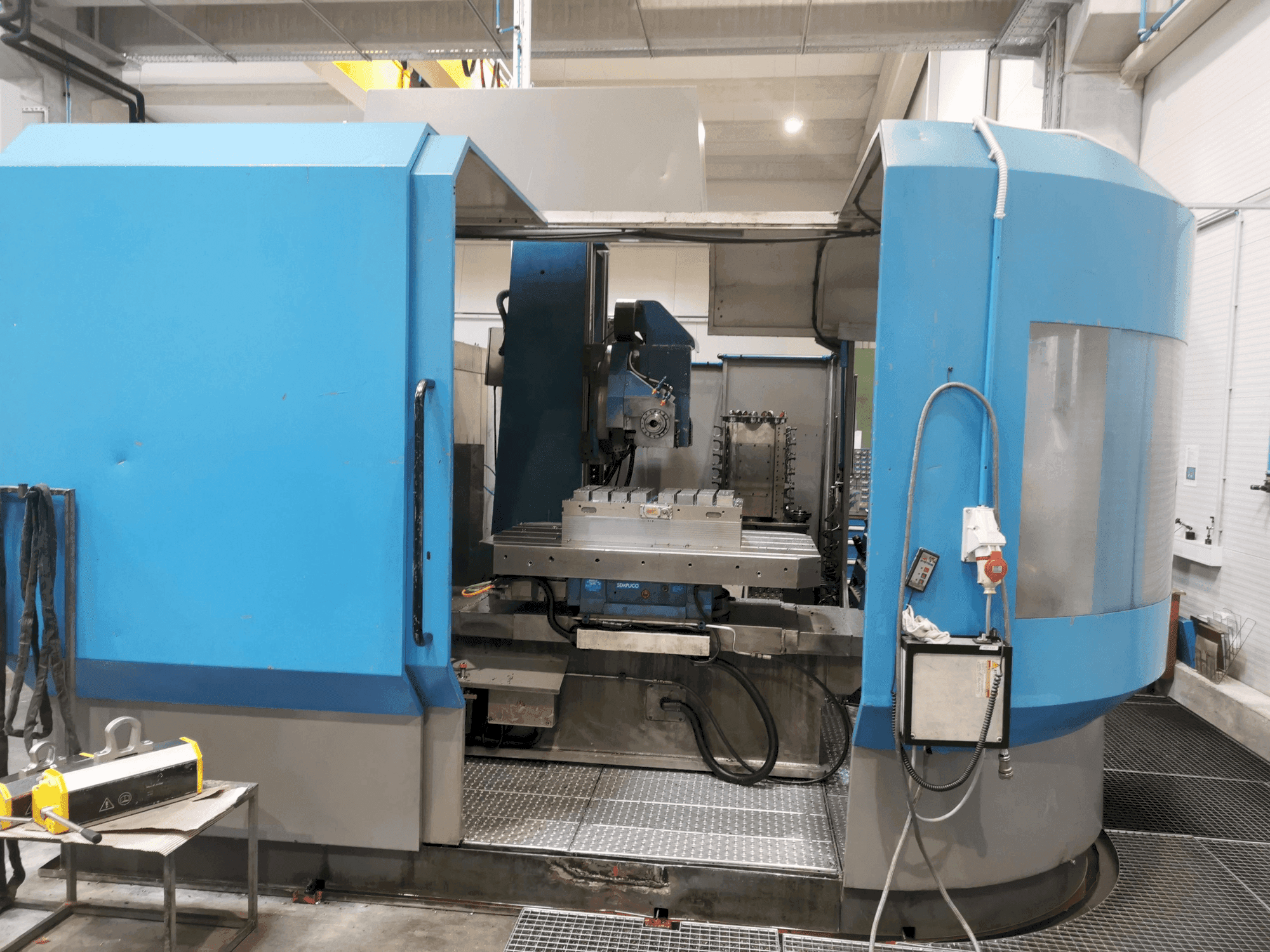

This 4-axis IXION IA 3 TLF drilling machine was manufactured in 2002. It features a deep drilling diameter range of 4 to 32 mm, with a maximum of 40 mm, and a maximum drilling depth of 1,300 mm. The machine is equipped with a high-capacity milling spindle, supporting speeds from 80 to 6000 rpm and a power of 7.5 kW. It also includes a robust SIEMENS Sinumerik 840D controller. For more information about this drilling machine, please reach out to us.

Overview

brand: IXION
year: 2002
MODEL: IA 3 TLF
application type: Other Machine Tools
Location: Slovenia
machine type: Drilling Machine (Metal)
availability: Immediately
control unit brand: SIEMENS

Technical Information - IXION IA 3 TLF

Control Unit

Model: Sinumerik 840D
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 6000 rpm 1/MIN
Spindle motor power: 7.5 kW (13 kW optional)
Tool taper: HSK 63, DIN 69871
Number of axis: 4

Movement

X-AXIS Movement: 1200/1600 mm
Y-AXIS Movement: 800/1200 mm
Z-AXIS Movement: 700 mm

Table

Outer length: 1000 mm
Outer width: 1000 mm
Table load: 7000/10000 kg

Additional Equipment

- Combined milling coordinate transformation
- Integrated tool monitoring
- Digital AC drive

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Deep drilling diameter with bta tools: 4 to 32 mm (up to 40 mm max)
- - Maximum drilling depth: 1,300 mm
- - Maximal feed rate in a single pass: 200 cmm
- - Possible re-positioning for drilling: yes
- - Rotary table max load capacity: 360 kg
- - Table rotation: 360°, 25 to 15 rpm
Qualitative Machine Benefits:
- - Ce compliant machine construction

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
