KASTO - tec A 4DE-SAW-KAS-2001-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

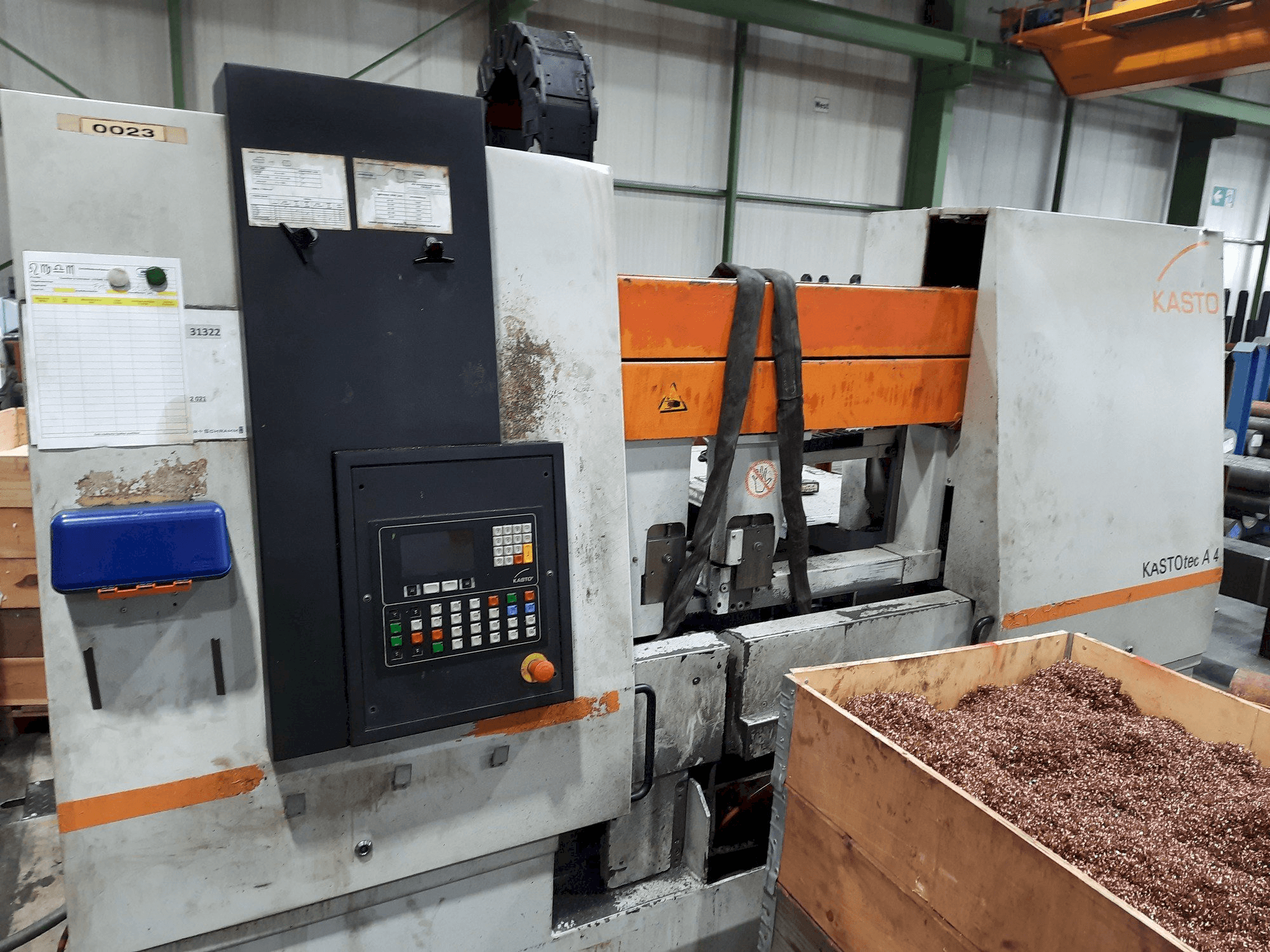

This KASTO tec A 4 Sawing Machine was manufactured in the year 2001. It is equipped with a control unit of the same brand. This machine can operate with a cutting range round 430 mm and a cutting speed infinitely variable 50-/60-Hz version up to 12 - 120 m/min.

Overview

brand: KASTO
year: 2001
MODEL: tec A 4
application type: Sawing
Location: Germany
machine type: Metal Band Saw
availability: Sold

Technical Information - KASTO tec A 4

General Data

Measurements width: 4610 mm
Measurements depth: 2140 mm
Measurements height: 2410 mm
Machine weight: 4300 kg

Media

Power consumption: 9.5 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Cutting range round 430 mm
- - Cutting area square h x w 430 x 430 mm
- - Cutting area flat h x w 430 x 430 mm
- - Bundle cutting range h x w (option) 430 x 430 mm
- - Clamping range 0 - 430 mm
- - Smallest dimension to be cut 10 x 10 mm
- - Smallest cut-off length 6 mm
- - Shortest remaining piece length in automatic mode (only possible with geometrically perfect surfaces) 35 mm
- - Shortest remaining piece length in single cut 10 mm
- - Material support height 700 mm; height (saw frame lowered) approx. 2195 mm
Qualitative Machine Benefits:
- - Drive power saw motor 5. 5 kw; drive power at impeller 5. 23 kw
- - Cutting speed infinitely variable 50-/60-hz version 12 - 120 m/min
- - Automatic material feed length single 600 mm
- - Automatic material feed length multiple 9999 mm
- - Clamping force machine vice 2000 - 8000 n
- - Clamping force feed vice 2000 - 15000 n
- - Saw blade dimensions 6830 x 41 x 1. 3 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
