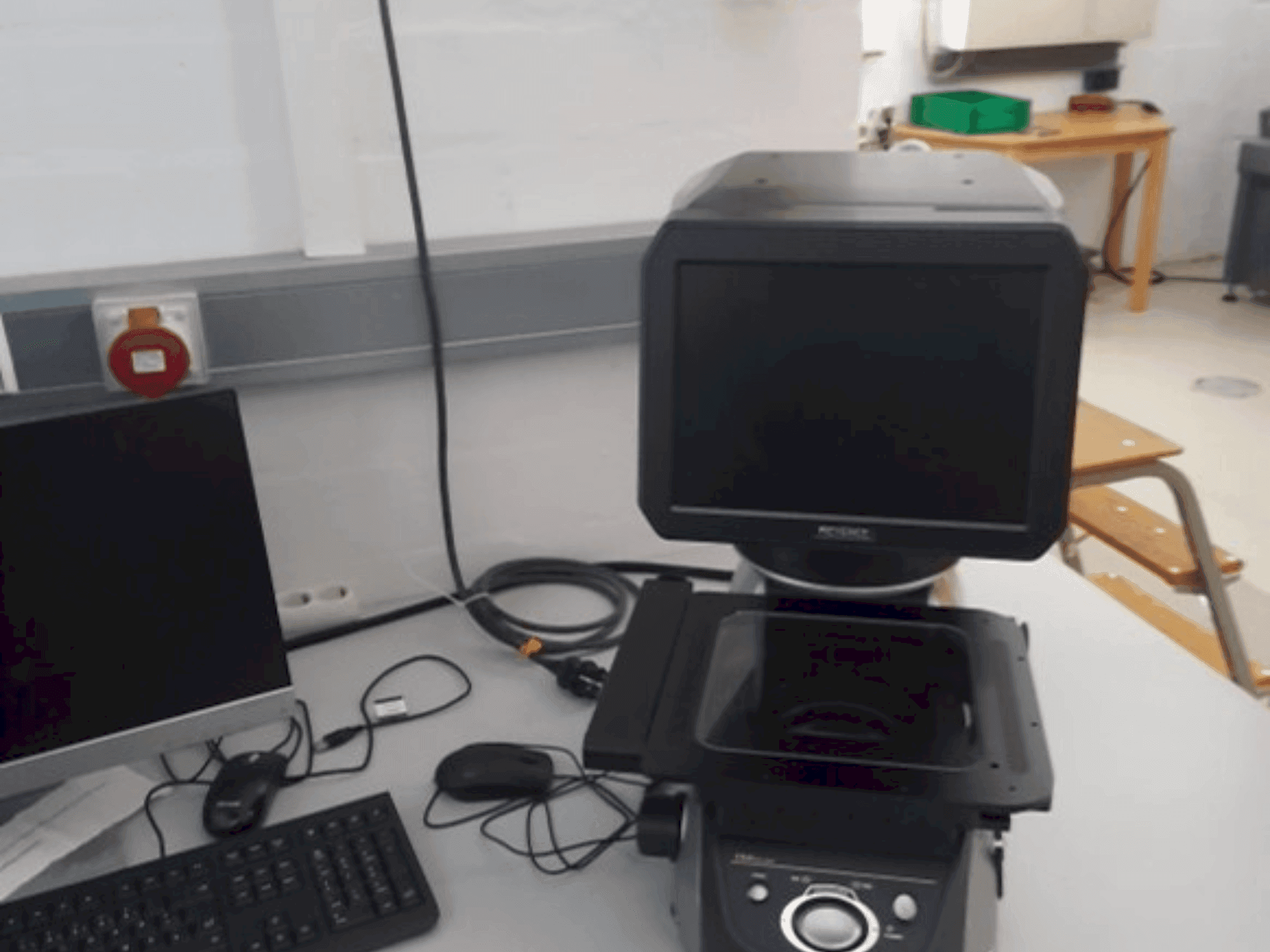

KEYENCE - IM-7020DE-MEA-KEY-2017-00002

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Image capture element: s/w-cmos, 1", 6. 6 megapixels
  • - Display: lcd monitor, 10. 4", xga (1024×768)
  • - Light collecting objective: double telecentric objective

Extra information

• - Measurement Field Wide Field Measurement Mode: 200 mm x 200 mm (4 x R50) High Precision Measurement Mode: 125 mm x 125 mm Display Resolution Repeatability: Wide Field Measurement Mode: Without stage: ±1 µm With stage: ±2 µm High Precision Measurement Mode: Without stage: ±0.5 µm With stage: +1.5 µm Measurement Accuracy Wide Field Measurement Mode: Normal Measurement: ±5 µm Linked Measurement: ±(7 + 0.02L) µm² High Precision Measurement Mode: Normal Measurement: ±2 µm³ Linked Measurement: ±(4 + 0.02L) µm⁴ Light Sensor Measurement Measurable Range (XY): 90 mm x 90 mm Max. Measurement Depth: 30 mm Diameter of Light Probe: 3 mm Measurement Force: 0.015 N Repeatability: +2 µm'5 Measurement Accuracy: ±(8 + 0.02L) µm External Control Inputs and Outputs External Remote Control Input: No voltage input (Contact/Solid State) External Output OK/N.i.O./FAIL/MEASURE: PhotoMOS Output Rated Load: 24 VDC, 0.5 A Maximum Switching Resistance: 50 mΩ Interfaces LAN: RJ-45 (10BASE-T/100BASE-TX/1000BASE-T) USB 2.0 Ports: 6 connectors (front: 2, rear: 4) Storage Hard Drive: 500 GB Environmental Conditions Ambient Temperature: +10 to 35° C Relative Humidity: 20 to 80% (no condensation) Pollution Degree: 2 Overvoltage Category: II Lighting System Through-light: Telecentric through-light Incident Light: Four-part lighting from marked angles (electrically), slit ring lighting Object Table XY Object Table: Movement Range: 100 mm x 100 mm (electrical) Max. Load Capacity: 5 kg Z Object Table: Movement Range: 75 mm (electrical) Power Supply Supply Voltage: 100 to 240 AC, 50/60 Hz Power Consumption: Max. 430 VA Weight (kg) Controller: Approx. 8 kg Measurement Head: Approx. 31 kg
