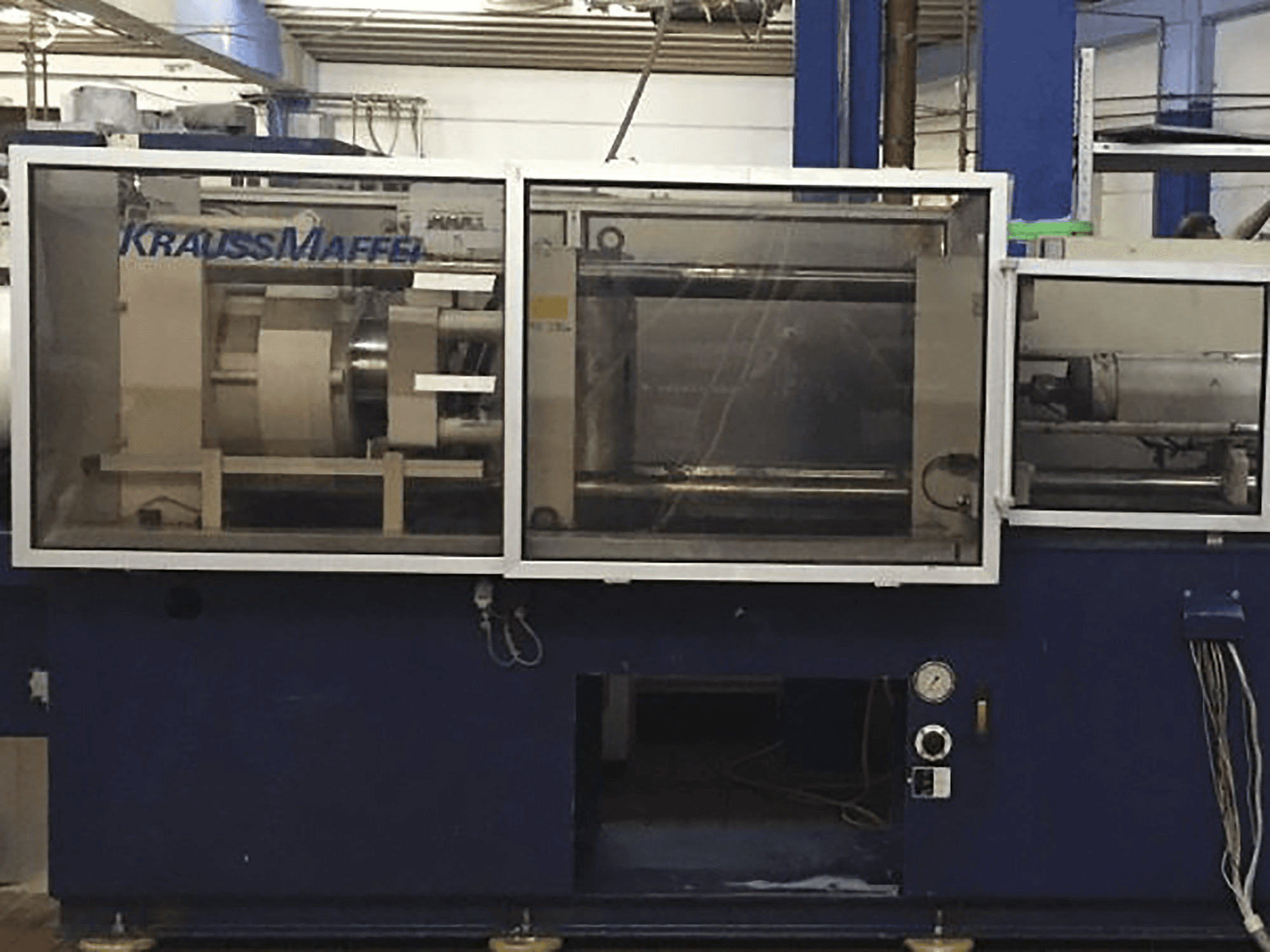

Front view of Krauss Maffei 150-620 B1 Machine

Krauss Maffei - 150-620 B1DE-INJ-KRA-1992-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Krauss Maffei 150-620 B1 Injection Moulding Machine was manufactured in Germany in 1992 and is operated through a Krauss Maffei Control unit. This model offers a clamping force of 1500 kN and a maximum injection pressure of 2022 bar.

Overview

  • brand: Krauss Maffei
  • year: 1992
  • MODEL: 150-620 B1
  • application type: Injection Moulding
  • Location: Germany
  • machine type: Hydraulic Injection Moulding Machine
  • availability: Sold
  • control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 150-620 B1

General Data

  • Machine weight: 7500 kg

Control Unit

  • Brand: KRAUSS MAFFEI

Injection Unit

  • Screw diameter: 45/50/55 mm
  • Stroke volume: 305/377/456 cm3 CM³
  • Injection pressure: 2022/1638/1354 bar
  • Plasticizing rate max.: 146/180/218 cm3/s
  • Heating capacity: 25.1 kW
  • Adjustable heating zones: 5

Clamping unit

  • Clamping force: 1500 kN
  • Opening stroke: 900 mm
  • Distance between bars: 500x450 mm
  • Size of mold platens: 720x670 mm
  • Ejector stroke: 150 mm
  • Ejector force for / back: 23.5 kN

Media

  • Pump drive power: 22 kW
  • Oil tank: 550 L

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
