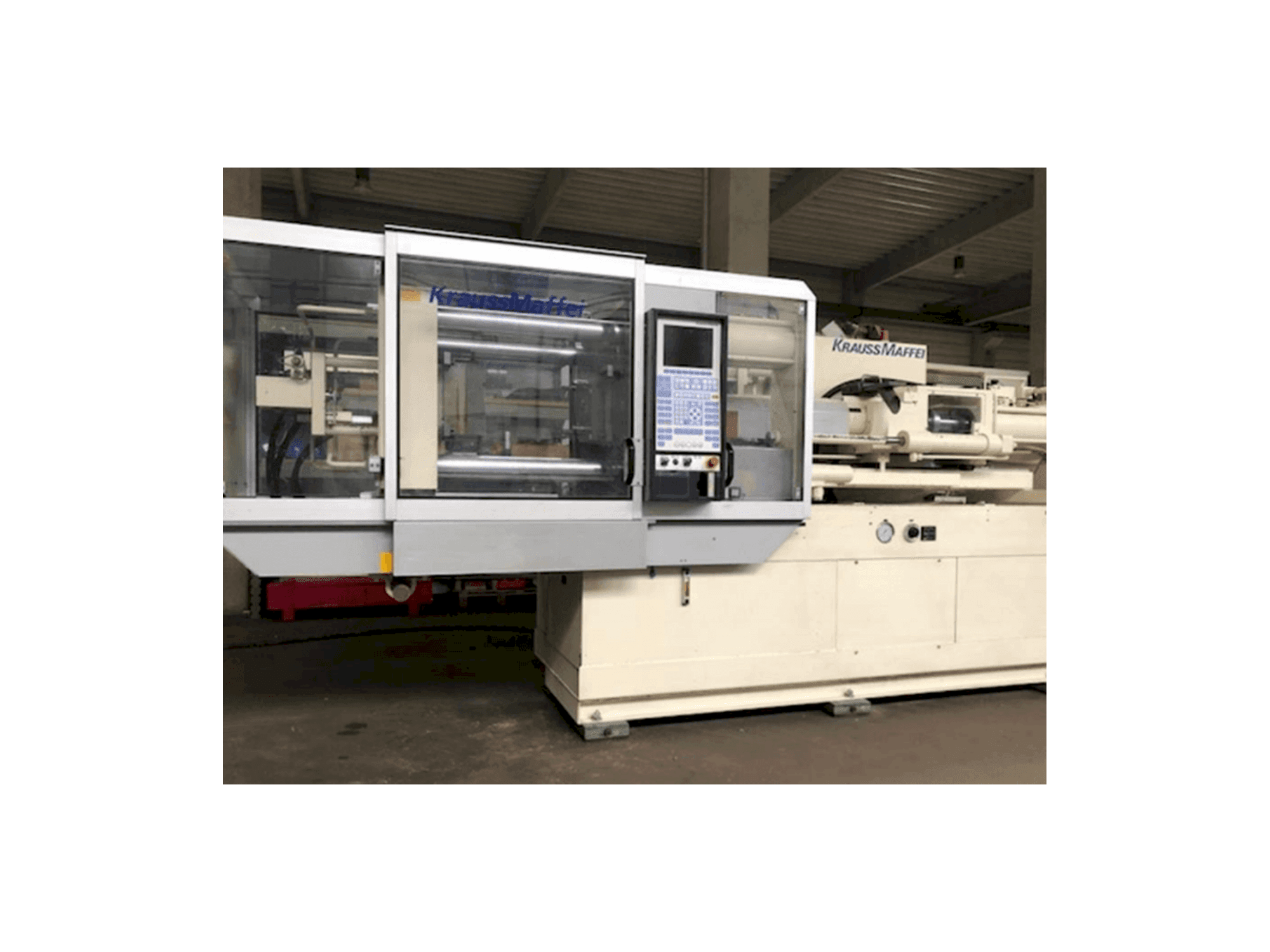

Front view of Krauss Maffei 150-700 C2  machine

Krauss Maffei - 150-1000 C1DE-INJ-KRA-2000-00010

7,900 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This KRAUSS MAFFEI 150-700 C1 Injection moulding machine was manufactured in 2000 in Germany. This machine offers a clamping force of 1500 kN and features a mold mounting platen sized at 780 mm x 790 mm. With a tool opening stroke of 600 mm and an opening width of 900 mm. Screw diameter options include 45 mm, 50 mm, and 55 mm, while injection pressures range from 1564 bar to 2336 bar. The screw speed reaches up to 356 rpm, with a dry running speed of 1700 l/min. It requires approximately 345 liters of oil filling. Contact us anytime for further information.

Overview

  • brand: Krauss Maffei
  • year: 2000
  • MODEL: 150-1000 C1
  • production hours: 47059
  • application type: Injection Moulding
  • Location: Germany
  • machine type: Hydraulic Injection Moulding Machine
  • availability: Immediately

Technical Information - Krauss Maffei 150-1000 C1

General Data

  • Measurements width: 1510 MM
  • Measurements depth: 4660 MM
  • Measurements height: 2190 MM
  • Machine weight: 6300 KG

Main drive

  • Stroke: 150mm

Injection Unit

  • Screw diameter: 50mm
  • Injection pressure: 2336/1892/1564 bar

Clamping unit

  • Clamping force: 1500 KN
  • Opening stroke: 600
  • Size of mold platens: 780 x 790

    Additional Equipment

    • - hydraulic ejector
    • - injection unit SP1000
    • - L/D ratio 22mm
    • - injection pressure 2304 bar
    • - stroke/D ratio 4.4 bar / stroke volume 432cm³
    • - Shot weight in PS 393g
    • - screw drive power 31 kW
    • - Nozzlealage force 110 kN

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Opening width: 900mm / size of the mould mounting platen 780 x 790mm
        • - Dry running speed: 1700l/min / mould opening stroke 600mm / mould mounting height 300mm
        • - Oil filling: approx. 345l
        • - Screw speed standard/ze 255/356
        • - Screw speed nom. /max. 256/410
        • - Spray pressure: 2304
        • - Clamping force 1500 kn
        • - Opening width 900mm
        • - Force forwards/backwards 22/10 kn

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
