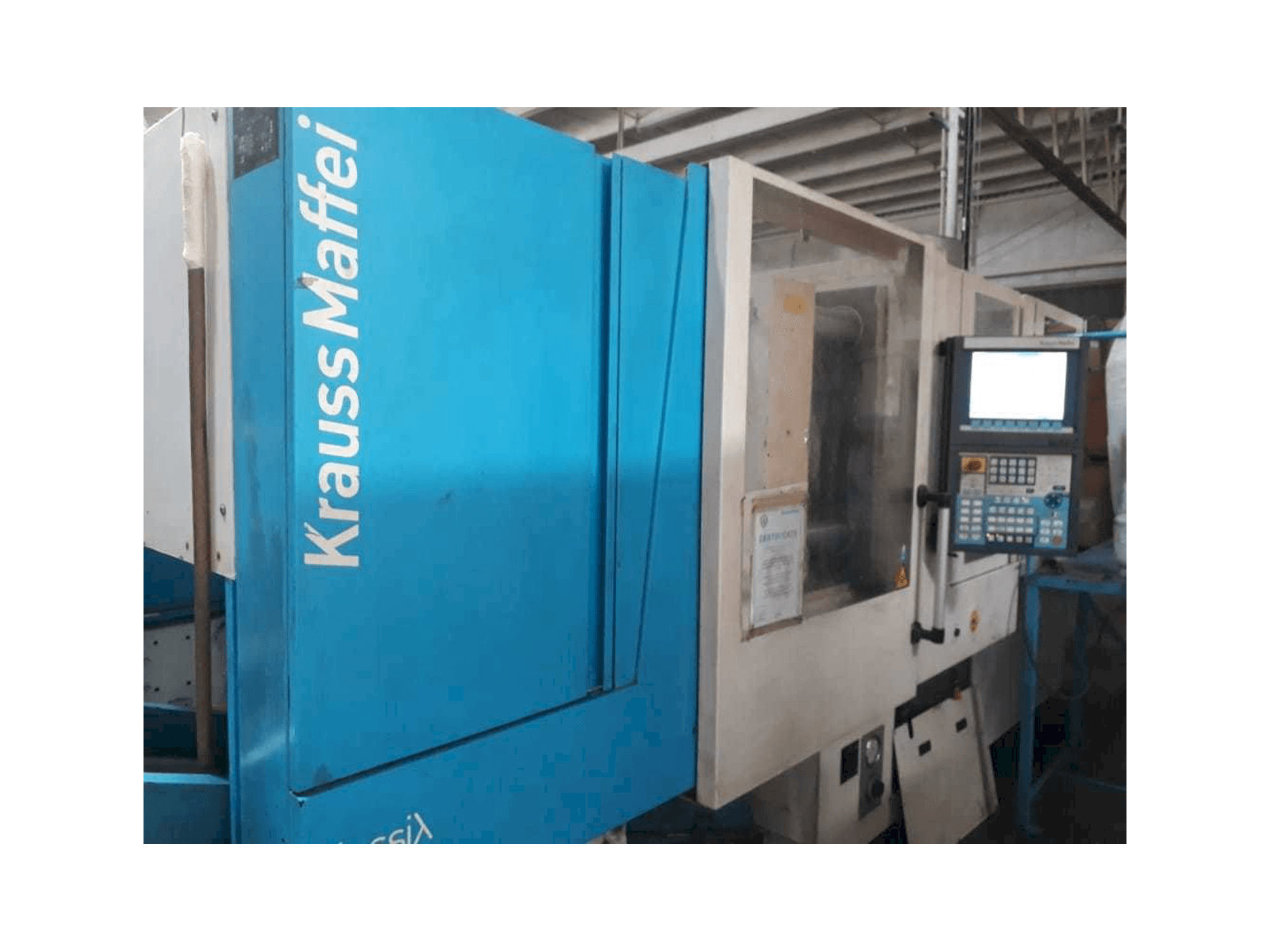

Krauss Maffei 160/380 CX Injection Moulding Machine

This Krauss Maffei 160/380 CX Injection Moulding Machine was manufactured in the year 2010. This machine can work with a clamping force of 1600 kN and an injection pressure of 1892 bar. It presents perfectly good conditions.

Overview

brand: Krauss Maffei
year: 2010
MODEL: 160/380 CX
application type: Injection Moulding
Location: Mexico
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Krauss Maffei 160/380 CX

General Data

Measurements width: 4930 mm
Measurements depth: 1620 mm
Measurements height: 2040 mm
Machine weight: 6100 kg

Injection Unit

Screw diameter: 50 mm
Shot weight: 357 (g)
Stroke volume: 393 CM³
Injection pressure: 1892 bar
Plasticizing rate max.: 36 g/s
Screw speed: 265 1/min
Adjustable heating zones: 5
Nozzle pressure: 50 kN

Clamping unit

Clamping force: 1600 kN
Opening stroke: 650 mm
Max open daylight: 950 mm
Distance between bars: 520 x 520 mm
Mould height min: 300 mm
Size of mold platens: 820 x 845 mm
Ejector stroke: 150 mm
Ejector force for / back: 23/10 kN

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
