Krauss Maffei - 420-3000 CXPL-INJ-KRA-2011-00002
Do you have further questions? Contact us.
![sales contact](https://s3.eu-central-1.amazonaws.com/gindumac/staff/profile_pictures/borja-garcia.png)
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
![whatsapp](https://gindumac.s3.eu-central-1.amazonaws.com/images/email-icons/whatsapp.png)
- GINDUMAC
- Products
- Plastics Processing Machinery
- ➤ Used Krauss Maffei 420-3000 CX For sale | gindumac.com

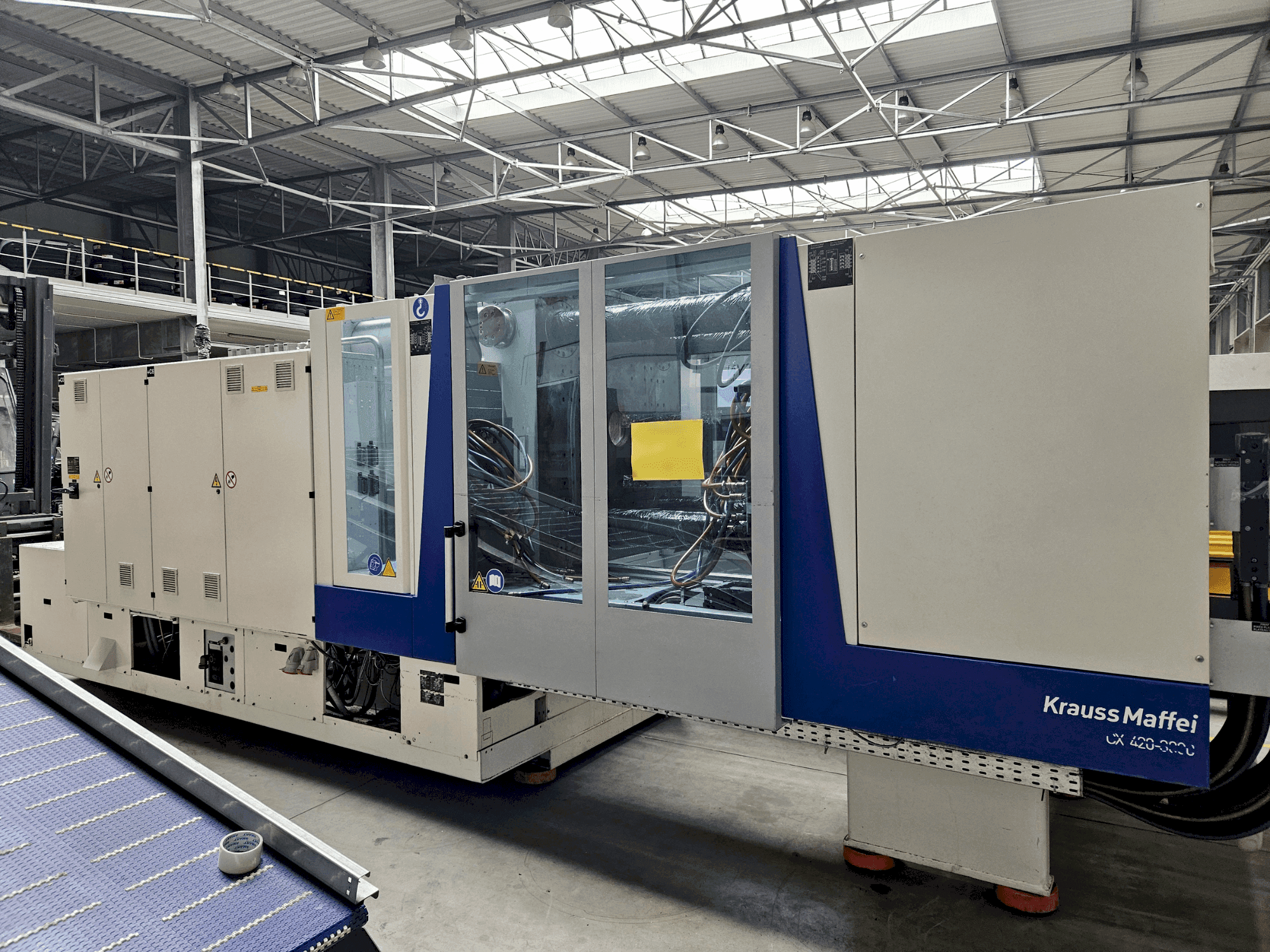

This Krauss Maffei 420-3000 CX injection moulding machine was manufactured in 2011. It features a robust clamping force of 4200 kN and a screw diameter of 80 mm, suitable for high-precision molding. The machine dimensions are 7.3 x 2.6 x 2.5 m, and it weighs 25500 kg, ensuring stability and durability. Ideal for those looking to enhance their production capabilities with a reliable machine. For more information about this injection moulding machine, please reach out to us.
Overview
- brand: Krauss Maffei
- year: 2011
- MODEL: 420-3000 CX
- application type: Injection Moulding
- Location: Poland
- machine type: Hydraulic Injection Moulding Machine
- availability: Immediately
Technical Information - Krauss Maffei 420-3000 CX
General Data
- Measurements width: 2600 MM
- Measurements depth: 7300 MM
- Measurements height: 2500 MM
- Machine weight: 25500 KG
Control Unit
- Model: MC5 3.3
Injection Unit
- Screw diameter: 80 mm
- Shot weight: 1464 g (for PS)
- Stroke volume: 1608 cm3 CM³
- Injection pressure: 1856 bar
- Adjustable heating zones: 7
Clamping unit
- Clamping force: 4200 kn
- Opening stroke: 124.7 / 102.4 kN
- Mould height min: 380 mm
- Size of mold platens: 1270 x 1200 mm
- Ejector stroke: 250 mm
Additional Information
- Technical Machine Benefits:
- - Mold opening stroke: 1020 mm
- - Tie bar spacing: 800 x 800 mm
- - Number of dry cycles according to euromap 6: 1200 l/h
- - Maximum platen stroke: 1400 mm
- - Nozzle radius: 15 mm
- - Nozzle orifice diameter: 6 mm
- - Main electronic connection: 400v 3n~ 50hz
- - Pump drive power: 75 kw
- - High injection pressure, large shot volume
- - Consistent performance, robust clamping unit
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
