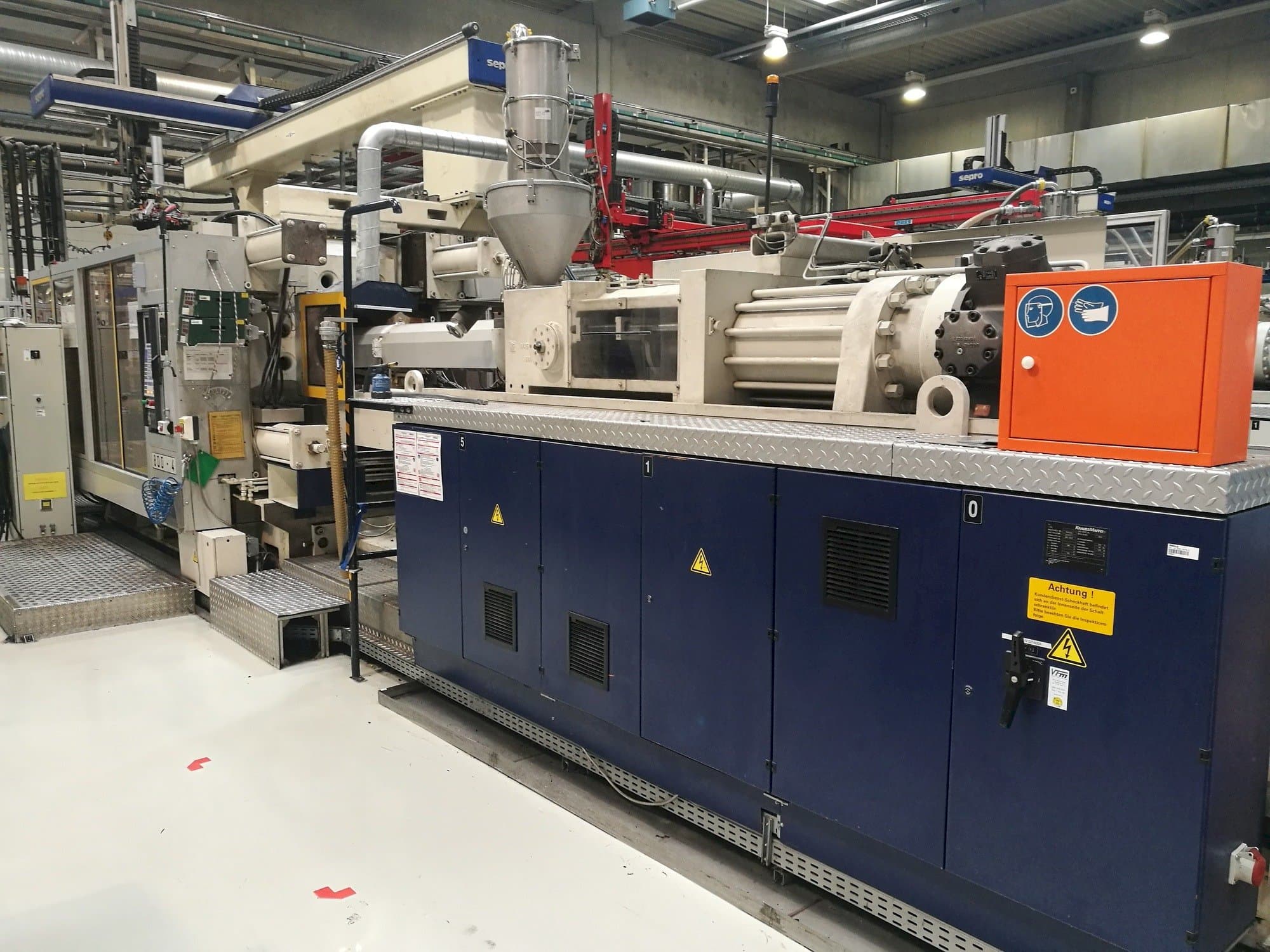

Krauss Maffei 800-5000 MC Injection Moulding Machine

This Krauss Maffei 800-5000 MC Injection Moulding Machine was built in the year 2000 in Germany and has been working for 60628 hours. Equipped with a Krauss Maffei MC 4 Control unit, this machine incorporates a clamping force of 8000 kN.

Overview

brand: Krauss Maffei
year: 2000
MODEL: 800-5000 MC
production hours: 60628
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 800-5000 MC

General Data

Measurements width: 10150 mm
Measurements depth: 2800 mm
Measurements height: 2390 mm
Machine weight: 43000 kg

Control Unit

Model: MC 4
CNC main language: german
CNC language customizable: Yes
Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 90 mm
Stroke volume: 2262 CM³
Injection pressure: 2205 bar
Adjustable heating zones: 8

Clamping unit

Clamping force: 8000 kN
Opening stroke: 2000 mm
Distance between bars: 1120 mm
Mould height min: 750 mm
Mould height max: 1250 mm
Size of mold platens: 1600x1510 mm

Media

Main electronic connection: 420 V

Additional Equipment

- 5+1 core train
- customized software solutions
- Priamus Software
- nozzle closure
- stäubli clamping system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
