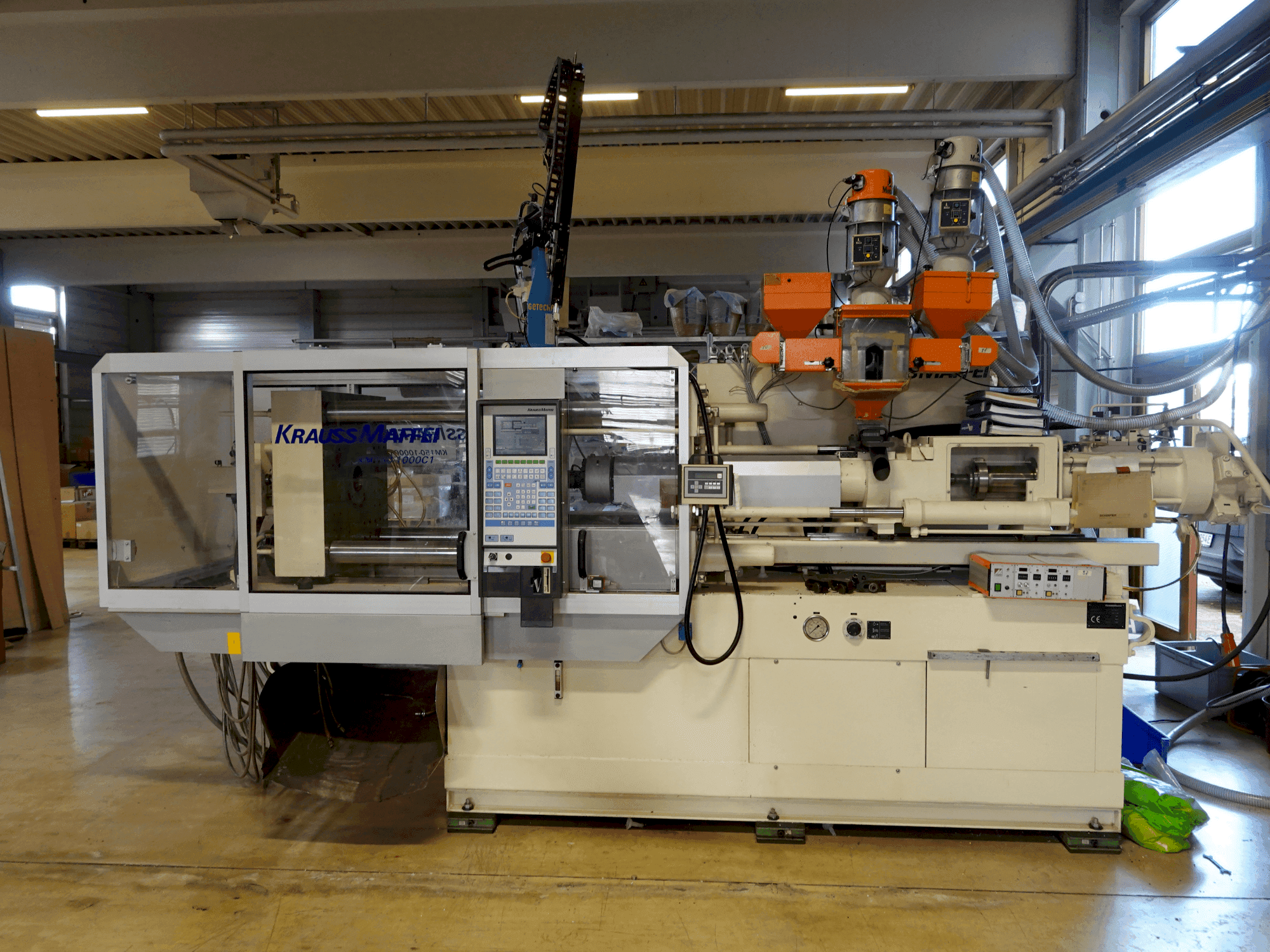

➤ Used Krauss Maffei KM 150-1000 C1 | Injection Moulding

This hydraulic injection moulding machine was manufactured in 1997. It features a clamping force of 1500 kN and a screw diameter of 55 mm, suitable for precise injection moulding processes. The machine dimensions are 4.97 x 1.48 x 2.16 m, and it weighs 8 tonnes. If you are looking to get high quality moulding capabilities consider the Krauss Maffei KM 150-1000 C1 machine we have for sale. Contact us for more information about this machine.

Overview

brand: Krauss Maffei
year: 1997
MODEL: KM 150-1000 C1
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Immediately

Technical Information - Krauss Maffei KM 150-1000 C1

General Data

Measurements width: 1480 MM
Measurements depth: 4970 MM
Measurements height: 2160 MM
Machine weight: 8000 KG

Injection Unit

Screw diameter: 55 mm
Shot weight: 476 g
Stroke volume: 523 cm³
Injection pressure: 1904 bar
Screw speed: 196/280 1/min

Clamping unit

Clamping force: 1500 kN
Opening stroke: 600 mm
Distance between bars: 500 x 500 mm
Size of mold platens: 780 x 790 mm
Ejector stroke: 150 mm
Ejector force for / back: 22/11 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Mould opening force: 86 kn
- - Mould installation height: 300 mm
- - Opening width: 900 mm
- - L/d ratio: 20 mm
- - Nozzle contact force: 110 kn
- - Net weight with control cabinet: 8 tonnes

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
