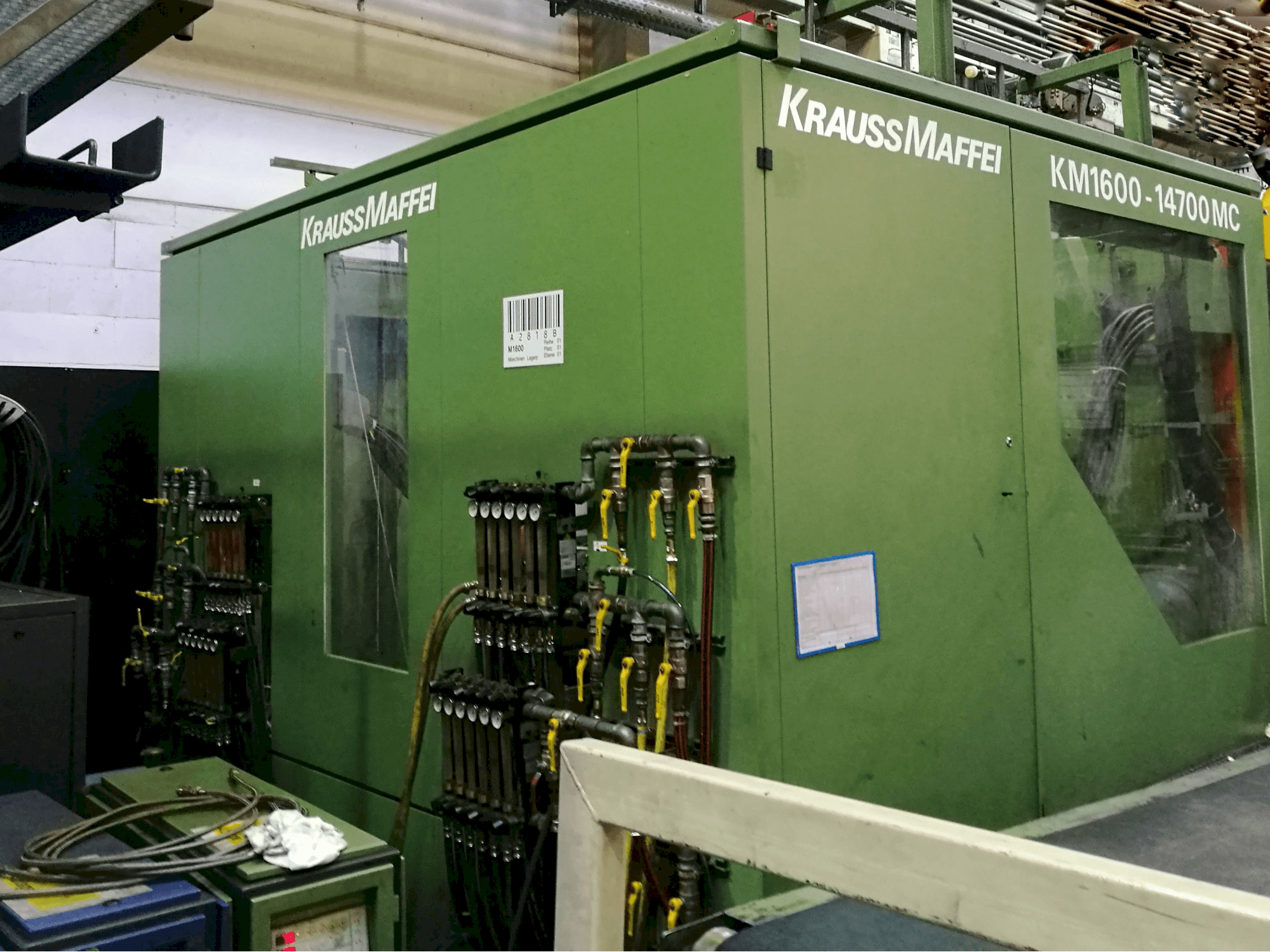

Krauss Maffei KM 1600-14700 MC Injection Moulding Machine

This Krauss Maffei KM 1600-14700 MC Injection Moulding Machine was manufactured in 1999 in Germany and has a production time of 69800 working hours. This model is operated through a Control unit of the same brand and counts with a clamping force of 16000 kN and an injection pressure of 1931 bar.

Overview

brand: Krauss Maffei
year: 1999
MODEL: KM 1600-14700 MC
production hours: 69800
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei KM 1600-14700 MC

General Data

Measurements width: 13360 mm
Measurements depth: 3850 mm
Measurements height: 2835 mm
Machine weight: 120000 kg

Control Unit

CNC main language: German
CNC language customizable: Yes
Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 130 mm
Shot weight: 6945 g/PS
Stroke volume: 7632 cm³
Injection pressure: 1931 bar
Plasticizing rate max.: 227 g/s PS
Screw speed: 80-120 1/min
Heating capacity: 91 kW
Adjustable heating zones: 7
Nozzle pressure: 246 bar

Clamping unit

Clamping force: 16000 kN
Opening stroke: 2500 mm
Max open daylight: 3400 mm
Distance between bars: 1800x1400 mm
Mould height min: 900 mm
Mould height max: 1600 mm
Size of mold platens: 2630x2250 mm
Ejector stroke: 300 mm
Ejector force for / back: 380/197 kN

Media

Main electronic connection: 400 V

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
