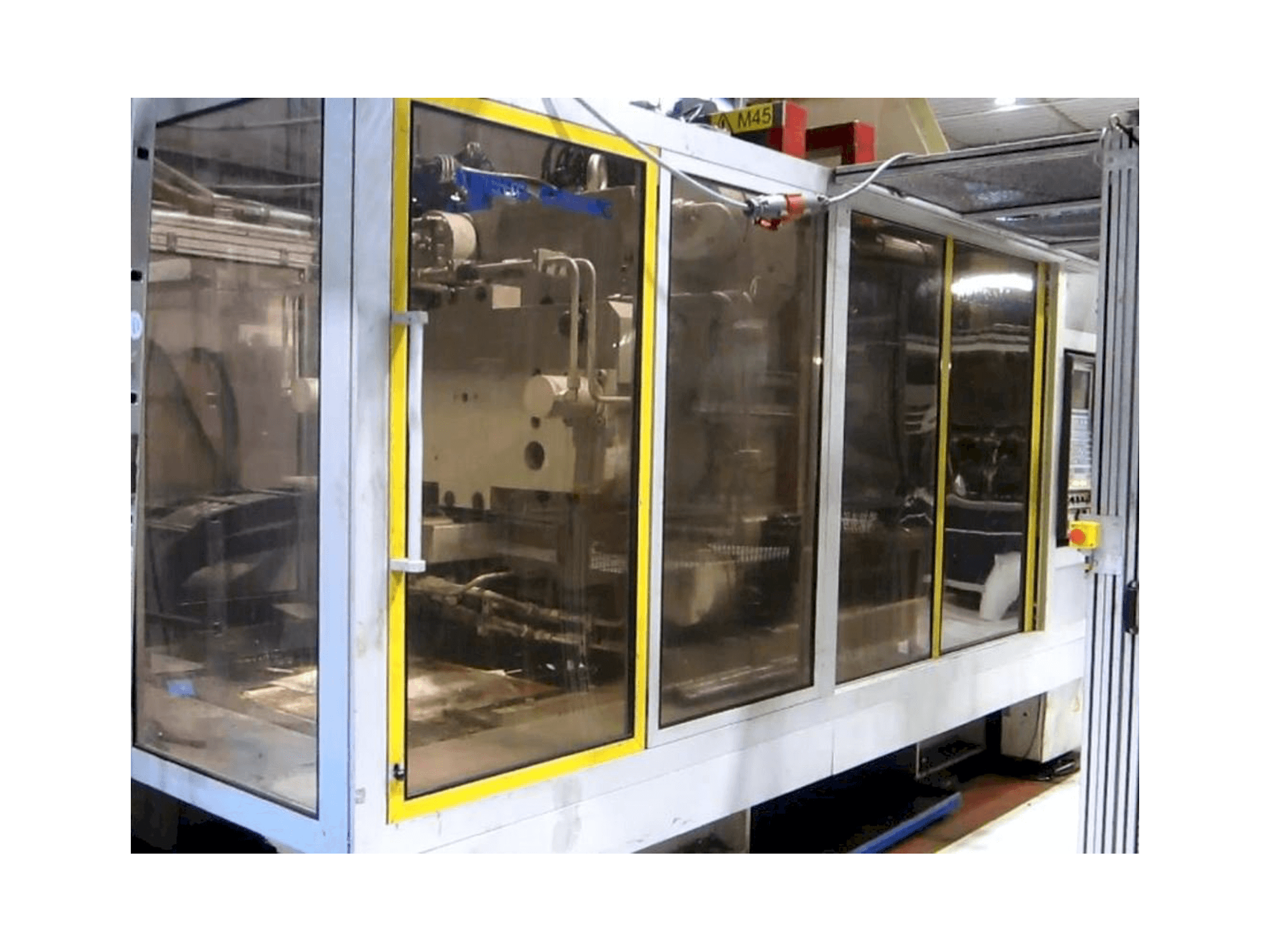

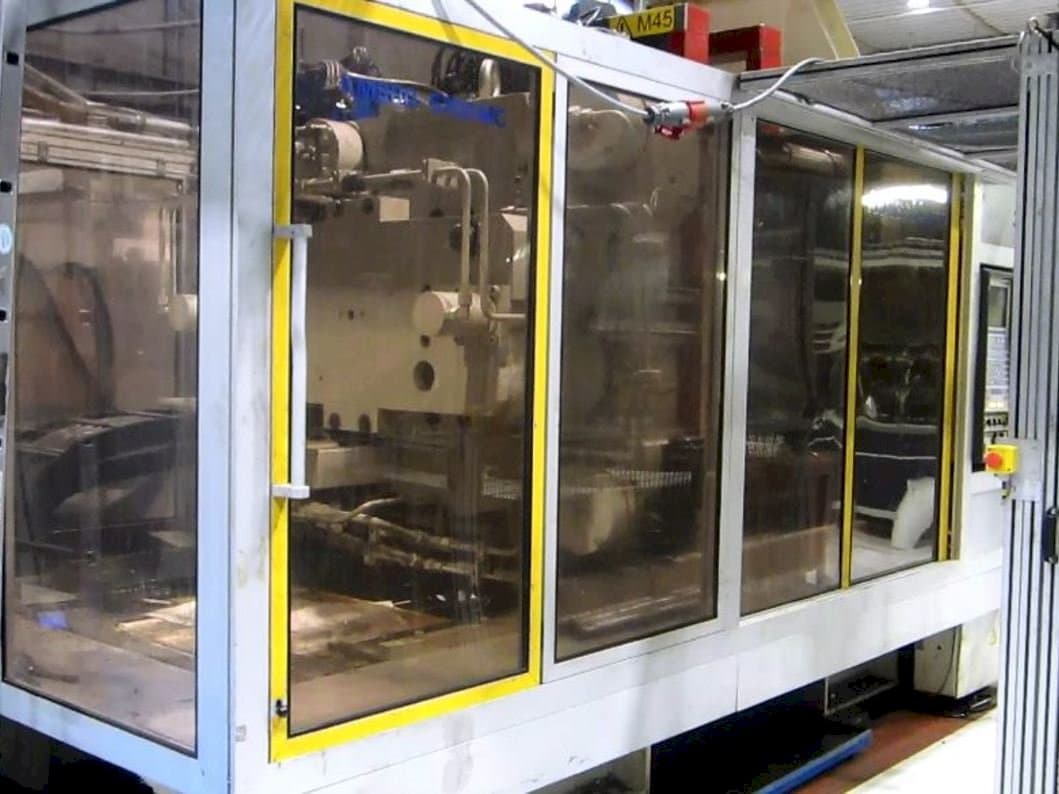

Krauss Maffei KM 800/5700 MC Injection Moulding Machine

This Krauss Maffei KM 800/5700 MC Injection Moulding Machine was manufactured in the year 2000. It has 78115 production hours. This machine operates with a clamping force 8000 kN, a screw diameter 115 mm, and an ejection stroke 250 mm. It is operated with a control unit of the same brand.

Overview

brand: Krauss Maffei
year: 2000
MODEL: KM 800/5700 MC
production hours: 78115
application type: Injection Moulding
Location: France
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Krauss Maffei KM 800/5700 MC

Injection Unit

Screw diameter: 115 mm
Injection pressure: 1318 bar

Clamping unit

Clamping force: 8000 kN
Ejector stroke: 250 mm

Additional Equipment

- Hot runners : 20 zones
- 4 core pull in mobile platen
- 3 core pull in fix platen

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Injection volume max : 4331 cm3
- - Platen dimension : 1600 x 1510 mm
- - Distance between tie bar : 1120 x 1000 mm
- - Mould thickness min / max : 600 mm / 1100 mm
- - Opening stroke max : 1400 mm
- - Distance max between platen : 2000 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
