KUKA - KR4 R600DE-ROB-KUK-2024-00001

Name: KUKA KR4 R600
Brand: KUKA
SKU: DE-ROB-KUK-2024-00001
Price: 17000 EUR
Availability: InStock

17,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Automation Equipment
➤ Used KUKA KR4 R600 - Robot Arm For Sale | gindumac.com

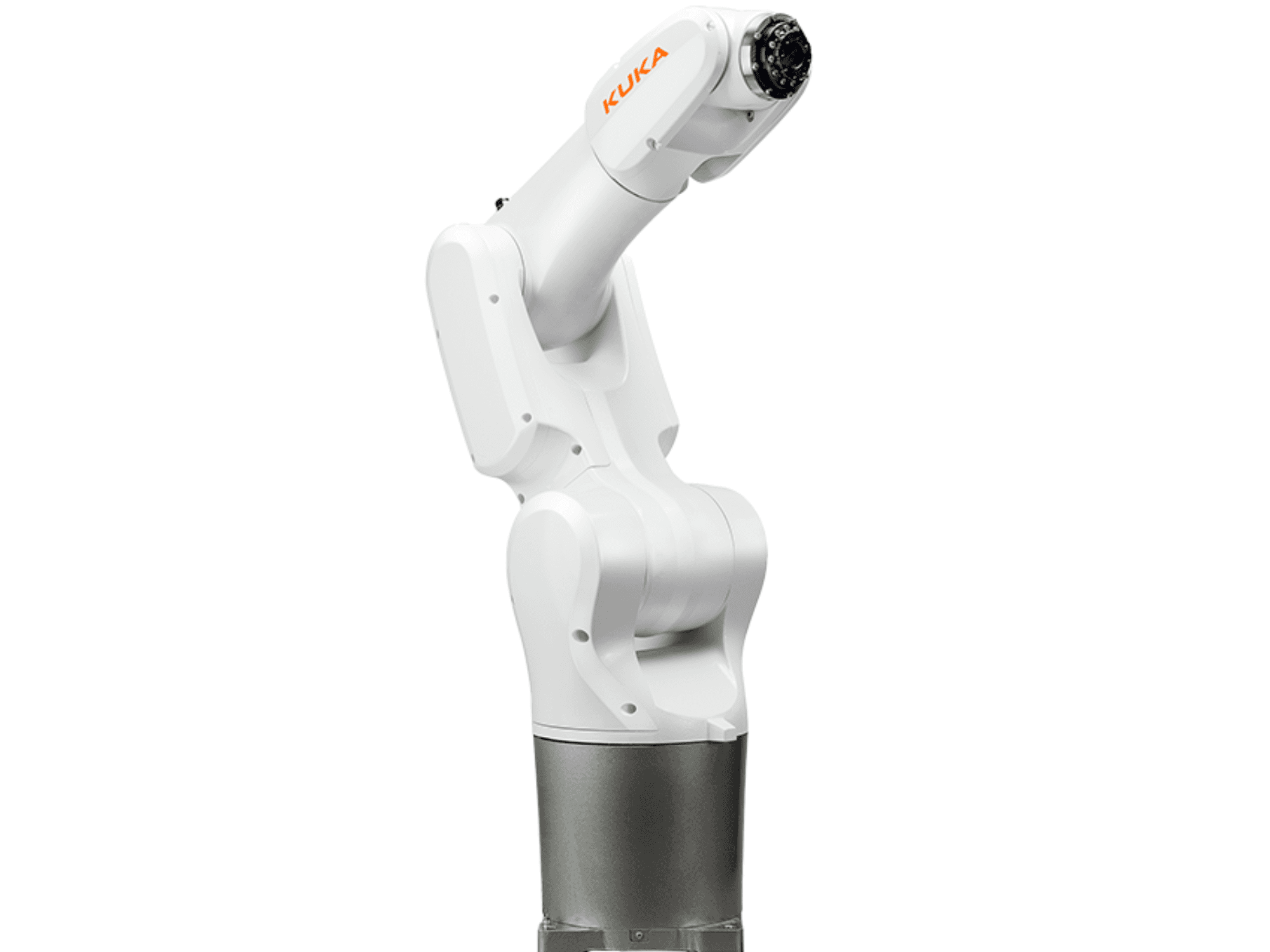

This 6-axis KUKA KR4 R600 robot arm was manufactured in 2024. It features a maximum reach of 601 mm and can handle loads up to 4.63 kg. The compact design, with an installation area of 179 mm x 179 mm and a weight of approximately 27 kg, makes it ideal for various applications. If you are looking to get high-quality robotic capabilities, consider the KUKA KR4 R600 machine we have for sale. Contact us for more information.

Overview

brand: KUKA
year: 2024
MODEL: KR4 R600
production hours: 0
application type: Robotics
Location: Germany
machine type: Robot Arm
availability: Immediately
control unit brand: KUKA

Technical Information - KUKA KR4 R600

General Data

Machine weight: 27 kg

Control Unit

Brand: KUKA
Model: KRC5 micro

Main drive

Number of axis: 6

Table

Table load: 4.63 kg

Additional Equipment

- Kuka smartPAD-2 10m
- Kuka smartPAD holder flexible
- Cable set INT+3m air CTR
- Circuit diagram layout: Standard IEC
- Servo configuration: micro 6 axes
- System board power: 4/4GB M.2
- Interface board: standard (IFB-STD)
- Cable: 2m CON UPS

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum reach: 601 mm
- - Position repeatability (iso 9283): ± 0. 015 m
- - Range of movement: a1: ±170 ° a2: -195 ° / 40 ° a3: -115 ° / 150° a4: ±185 ° a5: ±120 ° a6: ±350 °
- - Installation area: 179 mm x 179 mm
- - Ambient temperature during operation: 0 °c to 55 °c

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
