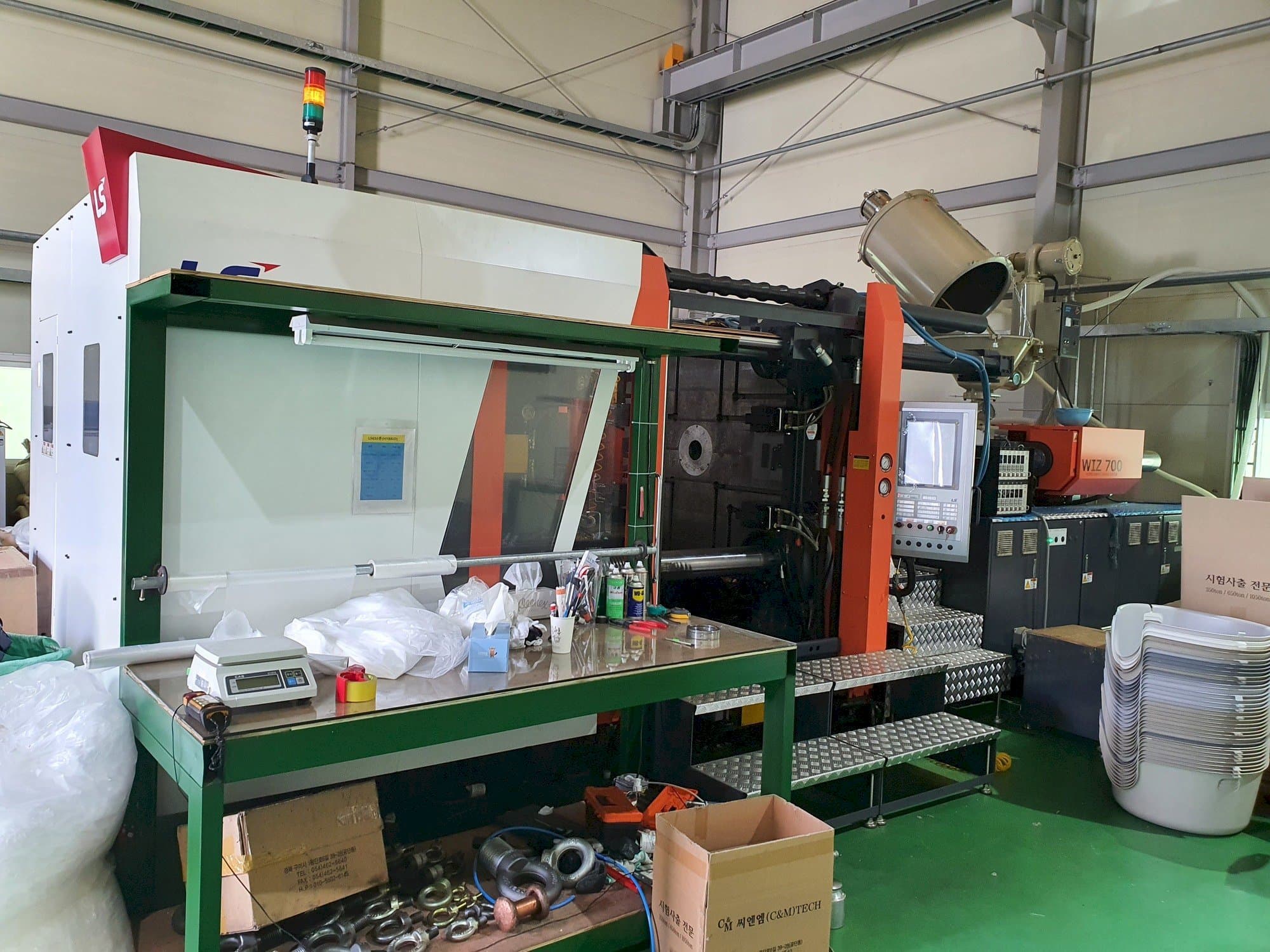

LS MTRON WIZ700 Injection Moulding Machine

This LS MTRON WIZ700 Injection Moulding Machine was made in the year 2019. This machine is capable of operating with a clamping force 6377 kN, clamping stoke between 700 - 1350 mm, mold thickness 450 - 1100 mm and a screw diameter 90 mm.

Overview

brand: LS MTRON
year: 2019
MODEL: WIZ700
application type: Injection Moulding
Location: South Korea
machine type: Electrical Injection Moulding Machine
availability: Sold

Technical Information - LS MTRON WIZ700

General Data

Measurements width: 8400 mm
Measurements depth: 2700 mm
Measurements height: 2500 mm
Machine weight: 31000 kg

Injection Unit

Screw diameter: 90 mm
Stroke volume: 495 mm CM³
Injection pressure: 3147 BAR
Plasticizing rate max.: 114 g/sec
Screw speed: 140 rpm
Heating capacity: 39.6 kw

Clamping unit

Clamping force: 6377 kN
Opening stroke: 700 - 1350 mm
Max open daylight: 1800 mm
Distance between bars: 1000 x 1000 mm
Ejector stroke: 250 mm
Ejector force for / back: 182 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Mold closing speed 60 m/min
- - Mold opening speed 49. 4 mm
- - Injection speed 118 mm/sec
- - Mold opening force: 1197 kn
- - Platen size (h x v): 1440 x 1440 mm
- - Mold thickness: 450 - 1100 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
