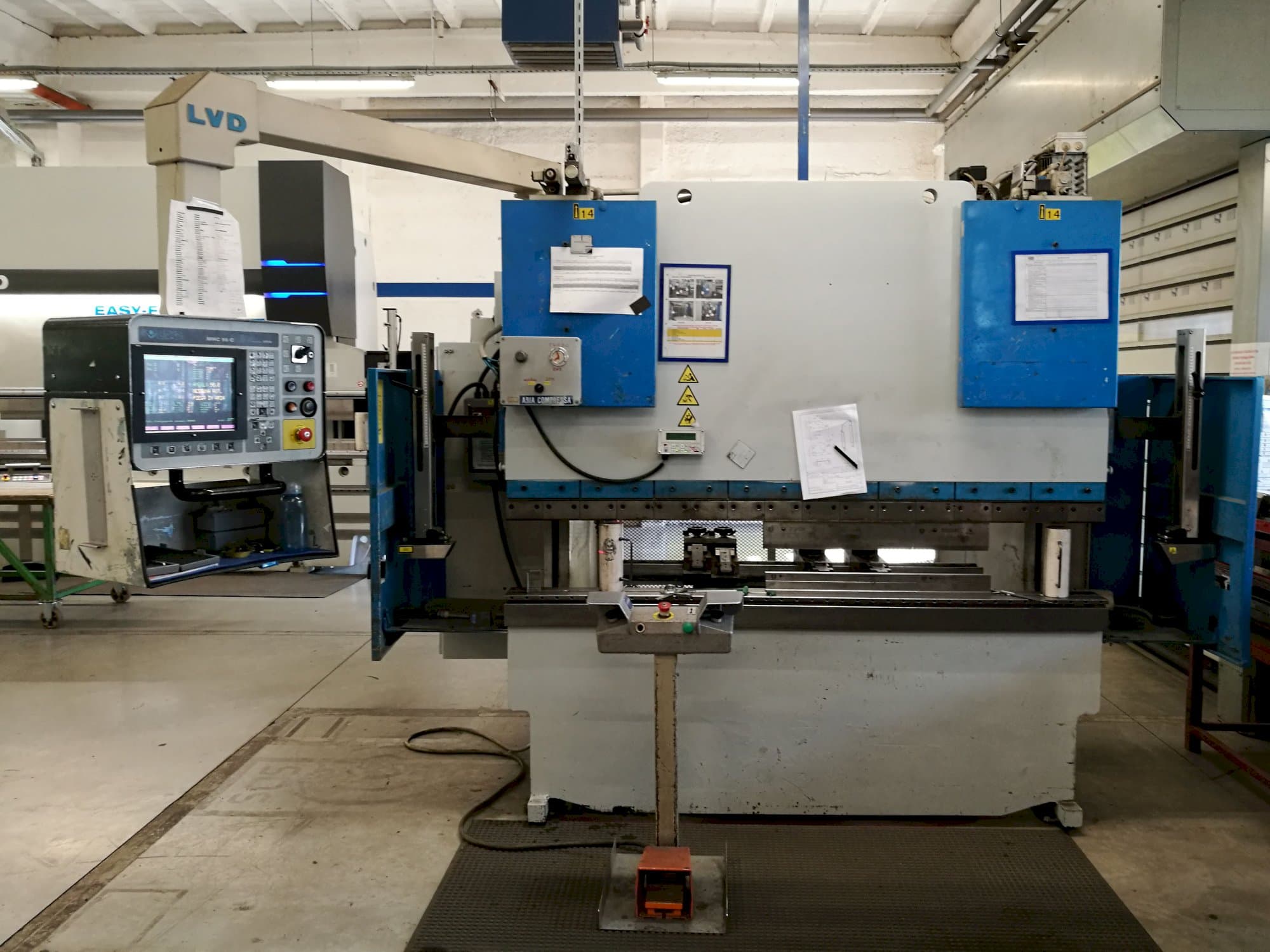

LVD PPEB 50/20 MNC 95 Bending Machine

This LVD PPEB 50/20 MNC 95 Bending Machine from Belgium, built 1991, has a production history of 57952 working hours since then. Equipped with a LVD MNC 95/C Control unit, this model offers a pressing force of 500 kN. During the past, this machine has mainly worked with galvanized steel sheets up to 3 mm of thickness. Several additional equipment is included within the machine, except for the Lasersafe gates.

Overview

brand: LVD
year: 1991
MODEL: PPEB 50/20 MNC 95
production hours: 57952
application type: Bending
Location: Hungary
machine type: Press Brake
availability: Sold

Technical Information - LVD PPEB 50/20 MNC 95

General Data

Measurements width: 2500 mm
Measurements depth: 2000 mm
Measurements height: 2500 mm
Machine weight: 4000 kg

Control Unit

Model: MNC 95/C
CNC main language: Italian/ English

Main drive

Pressing force: 500 kN
Bending length: 2000 mm
Throat: 250 mm
Distance between bars: 1640 mm
Main motor power: 7.5 kW
Stroke: 125 mm

Movement

Y-AXIS Working Feed: 14.7 mm/sec
Y-AXIS Rapid traverse: 100 mm/sec

Max Material thickness

Steel: 25 mm

Media

Main electronic connection: 380 V / 50 Hz
Power consumption: 8.5 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
