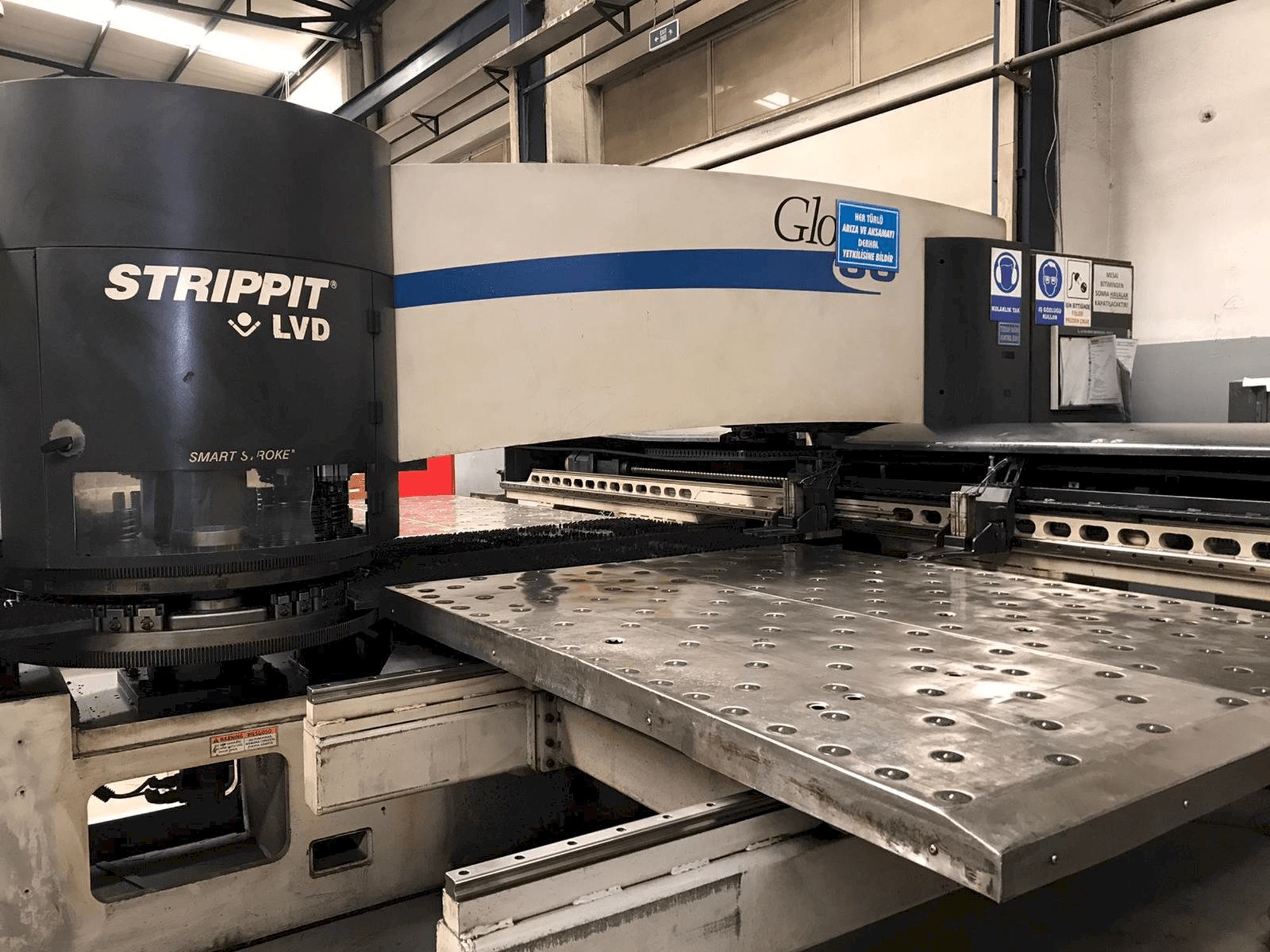

LVD STRIPPIT Global 30 1525

This LVD STRIPPIT Global 30 1525 Punching Machine was built in 2005 in the United States. It shows 54752 hours, of which 207 are cutting hours. This model stands out due to its table capacity ball-brush combo with a work piece mass 100kg at any speed and for its table capacity all brush with a thickness 3.5 stl and 6.35 al.

Overview

brand: LVD
year: 2005
MODEL: STRIPPIT Global 30 1525
production hours: 207
application type: Punching
Location: Turkey
machine type: CNC Punch Press
availability: Sold

Technical Information - LVD STRIPPIT Global 30 1525

General Data

Measurements width: 5164 mm
Measurements depth: 6133 mm
Measurements height: 2330 mm
Machine weight: 15600 kg

Movement

X-AXIS Movement: 2576.2 mm
Y-AXIS Movement: 1611.1 mm

Workpiece

Workpiece weight: 85 kg

Table

Table load: 100 kg at any speed 146 kg at 50% speed

Tools

Number of stations: 30 stations (long tool) 30 stations (short tool)

Max Material thickness

Steel: 3.5 mm
Aluminum: 6.35 mm

Media

Main electronic connection: 400 v 50 hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tonnage 30 metric tons
- - Shut height short tool 137. 31 mm
- - Shut height long tool 205 mm
- - Feed clearance 21 mm
- - Normal (up to) 1524 x 2500 mm
- - W/prog move 1524 x 4064 mm
- - Part chute (y,x) 450 x 500 mm
- - 88. 9 mm dia in 2 mm mild steel
- - 44. 5 mm dia in 6 mm mild steel
- - Accuracy ±0. 1 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
