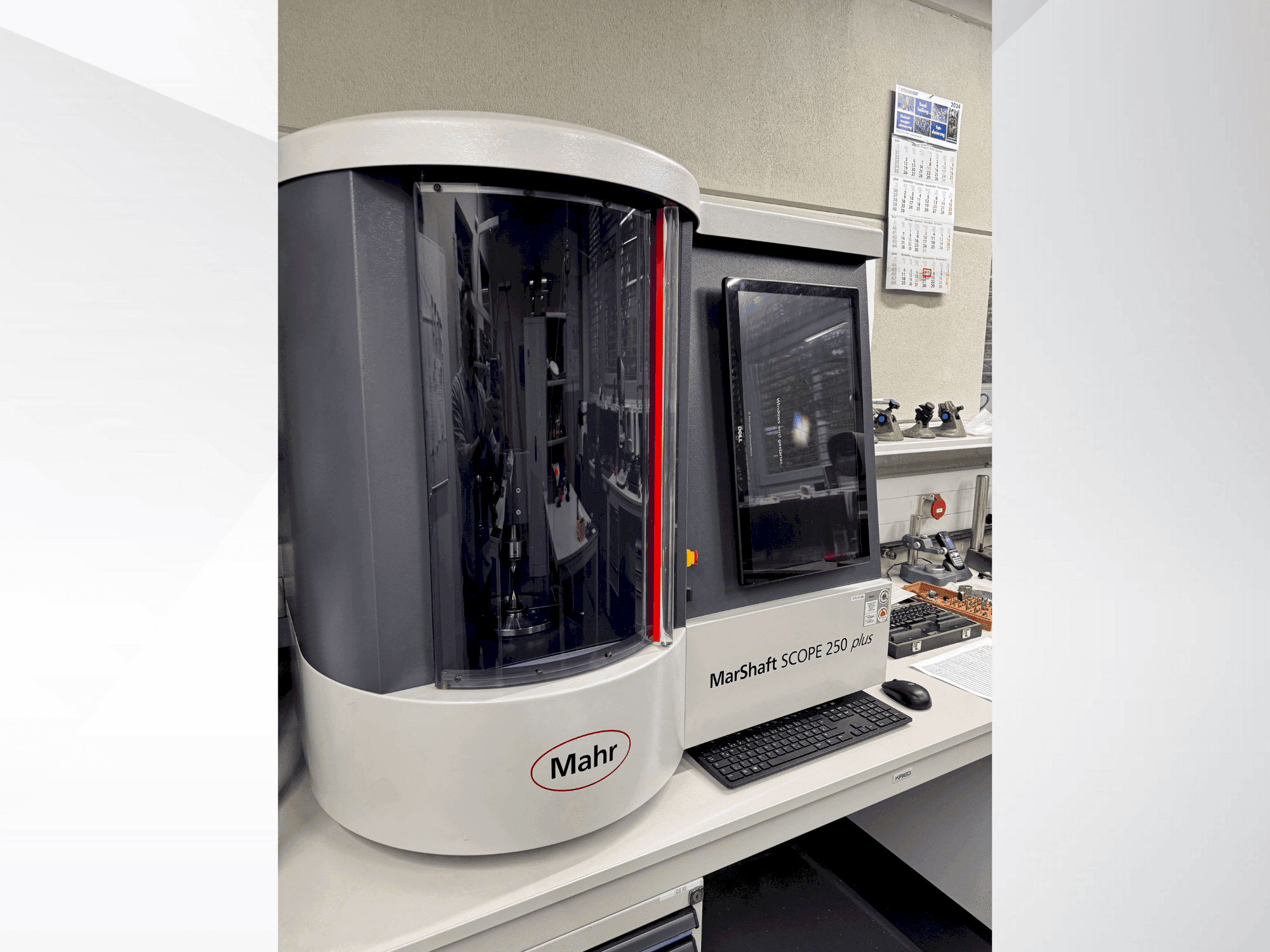

➤ Used MAHR MahrShaft SCOPE 250 plus | Optical Measuring

This optical measurement machine was manufactured in 2018. The MAHR MahrShaft SCOPE 250 plus features a high-resolution CMOS matrix camera, integrated 21" touchscreen monitor, and a CNC MarEcon control system. It supports a measuring length of 250 mm and can handle workpieces up to 100 mm in diameter and 5 kg in weight. If you are looking to get high-quality measurement capabilities, consider the MAHR MahrShaft SCOPE 250 plus machine we have for sale. Contact us for more information.

Overview

brand: MAHR
year: 2018
MODEL: MahrShaft SCOPE 250 plus
application type: Measuring
Location: Germany
machine type: Optical Measurement Machine
availability: Immediately
control unit brand: CNC MarEcon control system

Technical Information - MAHR MahrShaft SCOPE 250 plus

General Data

Measurements width: 592 mm
Measurements depth: 1054 mm
Measurements height: 952 mm
Machine weight: 125 kg

Control Unit

Brand: CNC MarEcon control system

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Integrated pc with intel quad core cpu / windows 10 iot x64 / integrated 21" touchscreen monitor / dvd drive, network interface, 4 usb ports, 1 displayport
- - Max workpiece diameter: 100 mm / max workpiece weight: 5 kg
- - Measuring length: 250 mm / measuring diameter: 0. 2 to 40 mm / length error limit: 3 µm + l/100 (l in mm) / diameter error limit: 1. 5 µm + l/40 (l in mm)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
